Android同步屏障(SyncBarrier)深度解析与应用实战

作者:时小雨

掌握同步屏障机制,让你的应用流畅度提升一个量级!本文从底层原理到实战应用,全面解析Android消息机制中的关键优化技术,需要的朋友可以参考下

一、同步屏障核心概念

1.1 什么是同步屏障?

同步屏障是一种特殊的消息调度机制,通过在消息队列中插入一个"屏障",临时阻塞普通同步消息,优先处理高优先级的异步消息(如UI绘制、输入事件等)。

消息类型对比

消息类型标记方式优先级典型应用场景
普通同步消息默认常规业务逻辑
异步消息setAsynchronous(true)UI绘制、输入事件
屏障消息target=null最高临时阻塞同步消息

1.2 核心价值

二、工作原理深度剖析

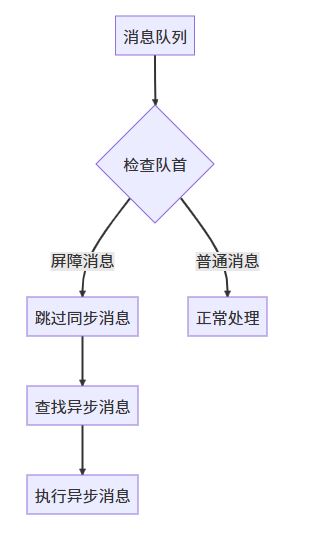

2.1 消息队列处理流程图

2.2 关键源码解析(MessageQueue.java)

Message next() {
    for (;;) {
        // 1. 发现屏障消息(target==null)
        if (msg != null && msg.target == null) {
            do {
                prevMsg = msg;
                msg = msg.next;
            // 2. 跳过所有同步消息
            } while (msg != null && !msg.isAsynchronous());
        }

        // 3. 优先执行异步消息
        if (msg != null) {
            return msg;
        }
    }
}

三、典型应用场景与完整实现

3.1 场景1:UI渲染优化(View绘制流程)

class CustomView @JvmOverloads constructor(
    context: Context,
    attrs: AttributeSet? = null
) : View(context, attrs) {

    private val handler = Handler(Looper.getMainLooper())
    private var barrierToken: Int = 0

    // 启动绘制流程
    fun scheduleDrawing() {
        // 1. 插入同步屏障
        try {
            val queue = Looper.getMainLooper().queue
            val method = queue.javaClass.getDeclaredMethod("postSyncBarrier")
            barrierToken = method.invoke(queue) as Int
        } catch (e: Exception) {
            Log.e("SyncBarrier", "Failed to post barrier", e)
        }

        // 2. 发送异步绘制任务
        val asyncMsg = Message.obtain().apply {
            what = MSG_DRAW
            isAsynchronous = true
        }
        handler.sendMessageDelayed(asyncMsg, 0)
    }

    // 移除屏障
    fun completeDrawing() {
        try {
            val queue = Looper.getMainLooper().queue
            val method = queue.javaClass.getDeclaredMethod(
                "removeSyncBarrier",
                Int::class.javaPrimitiveType
            )
            method.invoke(queue, barrierToken)
        } catch (e: Exception) {
            Log.e("SyncBarrier", "Failed to remove barrier", e)
        }
    }

    companion object {
        private const val MSG_DRAW = 1
    }
}

3.2 场景2:高优先级任务处理(ANR监控)

class ANRMonitor(private val timeout: Long = 5000) {

    private val mainHandler = Handler(Looper.getMainLooper())
    private var barrierToken = 0

    fun start() {
        // 插入同步屏障
        barrierToken = postSyncBarrier()

        // 发送高优先级检测任务
        mainHandler.postDelayed({
            if (!taskCompleted) {
                // ANR发生!
                reportANR()
            }
            removeSyncBarrier(barrierToken)
        }, timeout).apply {
            setAsynchronous(true)
        }
    }

    // 反射实现屏障操作
    private fun postSyncBarrier(): Int {
        return try {
            val queue = Looper.getMainLooper().queue
            val method = queue.javaClass.getDeclaredMethod("postSyncBarrier")
            method.invoke(queue) as Int
        } catch (e: Exception) {
            -1
        }
    }
}

四、完整实战示例:自定义消息调度

class SyncBarrierDemo {

    fun demonstrate() {
        // 创建带Looper的线程
        val thread = HandlerThread("SyncBarrierDemo").apply { start() }
        val handler = Handler(thread.looper)

        // 1. 发送普通消息
        handler.post { log("普通消息1") }
        handler.post { log("普通消息2") }

        // 2. 插入同步屏障
        val token = postSyncBarrier(thread.looper)

        // 3. 发送异步消息
        handler.post {
            Message.obtain().apply {
                isAsynchronous = true
                handler.sendMessage(this)
            }
            log("===== 异步消息执行 =====")
        }

        // 4. 再发送普通消息
        handler.post { log("普通消息3") }

        // 5. 移除屏障
        Handler(Looper.getMainLooper()).postDelayed({
            removeSyncBarrier(thread.looper, token)
        }, 1000)
    }

    private fun postSyncBarrier(looper: Looper): Int {
        return try {
            val queue = looper.queue
            val method = queue.javaClass.getDeclaredMethod("postSyncBarrier")
            method.invoke(queue) as Int
        } catch (e: Exception) {
            -1
        }
    }

    private fun removeSyncBarrier(looper: Looper, token: Int) {
        try {
            val queue = looper.queue
            val method = queue.javaClass.getDeclaredMethod(
                "removeSyncBarrier",
                Int::class.javaPrimitiveType
            )
            method.invoke(queue, token)
        } catch (e: Exception) {
            // 处理异常
        }
    }

    private fun log(msg: String) {
        Log.d("SyncBarrier", "[${Thread.currentThread().name}] $msg")
    }
}

执行结果

 普通消息1
 普通消息2
 ===== 异步消息执行 =====
 普通消息3

五、关键API与注意事项

5.1 核心API说明

方法作用系统限制
MessageQueue.postSyncBarrier()插入屏障,返回token@hide
MessageQueue.removeSyncBarrier(token)移除屏障@hide
Message.setAsynchronous(true)标记异步消息SDK>=22

5.2 避坑指南

屏障必须成对使用

// 正确写法
val token = postSyncBarrier()
try {
    // 执行异步任务
} finally {
    removeSyncBarrier(token)
}

版本兼容处理

fun setMessageAsync(msg: Message) {
    if (Build.VERSION.SDK_INT >= 22) {
        msg.isAsynchronous = true
    } else {
        // 低版本备用方案
    }
}

避免主线程滥用

六、设计意义与性能优化

6.1 系统级优化价值

渲染流水线保障

VSYNC信号 → 插入屏障 → 执行绘制 → 移除屏障

60fps流畅度保障

输入响应优化

6.2 高级应用场景

自定义事件总线

class PriorityEventBus {
    private val barrierMap = ConcurrentHashMap<Class<*>, Int>()

    fun postHighPriority(event: Any) {
        val eventType = event.javaClass
        barrierMap[eventType] = postSyncBarrier()
        // 发送异步事件...
    }

    fun complete(event: Any) {
        barrierMap[event.javaClass]?.let {
            removeSyncBarrier(it)
        }
    }
}

关键帧动画保障

fun renderAnimationFrame() {
    postSyncBarrier()
    val startTime = SystemClock.uptimeMillis()
    renderFrame() // 异步执行
    postDelayed({
        removeSyncBarrier()
    }, 16 - (SystemClock.uptimeMillis() - startTime))
}

七、总结与最佳实践

7.1 核心要点

  1. 屏障本质:target=null的特殊消息,临时阻塞同步消息
  2. 执行顺序:屏障消息 > 异步消息 > 同步消息
  3. 黄金法则:每次postSyncBarrier()必须对应removeSyncBarrier()

7.2 使用原则

适用场景

避免场景

7.3 未来演进

随着Android版本迭代,同步屏障机制正在向更精细化的调度发展:

  1. Android 12+:新增FrameCommitCallback替代部分屏障场景
  2. Choreographer改进:自动屏障管理简化开发
  3. 硬件加速:与RenderThread深度整合

最佳实践建议:优先使用系统封装好的框架(如Choreographer),仅在性能关键路径考虑手动控制同步屏障,并始终做好异常防护。

通过合理使用同步屏障机制,开发者可显著提升应用流畅度,特别是在复杂UI和动画场景中,这一技术将成为高性能应用的秘密武器。

附录:完整工具类实现

object SyncBarrierUtil {

    /**
     * 安全执行高优先级任务
     * @param block 需要优先执行的任务
     * @param looper 目标Looper(默认主线程)
     */
    fun executeWithPriority(block: () -> Unit, looper: Looper = Looper.getMainLooper()) {
        val token = postSyncBarrier(looper)
        try {
            Handler(looper).post {
                Message.obtain().apply {
                    isAsynchronous = true
                }
                block()
            }
        } finally {
            removeSyncBarrier(looper, token)
        }
    }

    private fun postSyncBarrier(looper: Looper): Int {
        return try {
            val queue = looper.queue
            val method = queue.javaClass.getDeclaredMethod("postSyncBarrier")
            method.invoke(queue) as Int
        } catch (e: Exception) {
            -1
        }
    }

    private fun removeSyncBarrier(looper: Looper, token: Int) {
        if (token == -1) return
        try {
            val queue = looper.queue
            val method = queue.javaClass.getDeclaredMethod(
                "removeSyncBarrier",
                Int::class.javaPrimitiveType
            )
            method.invoke(queue, token)
        } catch (e: Exception) {
            // 处理异常
        }
    }
}

以上就是Android同步屏障(SyncBarrier)深度解析与应用实战的详细内容,更多关于Android同步屏障SyncBarrier的资料请关注脚本之家其它相关文章!
