更换k8s容器运行时环境为docker的过程
作者：my_qq_990814268
这篇文章主要介绍了更换k8s容器运行时环境为docker的过程,具有很好的参考价值,希望对大家有所帮助,如有错误或未考虑完全的地方,望不吝赐教
更换k8s容器运行时环境为docker
k8s-V1.24之后容器运行时默认是containerd，若想改为熟悉的docker作为运行时，需要做以下操作
- 在每个节点安装containerd、docker;
- 每个节点安装cri-docker；
- 调整kubelet配置并重启验证。
1.安装docker、containerd服务
# 安装docker和containerd
# 二进制包下载地址：https://download.docker.com/linux/static/stable/x86_64/
# wget https://download.docker.com/linux/static/stable/x86_64/docker-24.0.2.tgz
#解压
tar xf docker-*.tgz
#拷贝二进制文件
cp docker/* /usr/bin/
#创建containerd的service文件,并且启动
cat >/etc/systemd/system/containerd.service <<EOF
[Unit]
Description=containerd container runtime
Documentation=https://containerd.io
After=network.target local-fs.target
[Service]
ExecStartPre=-/sbin/modprobe overlay
ExecStart=/usr/bin/containerd
Type=notify
Delegate=yes
KillMode=process
Restart=always
RestartSec=5
LimitNPROC=infinity
LimitCORE=infinity
LimitNOFILE=1048576
TasksMax=infinity
OOMScoreAdjust=-999
[Install]
WantedBy=multi-user.target
EOF
# 设置开机自启
systemctl enable --now containerd.service
systemctl status containerd.service
#准备docker的service文件
cat > /etc/systemd/system/docker.service <<EOF
[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service docker.socket containerd.service
Wants=network-online.target
Requires=docker.socket containerd.service
[Service]
Type=notify
ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always
StartLimitBurst=3
StartLimitInterval=60s
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
TasksMax=infinity
Delegate=yes
KillMode=process
OOMScoreAdjust=-500
[Install]
WantedBy=multi-user.target
EOF
#准备docker的socket文件
cat > /etc/systemd/system/docker.socket <<EOF
[Unit]
Description=Docker Socket for the API
[Socket]
ListenStream=/var/run/docker.sock
SocketMode=0660
SocketUser=root
SocketGroup=docker
[Install]
WantedBy=sockets.target
EOF
#创建docker组
groupadd docker
#启动docker
systemctl enable --now docker.socket && systemctl enable --now docker.service
#验证

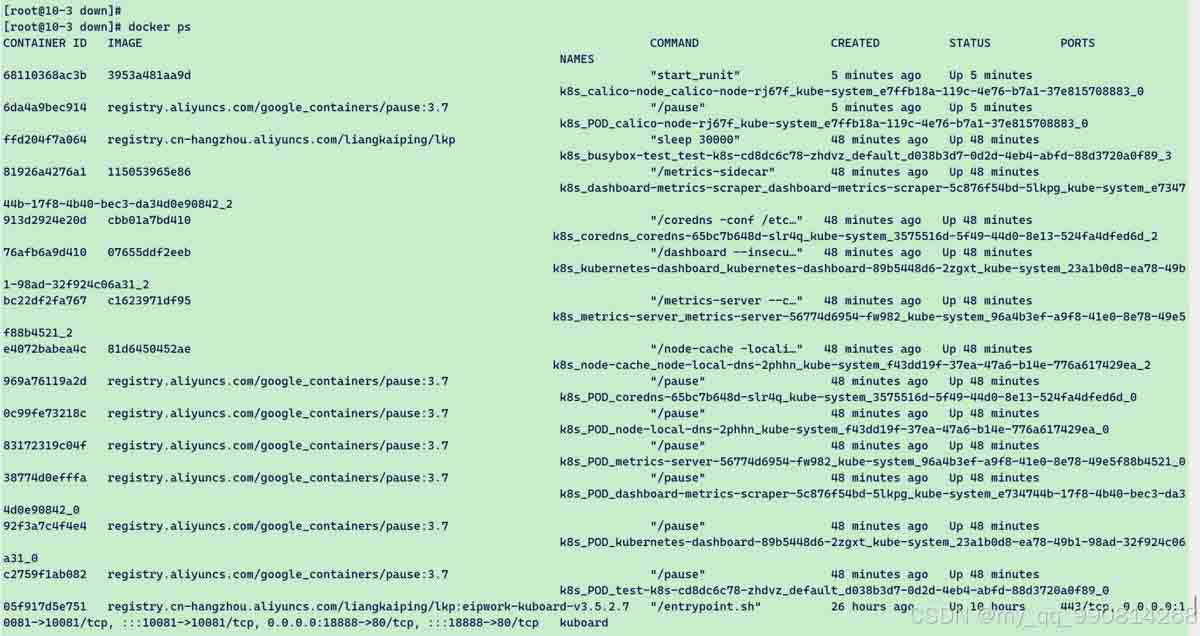

docker info
# 配置加速器
mkdir /etc/docker/ -pv
cat >/etc/docker/daemon.json <<EOF
{
"exec-opts": ["native.cgroupdriver=systemd"],
"registry-mirrors": [
"https://docker.m.daocloud.io",
"https://docker.mirrors.ustc.edu.cn",
"http://hub-mirror.c.163.com"
],
"max-concurrent-downloads": 10,
"log-driver": "json-file",
"log-level": "warn",
"log-opts": {
"max-size": "10m",
"max-file": "3"
},
"data-root": "/var/lib/docker"
}
EOF
systemctl daemon-reload
systemctl stop docker
systemctl restart docker2.安装cri-docker
# 由于1.24以及更高版本不支持docker所以安装cri-docker,kubelet可以通过cri-docker间接编排容器 # 下载cri-docker # wget https://mirrors.chenby.cn/https://github.com/Mirantis/cri-dockerd/releases/download/v0.3.3/cri-dockerd-0.3.3.amd64.tgz # 解压cri-docker tar xvf cri-dockerd-*.amd64.tgz cp -r cri-dockerd/ /usr/bin/ chmod +x /usr/bin/cri-dockerd/cri-dockerd # 写入启动配置文件 cat > /usr/lib/systemd/system/cri-docker.service <<EOF [Unit] Description=CRI Interface for Docker Application Container Engine Documentation=https://docs.mirantis.com After=network-online.target firewalld.service Wants=network-online.target Requires=cri-docker.socket [Service] Type=notify ExecStart=/usr/bin/cri-dockerd/cri-dockerd --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.7 ExecReload=/bin/kill -s HUP $MAINPID TimeoutSec=0 RestartSec=2 Restart=always StartLimitBurst=3 StartLimitInterval=60s LimitNOFILE=infinity LimitNPROC=infinity LimitCORE=infinity TasksMax=infinity Delegate=yes KillMode=process [Install] WantedBy=multi-user.target EOF # 写入socket配置文件 cat > /usr/lib/systemd/system/cri-docker.socket <<EOF [Unit] Description=CRI Docker Socket for the API PartOf=cri-docker.service [Socket] ListenStream=%t/cri-dockerd.sock SocketMode=0660 SocketUser=root SocketGroup=docker [Install] WantedBy=sockets.target EOF # 进行启动cri-docker systemctl daemon-reload systemctl enable cri-docker --now systemctl restart cri-docker systemctl status cri-docker
3.调整kubelet配置，并重启验证

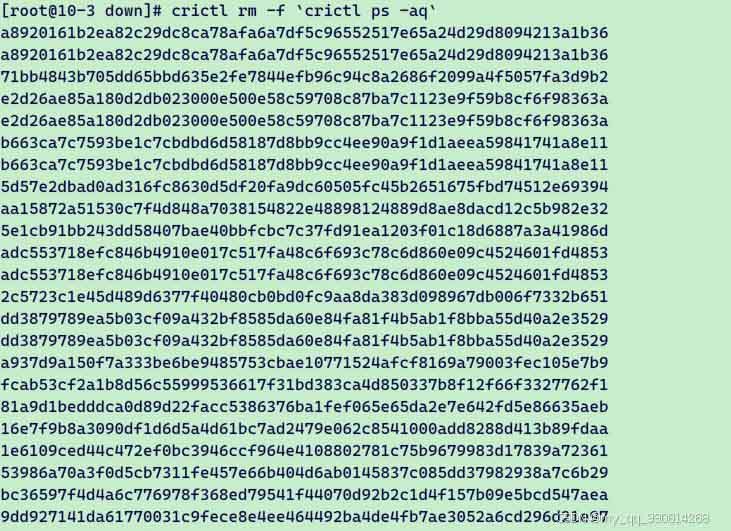

#注释掉原来的配置，改为：--container-runtime-endpoint=unix:///run/cri-dockerd.sock \ cat /etc/systemd/system/kubelet.service [Unit] Description=Kubernetes Kubelet Documentation=https://github.com/GoogleCloudPlatform/kubernetes [Service] WorkingDirectory=/var/lib/kubelet ExecStartPre=/bin/mount -o remount,rw '/sys/fs/cgroup' ExecStart=/opt/kube/bin/kubelet \ --config=/var/lib/kubelet/config.yaml \ # --container-runtime-endpoint=unix:///run/containerd/containerd.sock \ --container-runtime-endpoint=unix:///run/cri-dockerd.sock \ --hostname-override=10.10.10.3 \ --kubeconfig=/etc/kubernetes/kubelet.kubeconfig \ --root-dir=/var/lib/kubelet \ --v=2 Restart=always RestartSec=5 [Install] WantedBy=multi-user.target systemctl daemon-reload systemctl restart kubelet # 验证： [root@10-3 down]# kubectl get node -owide NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME 10.10.10.3 Ready master 26h v1.27.16 10.10.10.3 <none> openEuler 22.03 (LTS-SP3) 5.10.0-182.0.0.95.oe2203sp3.x86_64 docker://24.0.5 k8s-node01 Ready node 8h v1.27.16 10.10.10.4 <none> openEuler 22.03 (LTS-SP3) 5.10.0-182.0.0.95.oe2203sp3.x86_64 docker://24.0.5 #删除节点上的历史容器 crictl rm -f `crictl ps -aq`
总结
以上为个人经验，希望能给大家一个参考，也希望大家多多支持脚本之家。
