Nginx安装及启动全过程

作者:niechel

文章简要介绍了Nginx的安装、编译、配置及配置模块等内容,包括配置Nginx的访问地址、依赖组件、编译路径以及服务管理配置等,同时详细说明了Nginx模块的作用和配置选项,帮助用户顺利搭建Nginx服务器

一 Nginx yum安装

1.1 前置准备

  1 [root@nginx01 ~]# systemctl status firewalld.service	#检查防火墙
  2 [root@nginx01 ~]# getenforce				#检查SELinux
  3 Disabled

提示:建议关闭防火墙,或通过如下方式放通相关80或443端口:

  1 firewall-cmd --permanent --add-port=80/tcp
  2 firewall-cmd --permanent --add-port=443/tcp

1.2 配置yum源

  1 [root@nginx01 ~]# cat > /etc/yum.repos.d/nginx.repo <<EOF
  2 [nginx-stable]
  3 name=nginx stable repo
  4 baseurl=http://nginx.org/packages/centos/\$releasever/\$basearch/
  5 gpgcheck=1
  6 enabled=1
  7 gpgkey=https://nginx.org/keys/nginx_signing.key
  8 module_hotfixes=true
  9
 10 [nginx-mainline]
 11 name=nginx mainline repo
 12 baseurl=http://nginx.org/packages/mainline/centos/\$releasever/\$basearch/
 13 gpgcheck=1
 14 enabled=0
 15 gpgkey=https://nginx.org/keys/nginx_signing.key
 16 module_hotfixes=true
 17 EOF

1.3 安装Nginx

  1 [root@nginx01 ~]# yum -y install nginx
  2 [root@nginx01 ~]# nginx -v
  3 nginx version: nginx/1.18.0

提示:如上安装默认安装为当前最新稳定版,若需要安装开发版,可执行yum-config-manager --enable nginx-mainline,然后yum安装,不建议安装开发版。

  1 [root@nginx01 ~]# systemctl start nginx
  2 [root@nginx01 ~]# systemctl enable nginx			#启动服务

1.4 测试访问

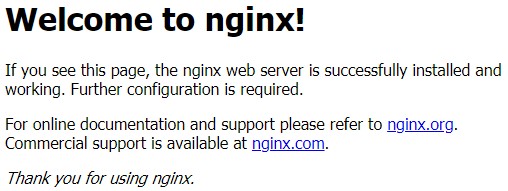

浏览器访问:http://172.24.8.71/

1.5 其他信息

  1 [root@nginx01 ~]# nginx -V			#查看yum安装所编译的模块及参数
  2 nginx version: nginx/1.18.0
  3 built by gcc 4.8.5 20150623 (Red Hat 4.8.5-39) (GCC)
  4 built with OpenSSL 1.0.2k-fips  26 Jan 2017
  5 TLS SNI support enabled
  6 configure arguments: --prefix=/etc/nginx --sbin-path=/usr/sbin/nginx --modules-path=/usr/lib64/nginx/modules --conf-path=/etc/nginx/nginx.conf --error-log-path=/var/log/nginx/error.log --http-log-path=/var/log/nginx/access.log --pid-path=/var/run/nginx.pid --lock-path=/var/run/nginx.lock --http-client-body-temp-path=/var/cache/nginx/client_temp --http-proxy-temp-path=/var/cache/nginx/proxy_temp --http-fastcgi-temp-path=/var/cache/nginx/fastcgi_temp --http-uwsgi-temp-path=/var/cache/nginx/uwsgi_temp --http-scgi-temp-path=/var/cache/nginx/scgi_temp --user=nginx --group=nginx --with-compat --with-file-aio --with-threads --with-http_addition_module --with-http_auth_request_module --with-http_dav_module --with-http_flv_module --with-http_gunzip_module --with-http_gzip_static_module --with-http_mp4_module --with-http_random_index_module --with-http_realip_module --with-http_secure_link_module --with-http_slice_module --with-http_ssl_module --with-http_stub_status_module --with-http_sub_module --with-http_v2_module --with-mail --with-mail_ssl_module --with-stream --with-stream_realip_module --with-stream_ssl_module --with-stream_ssl_preread_module --with-cc-opt='-O2 -g -pipe -Wall -Wp,-D_FORTIFY_SOURCE=2 -fexceptions -fstack-protector-strong --param=ssp-buffer-size=4 -grecord-gcc-switches -m64 -mtune=generic -fPIC' --with-ld-opt='-Wl,-z,relro -Wl,-z,now -pie'
  7 [root@nginx01 ~]# rpm -ql nginx			#查看所安装的文件
  8 [root@nginx01 ~]# rpm -qc nginx 		        #查看相关的配置文件

二 Nginx源码编译安装

2.1 依赖组件

  1 [root@nginx01 ~]# yum -y install gcc gcc-c++ wget autoconf pcre pcre-devel openssl openssl-devel openssh-clients net-tools vim ntp screen lrzsz bash-completion bash-completion-extras lvm2 make automake epel-release tree zlib zlib-devel libtool

提示:部分依赖包为比如,如:

2.2 编译安装

  1 [root@nginx01 ~]# useradd -s /sbin/nologin -M nginx	#提前创建用户及用户组
  2 [root@nginx01 ~]# wget http://nginx.org/download/nginx-1.17.8.tar.gz
  3 [root@nginx01 ~]# tar -xvf nginx-1.17.8.tar.gz
  4 [root@nginx01 ~]# cd nginx-1.17.8/
  5 [root@nginx01 nginx-1.17.8]# ./configure \
  6 --conf-path=/usr/local/nginx/conf/nginx.conf \
  7 --error-log-path=/var/log/nginx/error.log \
  8 --group=nginx \
  9 --http-client-body-temp-path=/var/cache/nginx/client_temp \
 10 --http-fastcgi-temp-path=/var/cache/nginx/fastcgi_temp \
 11 --http-log-path=/var/log/nginx/access.log \
 12 --http-proxy-temp-path=/var/cache/nginx/proxy_temp \
 13 --http-scgi-temp-path=/var/cache/nginx/scgi_temp \
 14 --http-uwsgi-temp-path=/var/cache/nginx/uwsgi_temp \
 15 --lock-path=/var/run/nginx.lock \
 16 --pid-path=/var/run/nginx.pid \
 17 --prefix=/usr/local/nginx \
 18 --sbin-path=/usr/local/bin/nginx \
 19 --user=nginx \
 20 --with-http_gzip_static_module \
 21 --with-http_realip_module \
 22 --with-http_ssl_module \
 23 --with-http_stub_status_module \
 24 --with-http_sub_module \
 25 --with-http_v2_module \
 26 --with-stream \
 27 --with-stream_realip_module \
 28 --with-stream_ssl_module
 29 [root@nginx01 nginx-1.17.8]# make && make install
 30 [root@nginx01 ~]# nginx -V			        #查看安装版本

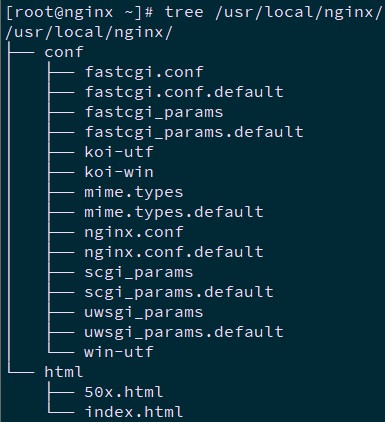

 31 [root@nginx01 ~]# tree /usr/local/nginx/		#查看目录结构

目录

作用

conf

用于存储nginx配置文件

html

用于存放静态网页

logs

存放日志

sbin

用于存放 nginx 执行命令

2.3 服务管理

  1 [root@nginx01 ~]# echo $PATH
  2 /usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/root/bin
  3 [root@nginx01 ~]# mkdir -p /var/cache/nginx/
  4 [root@nginx01 ~]# ll /usr/local/bin/
  5 total 7.5M
  6 -rwxr-xr-x 1 root root 7.5M Mar  5 01:09 nginx

提示:若nginx的prefix未编译系统PATH中,如/opt/nginx/,需要在PATH中,可通过如下方式添加:

echo 'PATH=/opt/nginx/:\$PATH' > /etc/profile.d/nginx.sh

  1 [root@nginx01 ~]# nginx			#服务启动
  2 [root@nginx01 ~]# nginx -s stop		#服务关闭
  3 [root@nginx01 ~]# nginx -s reload	        #重载配置文件
  4 [root@nginx01 ~]# nginx -s reopen	        #重启Nginx
  5 [root@nginx01 ~]# nginx -s quit		#关闭Nginx
  6 [root@nginx01 ~]# nginx -t		        #测试配置文件
  7 [root@nginx01 ~]# nginx -t -c 【file】	#使用额外的配置文件测试
  8 [root@nginx01 ~]# ps aux | grep nginx	#查看进程
  9 [root@nginx01 ~]# netstat -ano | grep 80	#查看端口

2.4 开机启动

  1 [root@nginx01 ~]# vi /usr/lib/systemd/system/nginx.service
  2 [Unit]
  3 Description=nginx - high performance web server
  4 Documentation=http://nginx.org/en/docs/
  5 After=network-online.target remote-fs.target nss-lookup.target
  6 Wants=network-online.target
  7
  8 [Service]
  9 Type=forking
 10 PIDFile=/var/run/nginx.pid
 11 ExecStart=/usr/local/bin/nginx -c /usr/local/nginx/conf/nginx.conf
 12 ExecReload=/bin/kill -s HUP $MAINPID
 13 ExecStop=/bin/kill -s TERM $MAINPID
 14
 15 [Install]
 16 WantedBy=multi-user.target
 17 [root@nginx01 ~]# systemctl daemon-reload
 18 [root@nginx01 ~]# systemctl start nginx.service		#启动服务
 19 [root@nginx01 ~]# systemctl enable nginx.service	#开机启动

说明:

注意:[Service]的启动、重启、停止命令全部要求使用绝对路径

[Install]运行级别下服务安装的相关设置,可设置为多用户,即系统运行级别为3

2.5 测试访问

浏览器访问:http://172.24.8.71/

2.6 编译选项

  1 [root@nginx01 nginx-1.17.8]# ./configure --help		#查看编译选项

如下为常见编译选项及其释义:

编译选项

作用

--prefix=/etc/nginx

程序安装目录和路径

--sbin-path=/usr/sbin/nginx

Nginx启动停止名

--modules-path=/usr/lib64/nginx/modules

Nginx模块路径

--conf-path=/etc/nginx/nginx.conf

Nginx主配置文件路径

--error-log-path=/var/log/nginx/error.log

Nginx错误日志路径

--http-log-path=/var/log/nginx/access.log

Nginx访问日志路径

--pid-path=/var/run/nginx.pid

Nginx Pid路径

--lock-path=/var/run/nginx.lock

Nginx锁路径

--http-client-body-temp-path=/var/cache/nginx/client_temp

client头部临时缓存文件

--http-proxy-temp-path=/var/cache/nginx/proxy_temp

proxy临时缓存文件

--http-fastcgi-temp-path=/var/cache/nginx/proxy_temp

fastcgi临时缓存文件

--http-uwsgi-temp-path=/var/cache/nginx/uwsgi_temp

uwsgi临时缓存文件

--http-scgi-temp-path=/var/cache/nginx/scgi_temp

scgi临时缓存文件

--user=nginx

设置Nginx进程启动用户

--group=nginx

设置Nginx进程启动用户组

--with-cc-opt

设置额外的参数将被添加到CFLACS变量

--with-id-opt

设置额外的参数,链接系统库

三 Nginx目录及模块

3.1 相关目录

如下以Nginx yum安装后的目录为例:

路径

类型

作用

/etc/nginx /etc/nginx/nginx.conf /etc/nginx/conf.d /etc/nginx/conf.d/default.conf

配置文件

Nginx主配置文件

/etc/nginx/fastcgi_params /etc/nginx/scgi_params /etc/nginx/uwsgi_params

配置文件

Cgi、Fastcgi、Uwsgi配置文件

/etc/nginx/win-utf /etc/nginx/koi-utf /etc/nginx/koi-win

配置文件

Nginx编码转换映射文件

/etc/nginx/mime.types

配置文件

http协议的Content-Type

/etc/rc.d/init.d/nginx /etc/rc.d/init.d/nginx-debug /etc/sysconfig/nginx /etc/sysconfig/nginx-debug

配置文件

配置系统守护进程管理器

/etc/logrotate.d/nginx

配置文件

Nginx日志轮询、日志切割

/usr/sbin/nginx /usr/sbin/nginx-debug

命令

Nginx终端管理器命令

/usr/share/doc/nginx-1.xx.x /usr/share/man/man8/nginx.8.gz

目录

Nginx的帮助手册

/var/cache/nginx

目录

Nginx的缓存目录

/var/log/nginx

目录

Nginx的日志目录

/etc/nginx/modules /etc/lib64/nginx /etc/lib64/nginx/modules

目录

Nginx的模块目录

/usr/share/nginx /usr/share/nginx/html /usr/share/nginx/html/50x.html /usr/share/nginx/html/index.html

目录

Nginx默认站点目录

3.2 Nginx模块

Nginx模块分为Nginx官方模块和Nginx第三方模块。

Nginx编译选项

模块作用

ngx_http_core_module

包含一些核心的http参数配置,对应Nginx的配置区块部分。

ngx_http_access_module

访问控制模块,用来控制网站用户对Nginx的访问。

ngx_http_gzip_module

压缩模块,对Nginx返回的数据压缩,属于性能优化模块。

ngx_http_fastcgi_module

fastcgi模块,和动态应用相关的模块,例如PHP。

ngx_http_proxy_module

proxy代理模块。

ngx_http_upstream_module

负载均衡模块,实现网站的负载均衡功能机健康检查。

ngx_http_rewrite_module

URL地址重写模块。

ngx_http_limit_conn_module

限制用户并发连接数及请求连接数。

ngx_http_limit_req_module

限制Nginx request processing rate根据定义的key。

ngx_http_log_module

访问日志模块,以指定的格式记录Nginx客户访问日志等信息。

ngx_http_auth_basic_module

Web认证模块,设置Web用户通过账号密码访问Nginx。

ngx_http_ssl_module

ssl模块,用于加密的http连接,如https。

四 Nginx变量及状态码

4.1 Nginx变量

ngx_http_core_module的内置变量通常有:http请求变量、Nginx内置变量、自定义变量。

4.2 http状态码

http状态码是用以表示网页服务器HTTP响应状态的3位数字代码。

可通过查看HTTP状态码来判断服务器状态,常见的有404、502等。

总结

以上为个人经验,希望能给大家一个参考,也希望大家多多支持脚本之家。
