基于Python模拟实现n乘法的逆元计算器

作者:金銀銅鐵

本文介绍了扩展欧几里得算法及其在计算模n乘法逆元中的应用,通过Pygame实现图形化界面,开发了一个模n乘法逆元计算器,支持大数运算,高效便捷

背景

在 [Python] 扩展欧几里得算法 一文中,我们已经接触了扩展欧几里得算法。借助扩展欧几里得算法,我们可以高效地计算模 n 乘法的逆元。本文会介绍相关的内容。

要点

对自然数 a 和 正整数 n 而言,是否可以找到一个整数 x 使得 ax1(modn) 成立呢?

由于以下两个等式成立(其中 k是任意整数),我们只需要关心满足0a,x<n 条件的整数a,x 就够了。

我们可以先用比较小的 n 试一试。

用较小的n做尝试

我们可以用暴力的方法,对较小的 n 做尝试 ⬇️

def show_markdown_result(n):
    print(f"#### $n={n}$ 时")
    print(f"| $a$ | 满足 $ax\\equiv 1 \\pmod{{{n}}}$ 和 $0\\le x\\lt {n}$ 的 $x$ |")
    print("| --- | --- |")
    for a in range(n):
        matched_result = []
        for x in range(n):
            if (a * x - 1) % n == 0:
                matched_result.append(x)
        if matched_result:
            joined_result = ','.join(map(str, matched_result))
            print(f"| ${a}$ | ${joined_result}$ |")
        else:
            print(f"| ${a}$ | (不存在) |")

for n in range(1, 10):
    show_markdown_result(n)
    print("\n")

请将以上代码保存为 show.py,用下方的命令可以运行 show.py

python3 show.py

运行结果中包含了9markdown 表格 ⬇️

n=1时

a满足ax1(mod1)0x<1x
00

n=2时

a满足ax1(mod2)0x<2x
0(不存在)
11

n=3时

a满足 ax1(mod3)0x<3x
0(不存在)
11
22

n=4时

a满足ax1(mod4)0x<4x
0(不存在)
11
2(不存在)
33

n=5时

a满足ax1(mod5)0x<5x
0(不存在)
11
23
32
44

n=6时

a满足ax1(mod6)0x<6x
0(不存在)
11
2(不存在)
3(不存在)
4(不存在)
55

n=7时

a满足ax1(mod7)0x<7x
0(不存在)
11
24
35
42
53
66

n=8时

a满足ax1(mod8)0x<8x
0(不存在)
11
2(不存在)
33
4(不存在)
55
6(不存在)
77

n=9时

a满足ax1(mod9)0x<9x
0(不存在)
11
25
3(不存在)
47
52
6(不存在)
74
88

一些规律

从上一小节的数据来看,似乎有以下规律成立(有待证明或者证伪)

  1. an 互质(即 gcd(a,n)=1)时,似乎总能找到满足ax1(modn)x
  2. an 互质(即 gcd(a,n)≠1)时,似乎总是无法找到满足ax1(modn)x
  3. 当我们限制 x 满足 0x<n 时,能让ax1(modn) 成立的 x 似乎最多只有 1 个。

规律一的证明

第一个规律,我们可以用扩展欧几里得算法来证明。当 a 和 nn互质(即 gcd(a,n)=1)时,借助扩展欧几里得算法,可以找到满足ax0+ny0=1 的整数 x0,y0。于是 ax01=ny0,所以ax01(modn)。令 x=x0 mod n,就找到了符合要求的 x

规律二的证明

第二个规律,可以用反证法证明。当 a 和 n互质(即 gcd(a,n)≠1)时,假设可以找到某个 x使得 ax1(modn)x 成立,那么存在某个整数 k 使得 ax+kn=1 成立。以下两个等式显然成立

那么 gcd(a,n)(ax+kn) 成立,即gcd(a,n)1 成立,这与 gcd(a,n)≠1 矛盾。第二个规律得证。有了规律一和规律二,我们就知道 ax1(modn) 有解的充分必要条件是 gcd(a,n)=1

规律三的证明

第三个规律,也可以证明。假设可以找到x1,x2 分别满足

我们在第一个等式两边乘以 x2,会得到

x2​ax1​≡x2​(modn)

我们在第二个等式两边乘以x1,会得到

x1​ax2​≡x1​(modn)

而模 n 的乘法满足 交换律和结合律(这里就不证明了),所以

于是x1x2(modn)

因此,当我们限制 x 满足 0x<n 时,能让ax1(modn) 成立的 x 最多只有 1

用程序来处理

核心逻辑

[Python] 扩展欧几里得算法 一文中已经提供了扩展欧几里得算法的代码。我们在它的基础上,再加上计算逆元的方法即可

def extended_euclidean(a, b):
    if (a, b) == (0, 0):
        raise ValueError("a and b cannot be both 0")
    if b == 0:
        return (1, 0, a)
    x, y, g = extended_euclidean(b, a % b)
    return (y, x - a // b * y, g)

def calc_inverse_element(a, n):
    x, _, gcd = extended_euclidean(a, n)
    if gcd == 1:
        return x % n
    return None

添加 GUI 之后的完整程序

 我完成了和Pygame 相关的代码。完整的 Python 程序如下

import pygame

def extended_euclidean(a, b):
    if (a, b) == (0, 0):
        raise ValueError("a and b cannot be both 0")
    if b == 0:
        return (1, 0, a)
    x, y, g = extended_euclidean(b, a % b)
    return (y, x - a // b * y, g)

def calc_inverse_element(a, n):
    x, _, gcd = extended_euclidean(a, n)
    if gcd == 1:
        return x % n
    return None

# ===================== Pygame 初始化 =====================
pygame.init()

WIDTH, HEIGHT = 700, 480
screen = pygame.display.set_mode((WIDTH, HEIGHT))
pygame.display.set_caption("Inverse Element Calculator")

# 颜色配置
WHITE = (255, 255, 255)
BLACK = (0, 0, 0)
GRAY = (220, 220, 220)
BLUE = (50, 100, 200)
RED = (200, 50, 50)
GREEN = (50, 180, 50)

# 字体
font_input = pygame.font.SysFont("Arial", 36)
font_text = pygame.font.SysFont("Arial", 32)
font_result = pygame.font.SysFont("Arial", 38)
font_equation = pygame.font.SysFont("Arial", 32)
font_btn = pygame.font.SysFont("Arial", 34)

# ===================== 布局:全部水平居中,对称美观 =====================
# 输入框组居中
INPUT_X = WIDTH // 2 - 110  # 输入框水平居中
INPUT_WIDTH = 220
INPUT_HEIGHT = 50

# 输入a
input_a_rect = pygame.Rect(INPUT_X, 110, INPUT_WIDTH, INPUT_HEIGHT)
input_a_text = ""
a_active = False

# 输入n
input_n_rect = pygame.Rect(INPUT_X, 180, INPUT_WIDTH, INPUT_HEIGHT)
input_n_text = ""
n_active = False

# 按钮居中
btn_rect = pygame.Rect(WIDTH // 2 - 150, 260, 300, 60)
btn_text = "Calculate"

# 结果
result_text = ""
equation_text = ""
result_color = BLACK

# ===================== 主循环 =====================
running = True
while running:
    screen.fill(WHITE)

    # -------------------- 文字与输入框(居中对齐)--------------------
    # Input a 标签(与输入框垂直居中)
    label_a = font_text.render("Input a:", True, BLACK)
    screen.blit(label_a, (INPUT_X - 120, 118))

    # Input n 标签(与输入框垂直居中)
    label_n = font_text.render("Input n:", True, BLACK)
    screen.blit(label_n, (INPUT_X - 120, 188))

    # 绘制输入框a
    pygame.draw.rect(screen, BLUE if a_active else GRAY, input_a_rect, 2)
    screen.blit(font_input.render(input_a_text, True, BLACK), (input_a_rect.x+10, input_a_rect.y+5))

    # 绘制输入框n
    pygame.draw.rect(screen, BLUE if n_active else GRAY, input_n_rect, 2)
    screen.blit(font_input.render(input_n_text, True, BLACK), (input_n_rect.x+10, input_n_rect.y+5))

    # 绘制按钮(居中)
    pygame.draw.rect(screen, BLUE, btn_rect, border_radius=8)
    btn_surface = font_btn.render(btn_text, True, WHITE)
    screen.blit(btn_surface, (btn_rect.centerx - btn_surface.get_width()//2, btn_rect.centery - btn_surface.get_height()//2))

    # 结果文字(居中显示,更美观)
    result_surface = font_result.render(result_text, True, result_color)
    screen.blit(result_surface, (WIDTH // 2 - result_surface.get_width()//2, 350))

    # 公式提示(底部居中)
    formula = font_equation.render(equation_text, True, BLACK)
    screen.blit(formula, (WIDTH // 2 - formula.get_width()//2, 420))

    # ===================== 事件处理 =====================
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            running = False

        # 鼠标点击
        if event.type == pygame.MOUSEBUTTONDOWN:
            if input_a_rect.collidepoint(event.pos):
                a_active = True
                n_active = False
            elif input_n_rect.collidepoint(event.pos):
                n_active = True
                a_active = False
            elif btn_rect.collidepoint(event.pos):
                result_text = ""
                try:
                    a = int(input_a_text)
                    n = int(input_n_text)
                    if a <= 0 or n <= 0:
                        result_text = "ERROR: Please input positive integers!"
                        result_color = RED
                    else:
                        inv = calc_inverse_element(a, n)
                        if inv is not None:
                            result_text = f"x: {inv}"
                            result_color = GREEN
                            equation_text = f"{a} * {inv} ≡ 1 (mod {n})"
                        else:
                            result_text = f"ERROR: {a} and {n} are not relatively prime, no inverse exists!"
                            result_color = RED
                except ValueError:
                    result_text = "ERROR: Please input valid integers!"
                    result_color = RED
            else:
                a_active = False
                n_active = False

        # 键盘输入
        if event.type == pygame.KEYDOWN:
            if a_active:
                if event.key == pygame.K_BACKSPACE:
                    input_a_text = input_a_text[:-1]
                elif event.unicode.isdigit():
                    input_a_text += event.unicode
            if n_active:
                if event.key == pygame.K_BACKSPACE:
                    input_n_text = input_n_text[:-1]
                elif event.unicode.isdigit():
                    input_n_text += event.unicode

    pygame.display.flip()

pygame.quit()

请将完整的程序保存为 inverse_element_calculator.py。使用如下的命令可以运行 inverse_element_calculator.py

python3 inverse_element_calculator.py

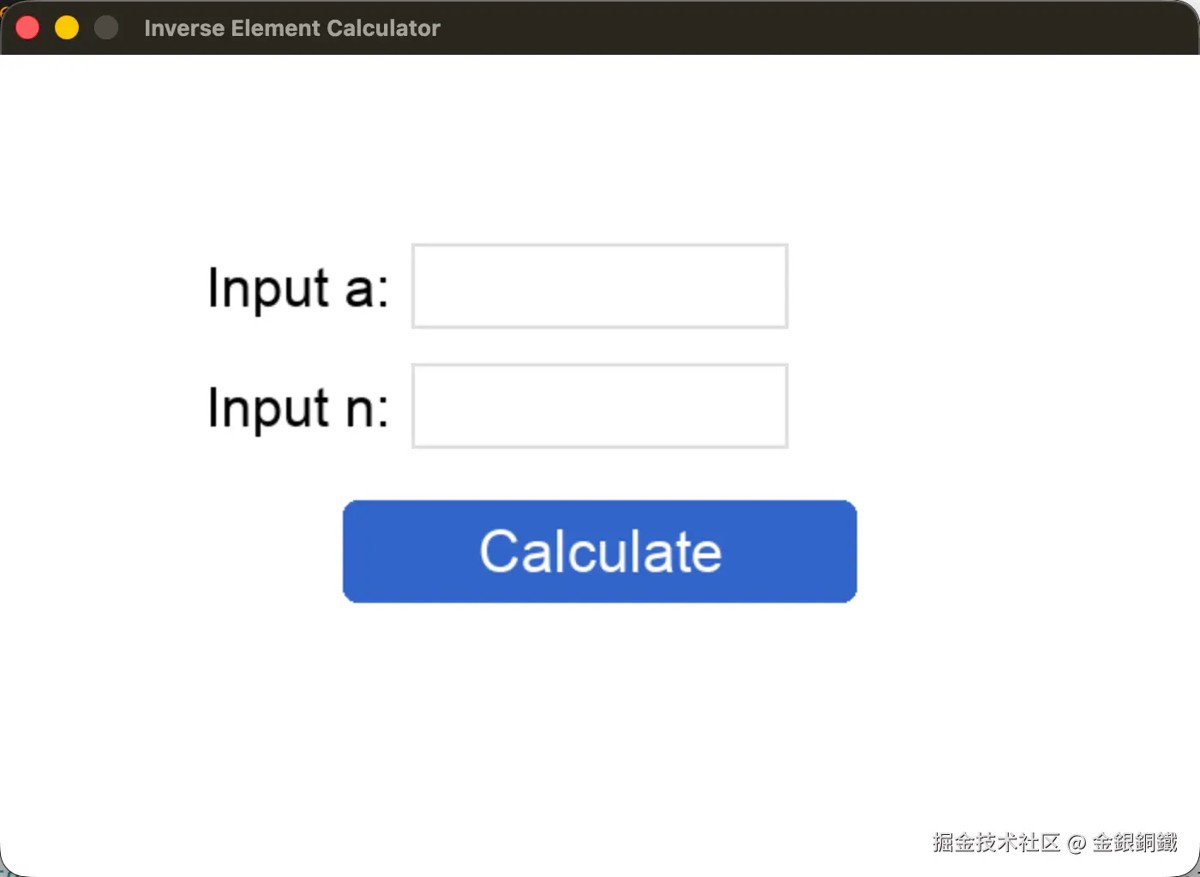

初始界面如下图所示

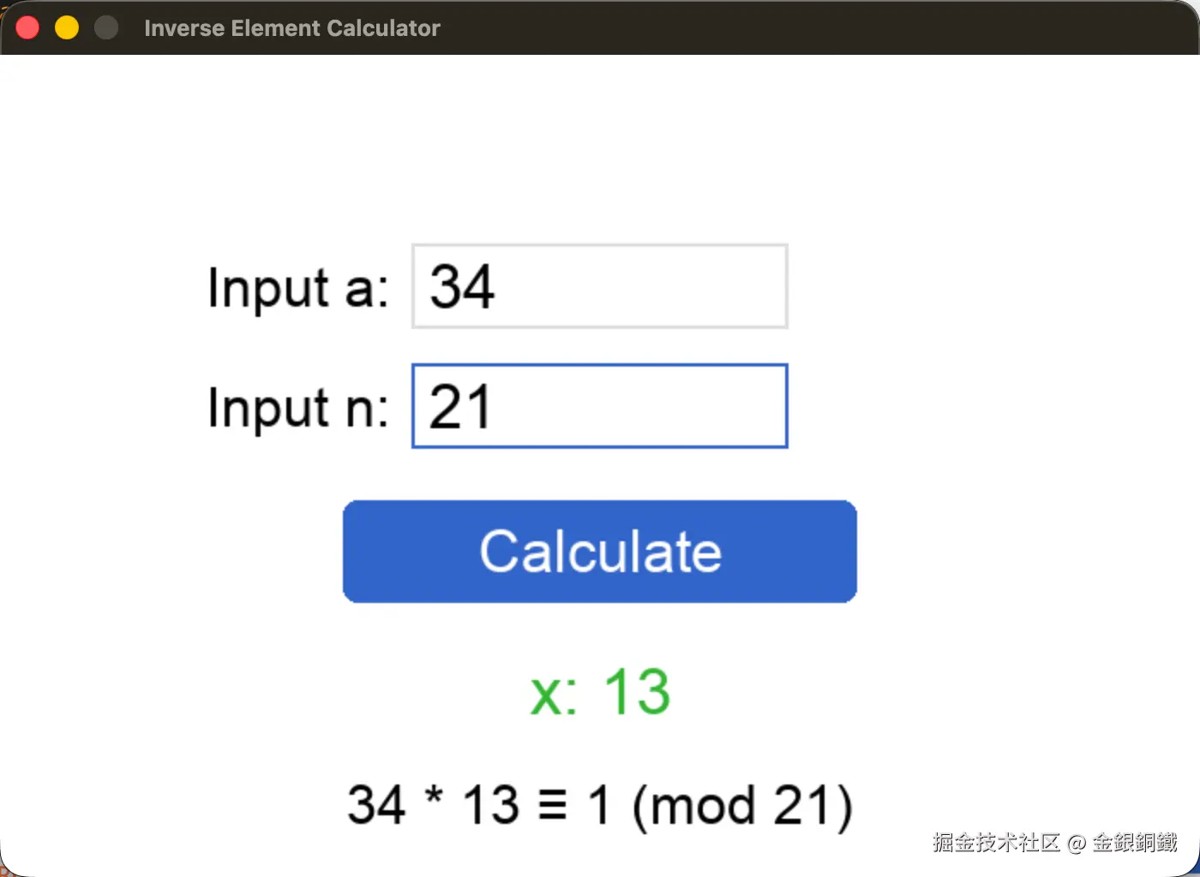

此时需要用户输入 a 和 n。我输入了 3423,然后点击 Calculate 按钮,就可以计算 a 对应的逆元了

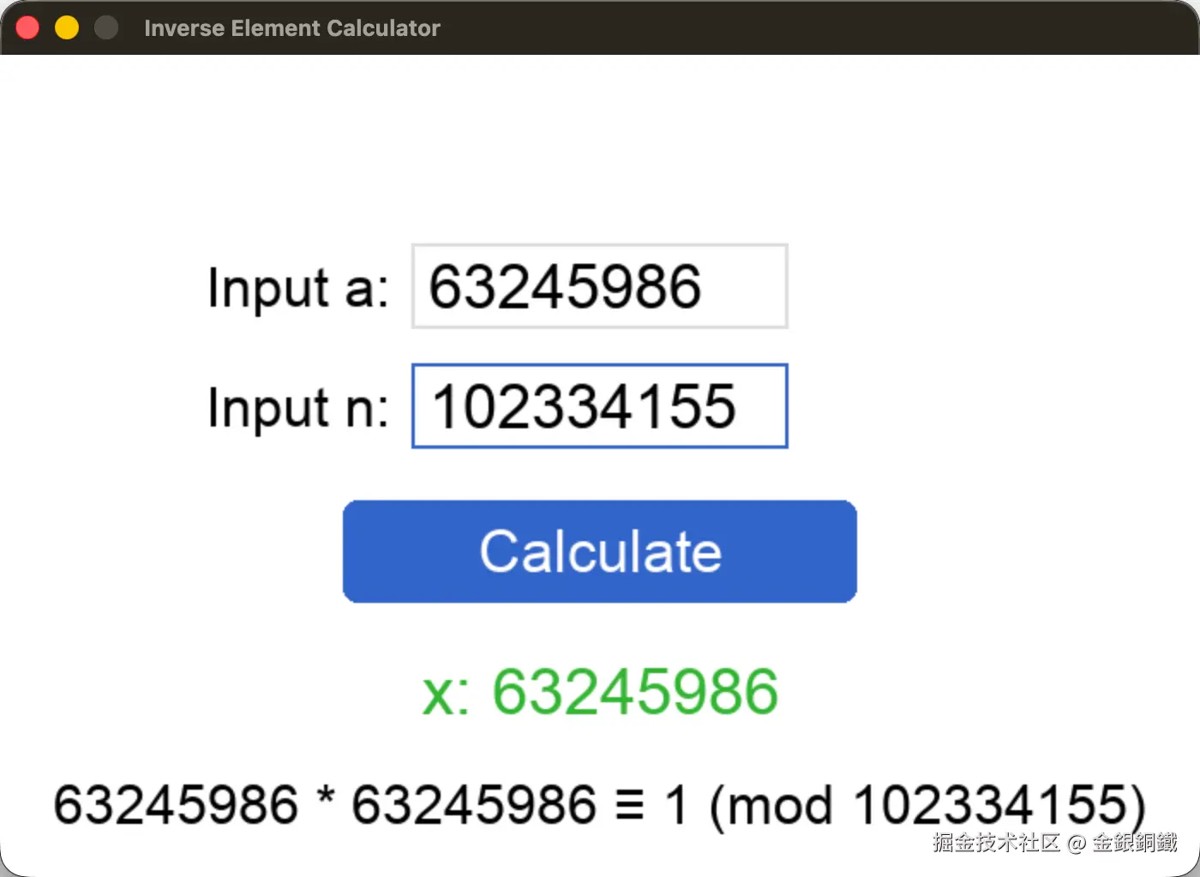

由于扩展欧几里得算法很高效,所以即使输入比较大 aaannn,也可以立刻算出结果,示例效果如下  (a=63245986,n=102334155)
