Python实现批量识别图片文字并保存到excel中
作者:Ratten
1. 需求分析
识别图片中的文字【采用百度的通用文字识别】;
文字筛选,按照分类获取对应的文本;
采用 openpyxl 实现将数据存入 excel 中。
2. 获取 access_token
获取本地缓存的 access_token;
如果本地缓存的 access_token 过期,从百度获取远程 access_token。
# 获取 access_token def get_access_token(): access_token = get_local_access_token() if access_token == False: return get_request_access_token() else: return access_token
3. 本地 access_token
是否存在保存 token 的文件夹,不存在就创建,并且返回 False,表示本地没有找到 access_token;
获取文件夹中的 access_token 文件,筛选文本文件,access_token 保存在文本文件中;
如果没有找到保存 access_token 的文件,返回 False;
获取文件名中的数字,进行排序,获取最后一个最新的文件;
获取存储token的时间;
由于token的有效时间是30天,因此判断29进行刷新;
获取token执行的当前时间;
判断如果超出有效期,重新刷新 access_token;
获取本地文件中缓存的 access_token。
# 获取本地的 access_token def get_local_access_token(): # 是否存在保存 token 的文件夹,不存在就创建,并且返回 False,表示本地没有找到 access_token if not os.path.exists(f'./token/'): os.makedirs(f'./token/') return False # 获取文件夹中的token files = os.listdir("./token") file_names = list(filter(lambda x : x.split('.').pop() in ['txt'], files)) # 如果没有找到保存 access_token 的文件,返回 False if len(file_names) == 0: return False sort_names = list(sorted(file_names, key=lambda x:(int(re.sub('\D', '', x)),x))) last_time_name = sort_names[-1] # 存储token的时间 save_time = int(re.sub('\D', '', last_time_name)) # 由于token的有效时间是30天,因此判断29进行刷新 effective_time = 60 * 60 * 24 * 29 # 获取token执行的当前时间 current_time = int(time.time()) # 保存 access_token 的变量 access_token = "" # 判断如果超出有效期,重新刷新 access_token if current_time - save_time > effective_time: return False else: # 获取本地文件中缓存的 access_token with open("./token/" + last_time_name, "r",encoding="utf-8") as f: access_token = f.read() return access_token
4. 远程 access_token
使用在百度控制台获取的 key 和 secret,组装一个获取 access_token 的地址;
定义一个发起请求的 headers ;
使用 requests 发起请求,获取 access_token ;
获取返回结果【response】中的 access_token ;
判断 access_token 存在,就以当前时间戳为文件名,将 access_token 写入文件中;
返回获取的远程的 access_token;
如果 access_token 无效,输出报错,关闭弹窗。
# 获取百度的 access_token def get_request_access_token(): url = f'https://aip.baidubce.com/oauth/2.0/token?grant_type=client_credentials&client_id={key}&client_secret={secret}' payload = "" headers = { 'Content-Type': 'application/json', 'Accept': 'application/json' } response = requests.request("POST", url, headers=headers, data=payload) if response: access_token = response.json().get('access_token') if access_token: with open("./token/" + str(int(time.time())) + ".txt", "w",encoding="utf-8") as f: f.write(access_token) return str(access_token) else: print(response.json()) print('无正确的 access_token 返回!!!') print('3s 后自动关闭打印窗口!') time.sleep(3) print('关闭打印窗口!')
5. 获取所有需要识别的图片
获取文件夹下的所有文件名称;
过滤获取所有的图片文件名列表。
# 获取文件夹下所有图片文件名称 def get_all_image_names(path): names = os.listdir(path) image_names = list(filter(lambda x : x.split('.').pop() in ['jpg', 'png', 'jpeg', 'bmp'], names)) return image_names
6. 获取所有图片的图片信息
使用 all_list_data 存储返回图片的信息;
循环图片名列表,读取每一张图片的信息;
返回所有图片的信息。
# 获取所有图片的图片信息 def get_all_image_info(path, image_names, access_token): all_list_data = [] for name in image_names: all_list_data += get_image_to_text(access_token, f"{path}/{name}") # print('all_list_data',all_list_data) return all_list_data
7. 获取图片中的文字
设置采用识别文字的api接口;
读取图片,组装为请求参数;
用请求接口和 access_token 拼接为完整的获取图片中文本信息的接口;
使用 requests 发起请求,获取图片中识别的文本信息;
读取返回的文本结果 words_result;
如果 words_result 存在,使用 words_to_object 对每个返回结果进行处理;
否则输出错误,同时关闭窗口。
# 获取图片中的文字 def get_image_to_text(access_token, path): request_url = "https://aip.baidubce.com/rest/2.0/ocr/v1/accurate_basic" # 二进制方式打开图片文件 with open(path, 'rb') as f: img = base64.b64encode(f.read()) params = {"image":img} request_url = request_url + "?access_token=" + access_token headers = {'content-type': 'application/x-www-form-urlencoded'} response = requests.post(request_url, data=params, headers=headers) if response: words_result = response.json().get("words_result") if words_result: print(f'图片:{path} 读取完成!') return words_to_object(words_result) time.sleep(0.5) else: print(response.json()) print('识别文字无返回!!!') print('3s 后自动关闭打印窗口!') time.sleep(3) print('关闭打印窗口!')
8. 文本信息筛选
通过【收益率】获取需要数据的起始标识;
筛选获取【清仓次数】关键字,为当前次进入;
否则【清仓】存在,就是结束。
# 将文本信息列表转字典 def words_to_object(words_result): start = 0 date_list = [] # print('words_result',words_result) # 获取起始角标 for index,item in enumerate(words_result): if item.get("words") == "收益率": start = index break for index,item in enumerate(words_result): if index > start: words = item.get("words") if '清仓次数' in words: words_split = words.split(',清仓盈利') value = words_split[1] start_word = index if value == '' and words_result[index + 1]: value = words_result[index + 1].get("words") start_word = index + 1 if index < len(words_result) - 1: date_list.append({ "name": words_split[0], "value": value, "lists": [[]] }) elif '清仓' in words: date_list[-1]["lists"][-1].append(words) if index < len(words_result) - 1 and '清仓次数' not in words_result[index + 1].get("words"): date_list[-1]["lists"].append([]) else: if index > start_word: date_list[-1]["lists"][-1].append(words) return date_list
9. 读取数据保存到excel中
将需要的数据拼接到一个列表中;
获取盈利数据转浮点数,返回列表;
对盈利点数求和;
通过盈利点数排序;
通过持有天数排序;
循环将数据存入到excel表格中;
判断表格是否存在,存在就删除,重新保存;
不存在就直接保存;
关闭弹窗,程序运行结束。
# 将读取数据保存到excel中 def save_info_to_excel(infos): info = openpyxl.Workbook() sheet = info.active all_infos = [] for item in infos: lists = item.get("lists") if lists and len(lists) > 0: all_infos += lists all_infos_total = list(map(lambda vals: float(vals[2].replace(',','')), all_infos)) total = sum(all_infos_total) # print('total',total) sorted_infos = list(sorted(all_infos, key=lambda vals: float(vals[2].replace(',','')))) # print('sorted_infos',sorted_infos) days_infos = list(sorted(all_infos, key=lambda vals: int(vals[1]))) # print('days_infos',days_infos) for index,vals in enumerate(all_infos): # 直接数据列表 sheet.cell(row=index+1, column=1).value = vals[0] sheet.cell(row=index+1, column=2).value = vals[1] sheet.cell(row=index+1, column=3).value = vals[2] sheet.cell(row=index+1, column=4).value = vals[3] sheet.cell(row=index+1, column=5).value = vals[4] # 盈利金额排序 infos = sorted_infos[index] sheet.cell(row=index+1, column=7).value = infos[0] sheet.cell(row=index+1, column=8).value = infos[1] sheet.cell(row=index+1, column=9).value = infos[2] sheet.cell(row=index+1, column=10).value = infos[3] sheet.cell(row=index+1, column=11).value = infos[4] # 按照持有时间排序 days = days_infos[index] sheet.cell(row=index+1, column=13).value = days[0] sheet.cell(row=index+1, column=14).value = days[1] sheet.cell(row=index+1, column=15).value = days[2] sheet.cell(row=index+1, column=16).value = days[3] sheet.cell(row=index+1, column=17).value = days[4] # 总积 sheet.cell(row=len(all_infos) + 1, column=1).value = '总计' sheet.cell(row=len(all_infos) + 1, column=2).value = round(total,2) if not os.path.exists('./股票清仓信息.xlsx'): info.save('./股票清仓信息.xlsx') else: os.remove('./股票清仓信息.xlsx') info.save('./股票清仓信息.xlsx') print('股票清仓信息.xlsx保存成功') print('3s 后自动关闭打印窗口!') time.sleep(3) print('关闭打印窗口!')

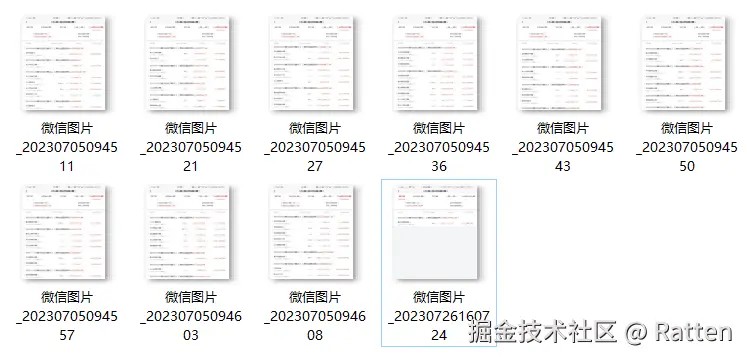

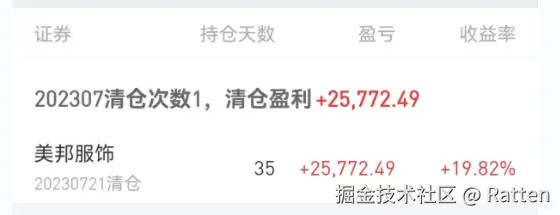

10. 获取信息图片示例
11. 运行实例

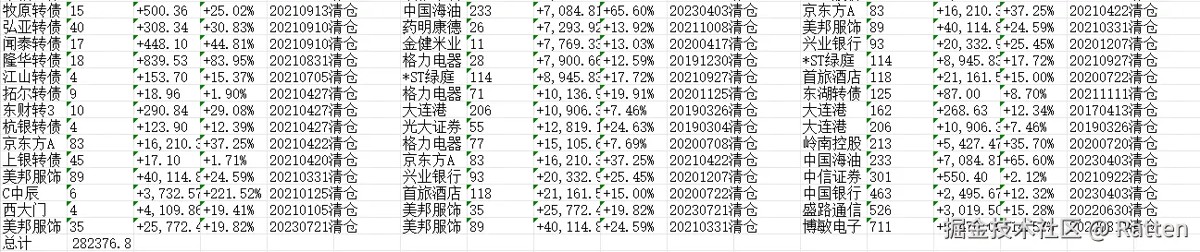

12. 运行结果

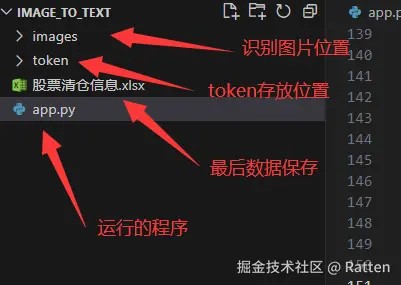

13. 各个文件的位置
14. 完整代码
import requests import json import base64 import os import time import re import openpyxl from openpyxl.styles import * id = '35108270' key = 'xxx' secret = 'xxx' # 获取 access_token def get_access_token(): access_token = get_local_access_token() if access_token == False: return get_request_access_token() else: return access_token # 获取本地的 access_token def get_local_access_token(): # 是否存在保存 token 的文件夹,不存在就创建,并且返回 False,表示本地没有找到 access_token if not os.path.exists(f'./token/'): os.makedirs(f'./token/') return False # 获取文件夹中的token files = os.listdir("./token") file_names = list(filter(lambda x : x.split('.').pop() in ['txt'], files)) # 如果没有找到保存 access_token 的文件,返回 False if len(file_names) == 0: return False sort_names = list(sorted(file_names, key=lambda x:(int(re.sub('\D', '', x)),x))) last_time_name = sort_names[-1] # 存储token的时间 save_time = int(re.sub('\D', '', last_time_name)) # 由于token的有效时间是30天,因此判断29进行刷新 effective_time = 60 * 60 * 24 * 29 # 获取token执行的当前时间 current_time = int(time.time()) # 保存 access_token 的变量 access_token = "" # 判断如果超出有效期,重新刷新 access_token if current_time - save_time > effective_time: return False else: # 获取本地文件中缓存的 access_token with open("./token/" + last_time_name, "r",encoding="utf-8") as f: access_token = f.read() return access_token # 获取百度的 access_token def get_request_access_token(): url = f'https://aip.baidubce.com/oauth/2.0/token?grant_type=client_credentials&client_id={key}&client_secret={secret}' payload = "" headers = { 'Content-Type': 'application/json', 'Accept': 'application/json' } response = requests.request("POST", url, headers=headers, data=payload) if response: access_token = response.json().get('access_token') if access_token: with open("./token/" + str(int(time.time())) + ".txt", "w",encoding="utf-8") as f: f.write(access_token) return str(access_token) else: print(response.json()) print('无正确的 access_token 返回!!!') print('3s 后自动关闭打印窗口!') time.sleep(3) print('关闭打印窗口!') # 获取图片中的文字 def get_image_to_text(access_token, path): request_url = "https://aip.baidubce.com/rest/2.0/ocr/v1/accurate_basic" # 二进制方式打开图片文件 with open(path, 'rb') as f: img = base64.b64encode(f.read()) params = {"image":img} request_url = request_url + "?access_token=" + access_token headers = {'content-type': 'application/x-www-form-urlencoded'} response = requests.post(request_url, data=params, headers=headers) if response: words_result = response.json().get("words_result") if words_result: print(f'图片:{path} 读取完成!') return words_to_object(words_result) time.sleep(0.5) else: print(response.json()) print('识别文字无返回!!!') print('3s 后自动关闭打印窗口!') time.sleep(3) print('关闭打印窗口!') # 将文本信息列表转字典 def words_to_object(words_result): start = 0 date_list = [] # print('words_result',words_result) # 获取起始角标 for index,item in enumerate(words_result): if item.get("words") == "收益率": start = index break for index,item in enumerate(words_result): if index > start: words = item.get("words") if '清仓次数' in words: words_split = words.split(',清仓盈利') value = words_split[1] start_word = index if value == '' and words_result[index + 1]: value = words_result[index + 1].get("words") start_word = index + 1 if index < len(words_result) - 1: date_list.append({ "name": words_split[0], "value": value, "lists": [[]] }) elif '清仓' in words: date_list[-1]["lists"][-1].append(words) if index < len(words_result) - 1 and '清仓次数' not in words_result[index + 1].get("words"): date_list[-1]["lists"].append([]) else: if index > start_word: date_list[-1]["lists"][-1].append(words) return date_list # 获取所有图片的图片信息 def get_all_image_info(path, image_names, access_token): all_list_data = [] for name in image_names: all_list_data += get_image_to_text(access_token, f"{path}/{name}") # print('all_list_data',all_list_data) return all_list_data # 获取文件夹下所有图片文件名称 def get_all_image_names(path): names = os.listdir(path) image_names = list(filter(lambda x : x.split('.').pop() in ['jpg', 'png', 'jpeg', 'bmp'], names)) return image_names # 将读取数据保存到excel中 def save_info_to_excel(infos): info = openpyxl.Workbook() sheet = info.active all_infos = [] for item in infos: lists = item.get("lists") if lists and len(lists) > 0: all_infos += lists all_infos_total = list(map(lambda vals: float(vals[2].replace(',','')), all_infos)) total = sum(all_infos_total) # print('total',total) sorted_infos = list(sorted(all_infos, key=lambda vals: float(vals[2].replace(',','')))) # print('sorted_infos',sorted_infos) days_infos = list(sorted(all_infos, key=lambda vals: int(vals[1]))) # print('days_infos',days_infos) for index,vals in enumerate(all_infos): # 直接数据列表 sheet.cell(row=index+1, column=1).value = vals[0] sheet.cell(row=index+1, column=2).value = vals[1] sheet.cell(row=index+1, column=3).value = vals[2] sheet.cell(row=index+1, column=4).value = vals[3] sheet.cell(row=index+1, column=5).value = vals[4] # 盈利金额排序 infos = sorted_infos[index] sheet.cell(row=index+1, column=7).value = infos[0] sheet.cell(row=index+1, column=8).value = infos[1] sheet.cell(row=index+1, column=9).value = infos[2] sheet.cell(row=index+1, column=10).value = infos[3] sheet.cell(row=index+1, column=11).value = infos[4] # 按照持有时间排序 days = days_infos[index] sheet.cell(row=index+1, column=13).value = days[0] sheet.cell(row=index+1, column=14).value = days[1] sheet.cell(row=index+1, column=15).value = days[2] sheet.cell(row=index+1, column=16).value = days[3] sheet.cell(row=index+1, column=17).value = days[4] # 总积 sheet.cell(row=len(all_infos) + 1, column=1).value = '总计' sheet.cell(row=len(all_infos) + 1, column=2).value = round(total,2) if not os.path.exists('./股票清仓信息.xlsx'): info.save('./股票清仓信息.xlsx') else: os.remove('./股票清仓信息.xlsx') info.save('./股票清仓信息.xlsx') print('股票清仓信息.xlsx保存成功') print('3s 后自动关闭打印窗口!') time.sleep(3) print('关闭打印窗口!') if __name__ == '__main__': path = './images' # 获取 access_token access_token = get_access_token() # 获取images下所有文件 image_names = get_all_image_names(path) # 获取所有图片的信息 if access_token and len(image_names) > 0: all_info = get_all_image_info(path, image_names, access_token) # 将信息存储到excel表格中 save_info_to_excel(all_info)
15. 总结
识别存在一定的误差,所以对返回数据进行处理时,需要细心筛选你需要的数据;
access_token 是 30 天有效期,因此建议请求一次,就将最新的进行存储到本地,下次直接使用本地有效 access_token;
