SpringBoot整合Swagger2/Swagger3之拦截器配置方式

2026-06-29 09:24:33 作者：Ju3tinZ2

这段文章详细介绍了Springfox Swagger 3.0的配置方法,包括前端资源路径设置和POM依赖配置,并提供了AntPath路径匹配规则说明,帮助大家更好地理解和应用Swagger文档生成

1. swagger2.0

1.1 POM依赖

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>2.9.2</version>
</dependency>
<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger-ui</artifactId>
    <version>2.9.2</version>
</dependency>

1.2 Swagger设置

@Configuration
// 关键
@EnableSwagger2
public class SwaggerConfig {

    @Bean
    public Docket createRestAPI() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                // 改为自己的controller包路径
                .apis(RequestHandlerSelectors.basePackage("xx.xx.xx.controller"))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("WebNovel接口文档")
                .description("WebNovel Restful 接口")
                .contact(new Contact("xxUser", "#", "xxUser@.qq.com"))
                .version("1.0")
                .build();
    }
}

1.3 拦截器排除

@Configuration
public class WebMvcConfig extends WebMvcConfigurationSupport {

    // 请求路径排除
    @Override
    protected void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor()
            .addPathPatterns("/**")
            .excludePathPatterns("/swagger-resources/**")
            .excludePathPatterns("/webjars/**")
            .excludePathPatterns("/v2/**")
            .excludePathPatterns("/swagger-ui.html/**");
        super.addInterceptors(registry);
    }

    // 资源映射增加
    @Override
    protected void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("swagger-ui.html")
                .addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("/webjars/**")
                .addResourceLocations("classpath:/META-INF/resources/webjars/");
        super.addResourceHandlers(registry);
    }
}

2. swagger3.0

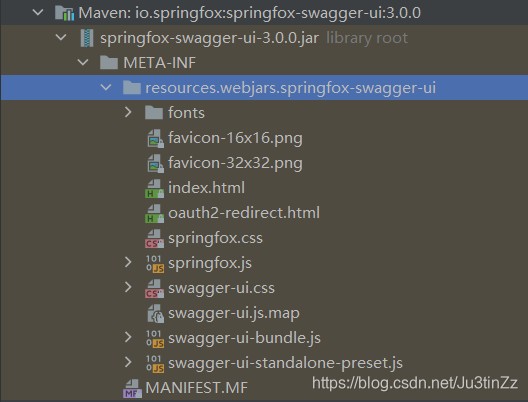

swagger3.0前端资源路径在springfox-swagger-ui-3.0.0.jar包中。

具体路径：META-INF\resources\webjars\springfox-swagger-ui

2.1 POM依赖

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-boot-starter</artifactId>
    <version>3.0.0</version>
</dependency>

2.2 Swagger设置

@Configuration
// 关键
@EnableOpenApi
public class SwaggerConfig {

    @Bean
    public Docket createRestAPI() {
        return new Docket(DocumentationType.OAS_30)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("xx.xx.xx.controller"))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("WebNovel接口文档")
                .description("WebNovel Restful 接口")
                .contact(new Contact("xxUser", "#", "xxUser@qq.com"))
                .version("1.0")
                .build();
    }
}

2.3 拦截器排除

@Configuration
public class WebMvcConfig extends WebMvcConfigurationSupport {

    @Override
    protected void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/swagger-ui/**")
                .addResourceLocations("classpath:/META-INF/resources/webjars/springfox-swagger-ui/");
        super.addResourceHandlers(registry);
    }

    @Override
    protected void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor()
                .addPathPatterns("/**")
                .excludePathPatterns("/swagger**/**")
                .excludePathPatterns("/webjars/**")
                .excludePathPatterns("/v3/**")
                .excludePathPatterns("/doc.html");
        super.addInterceptors(registry);
    }
}

3. Ant Path匹配规则

说明：

Wildcard	Description
?	匹配任意单个字符
*	匹配0或多个字符
**	匹配0或多级目录

例子：

Path	Description
/api/**	app路径下所有路径
/*/.html	任意html文件
/my/**	my开头的路径下的所有路径

总结

以上为个人经验，希望能给大家一个参考，也希望大家多多支持脚本之家。
