C++ STL 进阶:手写 priority_ueue 与仿函数机制详解

作者:Zhang~Ling

本文介绍了C++标准库中的priority_queue(优先级队列)及其实现原理,同时通过代码示例展示了仿函数在排序算法和条件判断中的实际应用,感兴趣的朋友一起看看吧

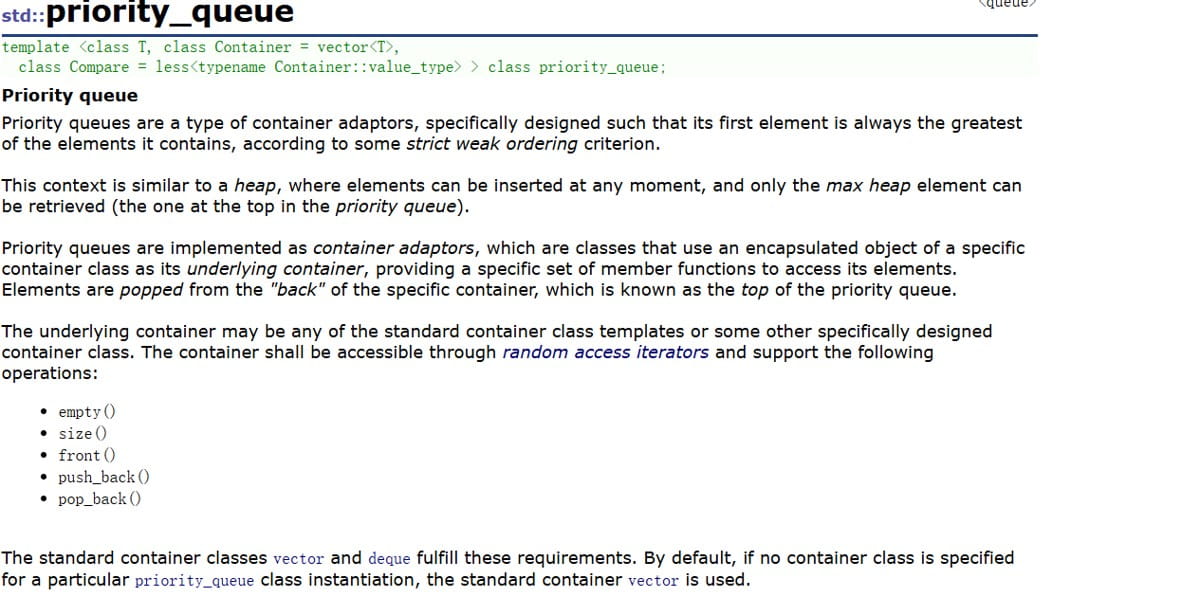

1. 引言:什么是priority_queue

1.1 基本概念

priority_queue 是 C++ 标准库中的一个容器适配器。它提供的是一种优先级队列的数据结构语义:

1.2 底层结构

priority_queue底层默认使用std::vector作为容器,并在其之上维护一个堆结构:

1.3 比较器的默认行为

priority_queue 有一个可选的模板参数 Compare,用于定义元素之间的优先级比较规则:

如果你需要小堆,可以显式传入 std::greater<T> 或自定义仿函数。

注意:比较器不是“必须写的”,它有默认行为。 是否显式提供,取决于你是否需要改变默认的排序规则。我们下面会对比较器进行显示构造来演示仿函数和比较器的行为。

2. priority_queue的核心实现

2.1 成员变量与默认构造

2.1.1 结构框架与默认构造

template<class T, class Container = vector<T>, class Compare = Less<T>>
//Container,Compare 是我们对库里面的结构进行了显示构造便于我们理解底层结构
class priority_queue {
public:
    priority_queue() = default;  // 编译器生成默认构造
private:
    Container _con;               // 底层容器
};

这里引出ContainerCompare我们下面的章节进行详细的解释

2.1.2 迭代器区间构造

构造结构:

template<class InputIterator>
priority_queue(InputIterator first, InputIterator last)
	:_con(first, last)
{
	//给一个迭代器区间构造优先队列的底层是堆结构
	//向下调整建队构造
	for (int i = (_con.size() - 1 - 1) / 2; i >= 0; i--) {
		adjust_down(i);
	}
}

因为存储底层结构是vector,逻辑结构是堆,所以说我们在构造的过程中就涉及到了建堆:(我们选择向下调整建堆,时间效率比向上建队高,具体原因这里不做阐述)
建堆时间复杂度O(N)。
向下调整算法:

void adjust_down(size_t parent) {
	Compare com;
	size_t child = parent * 2 + 1;
	while (child < _con.size()) {
		if (child + 1 < _con.size() && com(_con[child], _con[child + 1])) {
			child++;
		}
		// 如果 父节点优先级 < 孩子节点优先级,则交换
		// 在大堆中:parent < child -> com(parent, child) 为 true -> 交换
		// 在小堆中:parent > child -> com(parent, child) 为 true -> 交换
		if (com(_con[parent], _con[child])) {
			swap(_con[parent], _con[child]);
			parent = child;
			child = parent * 2 + 1;
		}
		else {
			break;
		}
	}
}

2.2 push插入数据

push逻辑:

void push(const T& x) {
    _con.push_back(x);
    adjust_up(_con.size() - 1);
}

插入数据并且需要维持堆结构,我们需要将插入的数据进行向上调整:

void adjust_up(size_t child) {
	Compare com;
	size_t parent = (child - 1) / 2;
	while (child > 0) {
		//if (_con[parent] < _con[child])
		if(com(_con[parent],_con[child])){
			swap(_con[parent], _con[child]);//调用的库里面的函数
			child = parent;
			parent = (child - 1) / 2;
		}
		else {
			break;
		}
	}
}

2.3 pop删除数据

void pop() {
	assert(!empty());
    std::swap(_con[0], _con[_con.size() - 1]);
    _con.pop_back();
    adjust_down(0);
}

2.4 top / empty / size

const T& top() const { return _con[0]; }
bool empty() const { return _con.empty(); }
size_t size() const { return _con.size(); }

对于上述的底层构造我们引出适配器模式和仿函数的使用,下面我们来详细解释一下👇👇👇

3. 适配器模式与priori_queue的设计

3.1 什么是适配器模式

适配器模式:把一个已有的东西包装一下,换个接口或者行为再使用。
(实际上就像手机充电线一样,有不同的接口来适配不同的手机。)
容器适配器:把底层容器包装成另一种数据结构。在这里说人话也就是将容器类型引入到模板里面,让你可以任意调用已有的底层容器的接口。

3.2 priority_queue的适配器设计

也就是:

template<class T, class Container = vector<T>, class Compare = Less<T>>
//Container让我们可以很轻松的更改priority_queue的底层存储逻辑
//这里只是给一个缺省值我们可以显示给的
class priority_queue {
    Container _con;
};

4. 仿函数

4.1 什么是仿函数

仿函数实际上就是将operator()进行了重载,让类和结构体可以像函数一样被调用。
仿函数的定义:

template<class T>
class Less {
public:
	bool operator()(const T& x, const T& y) {
		return x < y;
	}
};
template<class T>
class Greater {
public:
	bool operator()(const T& x, const T& y) {
		return x > y;
	}
};

4.2 仿函数的用法

4.2.1 作为比较器,控制容器或者算法的行为

实际上就是将容器的规则或者算法的规则作为参数传入,让容器或者算法的行为可以定制。
代码示例1:

int main() {
//默认使用 Less → 大堆
	ZL::priority_queue<int> pq1;
//显示指定Greater->建大堆
	ZL::priority_queue<int, vector<int>, Greater<int>> pq2;
	pq1.push(100);
	pq1.push(5);
	pq1.push(200);
	pq1.push(10);
	while (!pq1.empty()) {
		cout << pq1.top() << " ";
		pq1.pop();
	}
	return 0;
}

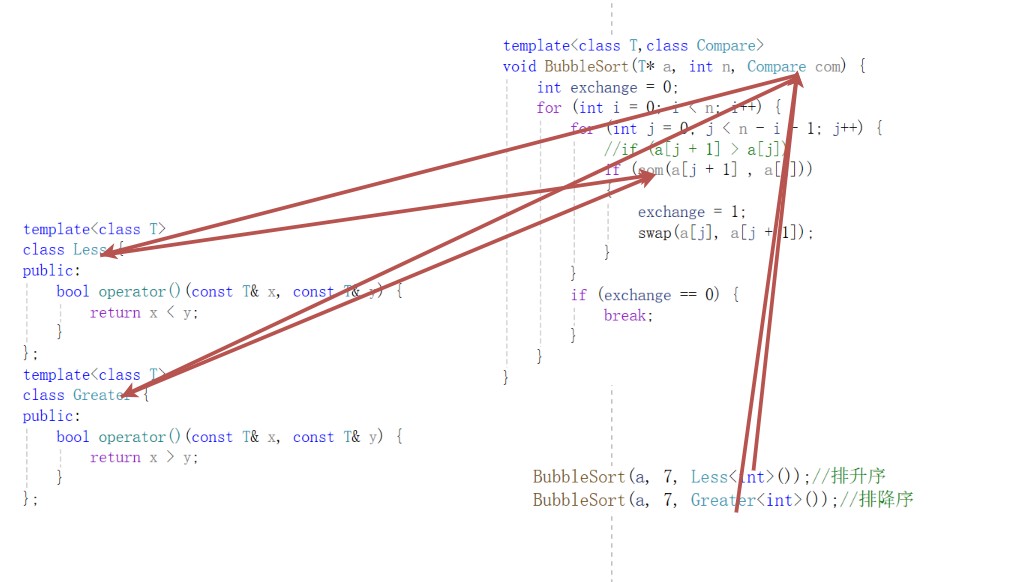

示例代码2:

template<class T, class Compare>
void BubbleSort(T* a, int n, Compare com) {
    for (int i = 0; i < n; ++i) {
        for (int j = 0; j < n - i - 1; ++j) {
            if (com(a[j + 1], a[j]))   // 比较规则由仿函数决定
                swap(a[j], a[j + 1]);
        }
    }
}
int main() {
	int a[] = { 1,3,4,5,6,3,2 };
	//让类可以像函数一样调用
	BubbleSort(a, 7, Less<int>());//排升序
	BubbleSort(a, 7, Greater<int>());//排降序
	for (auto ch : a) {
		cout << ch;//自动迭代不用++
	}
	cout << endl;
}

解释一下该过程:

4.2.2 作为判断条件或者作为转换规则

示例代码1:查找第一个偶数(作为判断条件)

struct OP1 {
	bool operator()(int x) {
		return x % 2 == 0;
	}
};
int main() {
	int a[] = { 1,3,2,9,1,3,4,5 };
	//查找第一个偶数
	auto it = find_if(a, a + 7, OP1());
	cout << *it << endl
	return 0;
}

示例代码2:将偶数都乘二(作为转换条件)

struct OP2 {
		int operator()(int x) {
			if (x % 2 == 0)
				return x * 2;
			else
				return x;
		}

};
int main() {
	//transform 是 C++ 标准库中的一个算法,用于对容器中的每个元素执行某种操作,并将结果存储到另一个位置。
	//它属于 <algorithm> 头文件。
	transform(v.begin(), v.end(), v.begin(), OP2());
	for (auto& e : v) {
		cout << e << " ";
	}
	cout << endl;
	return 0;
}

4.2.3 处理指针时自定义比较逻辑

下面截取日期代码的一部分做演示:

//struct PDateLess
//{
//	bool operator()(const Date* p1, const Date* p2)//仿函数
//	{
//	return *p1 < *p2;//这里能直接对存储地址解引用对比出谁的日期大是因为
//在日期结构体中对<运算符进行了重载
//	}
int main() {
	ZL::priority_queue<Date*, vector<Date*>, PDateLess> q1;
	q1.push(new Date(2018, 10, 29));
	q1.push(new Date(2018, 10, 28));
	q1.push(new Date(2018, 10, 30));
	while (!q1.empty()) {
		cout << *q1.top() << " ";
		q1.pop();
	}
	cout << endl;
	return 0;
}

这里自定义仿函数的原因是:指针的默认比较是按地址大小,而不是按 Date 对象的内容。通过仿函数可以“纠正”这个行为(也就是解引用获得存储在该地址里的内容)。

4.3 仿函数存在的意义

仿函数的存在实际上是C++想要摒弃函数指针的使用,仿函数提供了比函数指针更优的替代方案,在现代 C++ 中优先推荐使用仿函数或 lambda。

问题没有仿函数时的痛点有仿函数时的解决方式
算法需要多种行为写多个函数或用函数指针,效率低且不能内联把行为封装成仿函数,编译期内联,无额外开销
需要携带状态函数无法记住之前的调用信息仿函数可以有成员变量,在多次调用间保持状态
类型安全函数指针类型检查弱,容易传错仿函数作为类类型,类型检查更严格
与模板结合函数指针作为模板参数不自然仿函数是类型,作为模板参数使用方便
复杂规则封装难以复用一个仿函数类可以在多个地方复用

到此这篇关于C++ STL 进阶:手写 priority_ueue 与仿函数机制详解的文章就介绍到这了,更多相关C++ priority_ueue 与仿函数机制内容请搜索脚本之家以前的文章或继续浏览下面的相关文章希望大家以后多多支持脚本之家!
