mybatis-plus分表实现案例(附示例代码)

作者：言一木

MyBatis-Plus是一个MyBatis的增强工具,在 MyBatis 的基础上只做增强不做改变,为简化开发、提高效率而生,这篇文章主要介绍了mybatis-plus分表实现的相关资料,文中通过代码介绍的非常详细,需要的朋友可以参考下

文档说明

基于springboot框架下mybatis-plus 3.5.5的分表案例和分表实现思路

数据库水平分表思路

1. 为什么要水平分表

•单表数据量过大（千万/亿级）：索引膨胀、查询慢、写入压力大
•单机存储瓶颈：一张表的数据撑爆单库存储
•高并发读写：热点表（如订单表、日志表）写入成为瓶颈

2. 核心设计要点

① 确定分片键（Sharding Key）

•分表路由的依据
•要保证每次数据操作都能带上分片键
•常见分片键：user_id、zone_code、tenant_id、时间字段

② 选择分片规则

•范围分表
按时间区间（如 order_202501、order_202502）
   ✅ 适合日志、订单等时间序列数据
   ❌ 跨区间查询不方便

•哈希分表
对分片键取模（如 user_id % 8 → 8 张表）
   ✅ 分布均匀，避免热点
   ❌ 不方便做范围查询

•混合分表
先按业务维度（库级别），再在库内取模或按时间分表

3.基于数据库水平分表注意事项

1.目前基于mybatis-plus分表方案，只能实现单次查询单表操作，如果涉及到单次查询跨表操作就必须引入三方组件来实现（ps：ShardingSphere ）
2.分页或者列表查询基于mybatis-plus组件不支持组件纬度跨片查询，此时只能从业务或者分片规则上做调整，比如以年份作为分片条件，列表查询强制要求用户选择时间再进行查询
3.库表必须预先创建好，预先规划好数据量
4.在触发分表操作前必须能拿到分片条件

示例代码

测试表

-- ----------------------------
-- Table structure for user_1
-- ----------------------------
DROP TABLE IF EXISTS `user_1`;
CREATE TABLE `user_1`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `name` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `age` int(2) NULL DEFAULT NULL,
  `email` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for user_2
-- ----------------------------
DROP TABLE IF EXISTS `user_2`;
CREATE TABLE `user_2`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `name` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `age` int(2) NULL DEFAULT NULL,
  `email` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for user_3
-- ----------------------------
DROP TABLE IF EXISTS `user_3`;
CREATE TABLE `user_3`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `name` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `age` int(2) NULL DEFAULT NULL,
  `email` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

pom依赖

        <dependency>
            <artifactId>gpmscloud-framework-mybatis-common</artifactId>
            <groupId>com.bosssoft.gpmscloud</groupId>
            <version>${gpmscloud.version}</version>
        </dependency>

properties配置

spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://192.168.xxx.xxx:xxxxx/gpx_basic?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&serverTimezone=GMT%2B8&useSSL=false&autoReconnect=true
spring.datasource.username=xxx
spring.datasource.password=xxx

spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.druid.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.druid.url=jdbc:mysql://192.168.xxx.xxx:xxxxx/gpx_basic?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&serverTimezone=GMT%2B8&useSSL=false&autoReconnect=true
spring.datasource.druid.username=xxx
spring.datasource.druid.password=xxx

*mybatisplus分表实现类

@Configuration
public class MybatisPlusBasicPlatformConfig {

    @Bean
    public MybatisPlusInterceptor multipleTablesBasicPlatformPlusInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
        DynamicTableNameInnerInterceptor dynamicTableNameInnerInterceptor = new DynamicTableNameInnerInterceptor();
        dynamicTableNameInnerInterceptor.setTableNameHandler((sql, tableName) -> {
            if (ThreadContextHandler.getThreadLocal().containsKey("tableType")) {
                String tableType = (String) ThreadContextHandler.getThreadLocal().get("tableType");
                return tableName + "_" + tableType;
            } else {
                throw new RuntimeException("未设置分表配置");
            }
        });
        interceptor.addInnerInterceptor(dynamicTableNameInnerInterceptor);
        return interceptor;
    }
}

验证代码

@Data
@Accessors(chain = true)
@TableName(value = "user")
public class User {

    private Long id;
    private String name;
    private Integer age;
    private String email;
}

public interface UserMapper extends BaseMapper<User> {

    User test();

    User test2();
}

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.bosssoft.gpmscloud.framework.test.mapper.UserMapper">

    <resultMap type="com.bosssoft.gpmscloud.framework.test.model.po.User" id="UserMapper">
        <result property="id" column="id" jdbcType="INTEGER"/>
        <result property="name" column="resource_id" jdbcType="VARCHAR"/>
        <result property="age" column="white_list" jdbcType="INTEGER"/>
        <result property="email" column="black_list" jdbcType="VARCHAR"/>
    </resultMap>

    <select id="test" resultMap="UserMapper" parameterType="java.lang.String">
        select id, name, age, email from user
    </select>

    <select id="test2" resultMap="UserMapper" parameterType="java.lang.String">
        select u1.id, u2.name, u2.age, u2.email from user u1
        left join user u2 on u1.user_id = u2.user_id
    </select>


</mapper>


@RestController
@Slf4j
@RequestMapping("/test/multipleTables")
public class MultipleTablesController {

    @Resource
    private UserMapper userMapper;

    /**
     * 验证自动生成库表
     */
    @ApiOperation("test")
    @GetMapping("/test")
    public Result<Boolean> testQuery() {
        ThreadContextHandler.getThreadLocal().put("tableType", "1");
        userMapper.selectList(null);

        ThreadContextHandler.getThreadLocal().put("tableType", "2");
        User user = new User();
        user.setId(1L);
        user.setName("Name");
        user.setAge(1);
        user.setEmail("EMAIL");
        userMapper.insert(user);

        ThreadContextHandler.getThreadLocal().put("tableType", "2");
        userMapper.deleteById(1L);

        ThreadContextHandler.getThreadLocal().put("tableType", "3");
        userMapper.selectList(null);
        return Result.ok(true);
    }

    /**
     * 验证单表和多表自定义xml操作
     */
    @ApiOperation("testXml")
    @GetMapping("/testXml")
    public Result<Boolean> testXml() {
        ThreadContextHandler.getThreadLocal().put("tableType", "2");
        userMapper.test();
        userMapper.test2();
        return Result.ok(true);
    }
}

验证截图

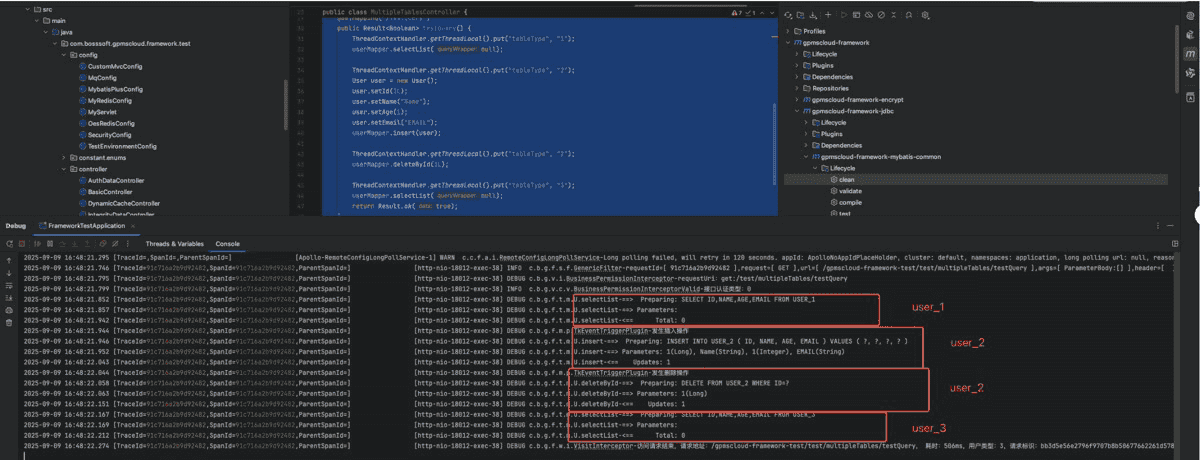

验证mybatisplus内置构建SQL 动态分表

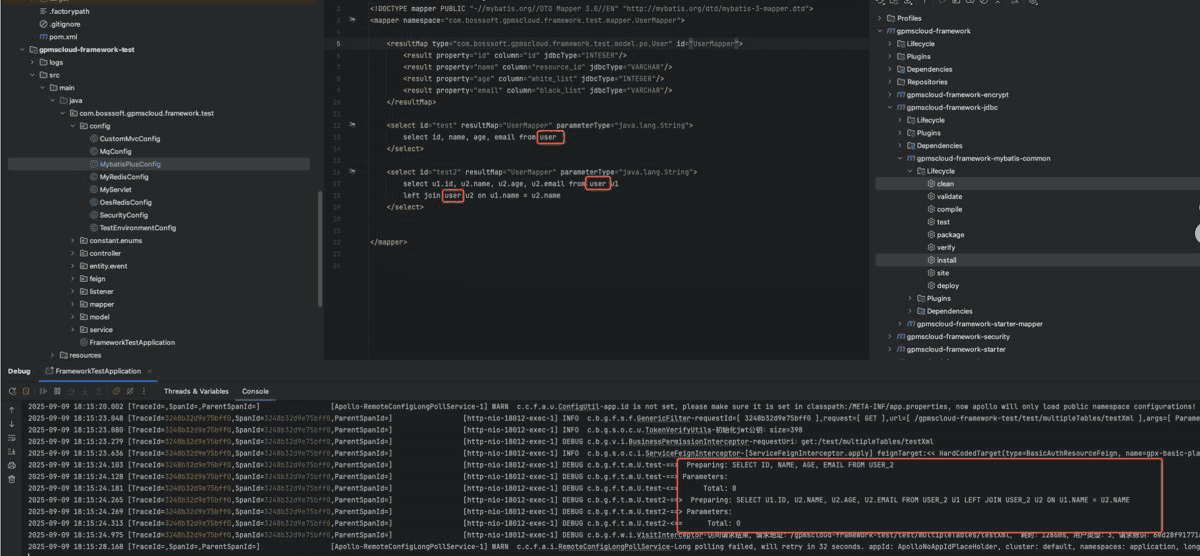

验证xml SQL 动态分表

业务分库分表实现(mybatis-plus)

1.基于上下文内tableType数据进行分表读写，这里需要注意Configuration类命名最好带上服务名,MybatisPlusInterceptor类也是，这样主要是为了避免bean名称冲突
2.业务可以通过上下文参数进行分表参数传递

@Configuration
public class MybatisPlusBasicPlatformConfig {

    @Bean
    public MybatisPlusInterceptor multipleTablesBasicPlatformPlusInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
        DynamicTableNameInnerInterceptor dynamicTableNameInnerInterceptor = new DynamicTableNameInnerInterceptor();
        dynamicTableNameInnerInterceptor.setTableNameHandler((sql, tableName) -> {
            if (ThreadContextHandler.getThreadLocal().containsKey("tableType")) {
                String tableType = (String) ThreadContextHandler.getThreadLocal().get("tableType");
                return tableName + "_" + tableType;
            } else {
                throw new RuntimeException("未设置分表配置");
            }
        });
        interceptor.addInnerInterceptor(dynamicTableNameInnerInterceptor);
        return interceptor;
    }
}

总结

到此这篇关于mybatis-plus分表实现的文章就介绍到这了,更多相关mybatis-plus分表实现内容请搜索脚本之家以前的文章或继续浏览下面的相关文章希望大家以后多多支持脚本之家！
