C++中stack和queue的用法及说明
作者:一只没有感情的bug
前言
在 C++ 中,stack(栈)和 queue(队列)是两种常用的容器适配器,分别用于管理数据的后进先出(LIFO)和先进先出(FIFO)访问模式。
本文将详细介绍这两种数据结构的基本概念、常见操作及其在 C++ 中的实现,并探讨与其相关的设计模式。
1.stack的介绍和实现
1.1 Stack 的基本概念

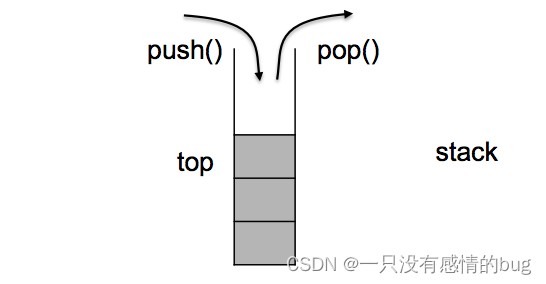

Stack 是一种后进先出(LIFO, Last In First Out)的数据结构。这意味着最新添加的元素最先被移除。
- 常见的操作包括:
函数说明 | 接口说明 |
stack() | 构造空的栈 |
empty() | 检测stack是否为空 |
size() | 返回stack中元素的个数 |
top() | 返回栈顶元素的引用 |
push() | 将元素val压入stack中 |
pop() | 将stack中尾部的元素弹出 |
1.2 Stack 的模拟实现
以下是一个基于 C++ 模板的栈实现,默认情况下使用 deque
作为底层容器。通过模板参数,用户可以指定其他支持相同操作的容器类型(如 vector
)。
template <class T, class Container = deque<T>> // 缺省值 class MyStack { public: void push(const T& x) { _con.push_back(x); } void pop() // 不支持 第二个参数是vectot<T>的原因是它没有pop_front(),但仍可以变向的实现 { // 这样就可以支持vector了,但效率就很低了 // _con.erase(bebin()); _con.pop_back(); } const T& top() { return _con.back(); } bool empty() { return _con.empty(); } size_t size() { return _con.size(); } private: Container _con; };
1.3 自定义 Stack 的使用
#include "stack_queue.h" int main() { // 栈: cout << "STACK :" << endl; bit::MyStack <int, list<int >> st1; bit::MyStack <int, deque<int >> st2; st1.push(1); st1.push(2); st1.push(3); st2.push(4); st2.push(5); st2.push(6); while (!st1.empty()) { cout << st1.top() << " "; st1.pop(); } cout << endl; while (!st2.empty()) { cout << st2.top() << " "; st2.pop(); } cout << endl;
输出:
STACK : 3 2 1 6 5 4
OJ上的使用
最小栈
class MinStack { stack<int> x_stack; stack<int> min_stack; public: MinStack() { min_stack.push(INT_MAX); } void push(int x) { x_stack.push(x); min_stack.push(min(min_stack.top(), x)); } void pop() { x_stack.pop(); min_stack.pop(); } int top() { return x_stack.top(); } int getMin() { return min_stack.top(); } };
栈的压入、弹出序列
class Solution { public: bool IsPopOrder(vector<int>& pushV, vector<int>& popV) { if (pushV.size() != popV.size()) return false; stack<int> stk; int popIndex = 0; for (int i = 0; i < pushV.size(); ++i) { stk.push(pushV[i]); while (!stk.empty() && stk.top() == popV[popIndex]) { stk.pop(); ++popIndex; } } return stk.empty(); } };
逆波兰表达式求值
class Solution { public: int evalRPN(vector<string>& tokens) { stack<int> s; for (size_t i = 0; i < tokens.size(); ++i) { string& str = tokens[i]; // str为数字 if (!("+" == str || "-" == str || "*" == str || "/" == str)) { s.push(atoi(str.c_str())); } else { // str为操作符 int right = s.top(); s.pop(); int left = s.top(); s.pop(); switch (str[0]) { case '+': s.push(left + right); break; case '-': s.push(left - right); break; case '*': s.push(left * right); break; case '/': // 题目说明了不存在除数为0的情况 s.push(left / right); break; } } } return s.top(); } };
用两个栈实现队列
#include <stack> using namespace std; class MyQueue { private: stack<int> A; // 栈 A,用于存储新加入的元素 stack<int> B; // 栈 B,用于反转 A 中的元素以实现队列的 FIFO 特性 public: // 初始化数据结构 MyQueue() {} // 将元素 x 推到队列的末尾 void push(int x) { A.push(x); // 直接将元素压入栈 A } // 从队列前端移除元素并返回该元素 int pop() { int peek = this->peek(); // 获取队列前端的元素 B.pop(); // 从栈 B 中移除该元素 return peek; // 返回被移除的元素 } // 获取队列前端的元素 int peek() { // 如果栈 B 非空,直接返回栈 B 的栈顶元素 if (!B.empty()) return B.top(); // 如果栈 A 也为空,返回 -1 表示队列为空 if (A.empty()) return -1; // 将栈 A 中的所有元素移动到栈 B 中,以反转元素顺序 while (!A.empty()) { B.push(A.top()); A.pop(); } // 返回栈 B 的栈顶元素,即队列前端的元素 return B.top(); } // 返回队列是否为空 bool empty() { // 如果栈 A 和栈 B 都为空,表示队列为空 return A.empty() && B.empty(); } };
2.queue的介绍和实现
2.1 Queue 的基本概念
Queue 是一种先进先出(FIFO, First In First Out)的数据结构。这意味着最先添加的元素最先被移除。
- 常见的操作包括:
函数声明 | 接口说明 |
queue() | 构造空的队列 |
empty() | 检测队列是否为空,是返回true,否则返回false |
size() | 返回队列中有效元素的个数 |
front() | 返回队头元素的引用 |
back() | 返回队尾元素的引用 |
push() | 在队尾将元素val入队列 |
pop() | 将队头元素出队列 |
2.2 Queue 的模拟实现
以下是一个基于 C++ 模板的队列实现,默认情况下使用 deque
作为底层容器。通过模板参数,用户可以指定其他支持相同操作的容器类型(如 list
)。
// 队列的实现: template <class T, class Container = deque<T>> // 缺省值 class MyQueue { public: void push(const T& x) { _con.push_back(x); } void pop() { _con.pop_front(); } const T& front() { return _con.front(); } bool empty() { return _con.empty(); } size_t size() { return _con.size(); } private: Container _con; };
2.3 自定义 Queue 的使用
#include "stack_queue.h" int main() { // 队列: cout << "QUEUE :" << endl; bit::MyQueue <int, list<int >> q1; bit::MyQueue <int, deque<int >> q2; q1.push(1); q1.push(2); q1.push(3); q2.push(4); q2.push(5); q2.push(6); while (!q1.empty()) { cout << q1.front() << " "; q1.pop(); } cout << endl; while (!q2.empty()) { cout << q2.front() << " "; q2.pop(); } return 0; }
输出:
QUEUE : 1 2 3 4 5 6
OJ上的使用
用两个队列实现栈
#include <queue> using namespace std; class MyStack { public: queue<int> queue1; // 主队列,用于存储栈中的元素 queue<int> queue2; // 辅助队列,用于帮助元素的重新排列 // 初始化数据结构 MyStack() {} // 将元素 x 压入栈 void push(int x) { // 将新元素压入辅助队列 queue2.push(x); // 将主队列中的所有元素移到辅助队列中 while (!queue1.empty()) { queue2.push(queue1.front()); queue1.pop(); } // 交换主队列和辅助队列 swap(queue1, queue2); } // 移除并返回栈顶元素 int pop() { int r = queue1.front(); // 获取栈顶元素 queue1.pop(); // 移除栈顶元素 return r; // 返回栈顶元素 } // 获取栈顶元素 int top() { return queue1.front(); // 返回栈顶元素 } // 判断栈是否为空 bool empty() { return queue1.empty(); // 返回主队列是否为空 } };
3. 设计模式
设计模式
- 常见的设计模式共有 23 种。
适配器模式 -- 封装转换
- 适配器模式是一种结构型设计模式,它允许接口不兼容的对象协同工作。
- 栈和队列的实现正是通过适配器模式来封装不同的底层容器(如
deque
、vector
等),提供统一的接口。
迭代器模式 -- 统一访问方式 (数据结构访问都可以用)
- 迭代器模式是一种行为型设计模式,它提供一种方法顺序访问一个聚合对象中的各个元素,而不需要暴露该对象的内部表示。
- 在栈和队列的实现中,虽然没有直接使用迭代器模式,但它们的底层容器(如
deque
)本身支持迭代器,这使得我们可以通过迭代器访问容器中的元素。

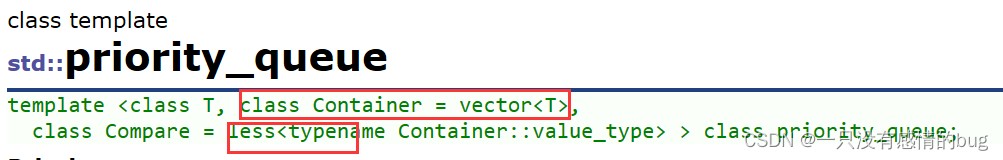

4.priority_queue的介绍和实现
通过对priority_queue的底层结构就是堆,因此此处只需对对进行通用的封装即可。
4.1 priority_queue的使用
使用priority_queue的关键点
- 默认大顶堆:
priority_queue<int>
,使用默认的less<int>
比较函数,因此它是一个大顶堆。 - 小顶堆:
priority_queue<int, vector<int>, greater<int>>
,通过传递greater<int>
作为比较函数,使其成为小顶堆。 - 需要指定容器类型:当指定比较函数(如
greater<int>
或less<int>
)时,也必须显式指定底层容器类型(通常是vector<int>
)。
4.1.1 C++ 标准库中
代码 :
// 库中优先队列的使用 #include <iostream> #include <vector> #include <queue> using namespace std; int main() { vector<int> v = { 3,2,7,6,0,4,1,9,8,5 }; // 优先队列(堆) /* priority_queue<int> q1; for (auto e : v) q1.push(e); */ // priority_queue<int> q1(v.begin(), v.end()); int a[] = { 3,2,7,6,0,4,1,9,8,5 }; priority_queue<int, vector<int>, greater<int>> q1(a, a + sizeof(a) / sizeof(int));//小堆 priority_queue<int, vector<int>, less<int>> q2(a, a + sizeof(a) / sizeof(int));//大堆 while (!q1.empty()) { cout << q1.top() << " "; q1.pop();// 删除堆顶元素 } cout << endl; while (!q2.empty()) { cout << q2.top() << " "; q2.pop();// 删除堆顶元素 } return 0; }
输出:
0 1 2 3 4 5 6 7 8 9 9 8 7 6 5 4 3 2 1 0
4.1.2 自定义优先队列
PriorityQueue.h
#pragma once #include <vector> #include <algorithm> // for std::swap using namespace std; namespace bit { template<class T> struct myless { bool operator()(const T& x, const T& y) const { return x < y; } }; template<class T> struct mygreater { bool operator()(const T& x, const T& y) const { return x > y; } }; template<class T, class Container = vector<T>, class Compare = mygreater<T>> class priority_queue { public: priority_queue() = default; template <class InputIterator> priority_queue(InputIterator first, InputIterator last) { while (first != last) { _con.push_back(*first); ++first; } // 建堆 for (int i = (_con.size() - 1 - 1) / 2; i >= 0; --i) { adjust_down(i); } } void adjust_up(int child) { Compare comfunc; int parent = (child - 1) / 2; while (child > 0) { if (comfunc(_con[child], _con[parent])) { swap(_con[child], _con[parent]); child = parent; parent = (child - 1) / 2; } else { break; } } } void push(const T& x) { _con.push_back(x); adjust_up(_con.size() - 1); } void adjust_down(int parent) { Compare comfunc; int size = _con.size(); int child = 2 * parent + 1; while (child < size) { if (child + 1 < size && comfunc(_con[child + 1], _con[child])) { child++; } if (comfunc(_con[child], _con[parent])) { swap(_con[parent], _con[child]); parent = child; child = 2 * parent + 1; } else { break; } } } const T& top() const { return _con.front(); } void pop() { if (!_con.empty()) { swap(_con.front(), _con.back()); _con.pop_back(); if (!_con.empty()) { adjust_down(0); } } } bool empty() const { return _con.empty(); } size_t size() const { return _con.size(); } private: Container _con; }; }
test.cpp
#include "PriorityQueue.h" #include <iostream> #include <queue> using namespace std; class Date { public: // 默认构造函数,使用初始化列表初始化年、月、日 Date(int year = 1900, int month = 1, int day = 1) : _year(year), _month(month), _day(day) {} // 重载小于运算符 bool operator<(const Date& d) const { return (_year < d._year) || (_year == d._year && _month < d._month) || (_year == d._year && _month == d._month && _day < d._day); } // 重载大于运算符 bool operator>(const Date& d) const { return (_year > d._year) || (_year == d._year && _month > d._month) || (_year == d._year && _month == d._month && _day > d._day); } // 重载等于运算符 bool operator==(const Date& d) const { return _year == d._year && _month == d._month && _day == d._day; } // 重载不等于运算符 bool operator!=(const Date& d) const { return !(*this == d); } // 输出日期 friend std::ostream& operator<<(std::ostream& os, const Date& d) { os << d._year << "-" << d._month << "-" << d._day; return os; } private: int _year; int _month; int _day; }; // 库中的priority_queue使用 void TestPriorityQueue1() { Date date1(2023, 6, 9); Date date2(2024, 1, 1); Date date3(2018, 9, 10); priority_queue<Date> q;// 默认大堆 q.push(date1); q.push(date2); q.push(date3); while (!q.empty()) { cout << q.top() << endl; q.pop(); } } class PDateLess { public: bool operator()(Date* p1, Date* p2) { return *p1 < *p2; } }; void TestPriorityQueue2() { bit::priority_queue<Date*, vector<Date*>, PDateLess> q; q.push(new Date(2023, 6, 9)); q.push(new Date(2024, 1, 1)); q.push(new Date(2018, 9, 10)); while (!q.empty()) { cout << *q.top() << endl; q.pop(); } } int main() { // 大堆,需要用户在自定义类型中提供比较的重载 // priority_queue<Date*, vector<Date*>, PDateLess> q1; TestPriorityQueue1(); cout << "-----------------------" << endl; TestPriorityQueue2(); return 0; }
输出:
2024-1-1 2023-6-9 2018-9-10 ----------------------- 2018-9-10 2023-6-9 2024-1-1

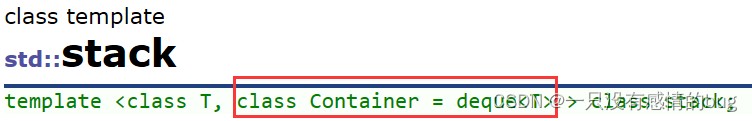

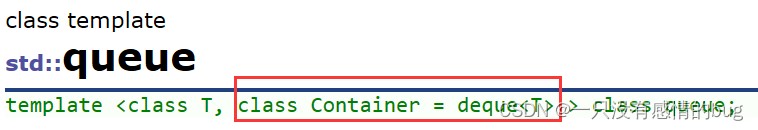

5. STL标准库中stack和queue的底层结构
虽然stack和queue中也可以存放元素,但在STL中并没有将其划分在容器的行列,而是将其称为容器适配 器,这是因为stack和队列只是对其他容器的接口进行了包装,STL中stack和queue默认使用deque,比如:
6. deque的简单介绍

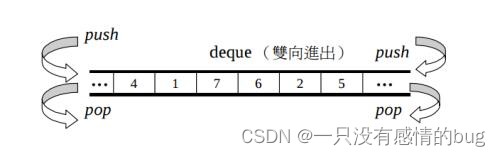

deque
(双端队列)是一种双开口的“连续”空间的数据结构,双开口的含义是:可以在头尾两端进行插入和删除操作,且时间复杂度为 O(1)。
与 vector
比较,deque
在头部插入时效率更高,因为不需要搬移元素;与 list
比较,deque
的空间利用率更高。
deque
并不是真正连续的空间,而是由一段段连续的小空间拼接而成的,实际deque类似于一个动态的二维数组,其底层结构如下图所示:

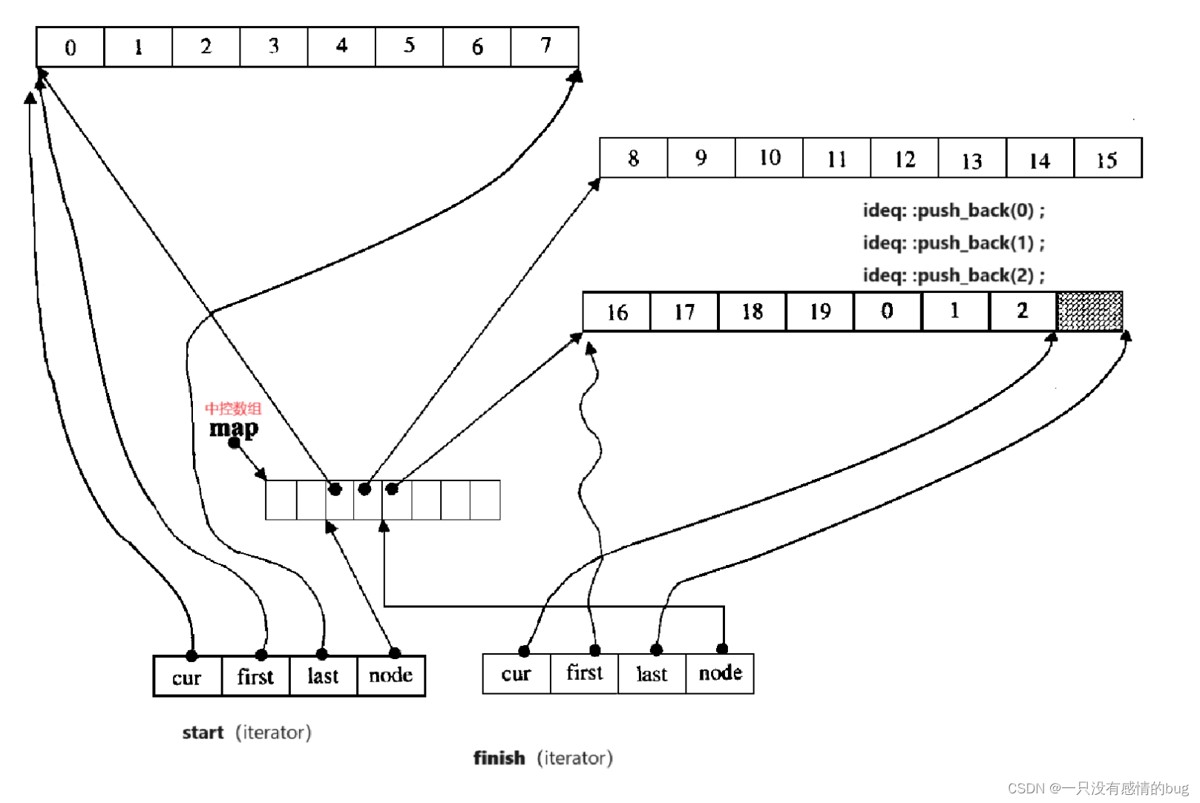

双端队列底层是一段假象的连续空间,实际是分段连续的,为了维护其“整体连续”以及随机访问的假象,落 在了deque
的迭代器身上,因此deque
的迭代器设计就比较复杂,如下图所示:
那deque是如何借助其迭代器维护其假想连续的结构呢?
deque 的缺陷
deque
有一个致命缺陷:不适合遍历,因为在遍历时,deque
的迭代器要频繁地检测是否移动到某段小空间的边界,导致效率低下。
而在序列式场景中,可能需要经常遍历。
因此在实际中,需要线性结构时,大多数情况下优先考虑 vector
和 list
,deque
的应用并不多。
而目前能看到的一个应用就是,STL 用其作为 stack
和 queue
的底层数据结构。
以下通过对大量数据排序来证明遍历 queue
导致的效率很低
遍历queue的性能比较
#include <iostream> #include <deque> #include <vector> #include <algorithm> using namespace std; int main() { // vector与deque的性能对比(相同的结构,相同的访问) srand(time(0)); deque<int> dq1; deque<int> dq2; int N = 1000000; for (int i = 0;i < N;++i) { auto e = rand() + i; dq1.push_back(e); dq2.push_back(e); } int begin1 = clock(); sort(dq1.begin(), dq1.end()); int end1 = clock(); int begin2 = clock(); //拷贝到vector vector<int> v(dq1.begin(), dq1.end()); sort(v.begin(), v.end()); //拷贝回deque dq2.assign(v.begin(), v.end()); // 迭代区间赋值 int end2 = clock(); cout << "deque sort: " << end1 - begin1 << endl; cout << "deque copy vector sort, copy back deque: " << end2 - begin2 << endl; return 0; }
输出:
deque sort: 1456 deque copy vector sort, copy back deque: 198
对于大规模数据的访问,显然 deque
效率落入下风。
总结
尽管 deque
在某些方面具有优势,但由于其遍历性能较低和内存管理复杂等缺陷,在需要频繁遍历或要求高效随机访问的场景中,vector
和 list
通常是更好的选择。因此,在实际应用中,deque
的使用相对较少,主要用于特定场景,如 stack
和 queue
的底层数据结构。
为什么选择 deque 作为 stack 和 queue 的底层默认容器?
stack
是一种后进先出的特殊线性数据结构,因此只要具有 push_back()
和 pop_back()
操作的线性结构,都可以作为 stack
的底层容器,比如 vector
和 list
都可以;queue
是先进先出的特殊线性数据结构,只要具有 push_back()
和 pop_front()
操作的线性结构,都可以作为 queue
的底层容器,比如 list
。
选择 deque
作为 stack
和 queue
的底层默认容器主要是由于 deque
的特性能够很好地满足这两种数据结构的需求。以下是详细的原因:
1. 只需要在固定的一端或两端进行操作
stack
和 queue
主要在固定的一端或两端进行操作:
stack
:后进先出(LIFO),主要在末端进行插入和删除操作。queue
:先进先出(FIFO),在前端删除,在末端插入。
由于 deque
(双端队列)支持在两端进行高效的插入和删除操作,因此非常适合用于实现 stack
和 queue
。
2. 扩展效率
deque
vs vector
:
- 当
deque
扩展时,不需要像vector
那样搬移整个数组。deque
是分段存储的,扩展时只需增加新的块,而不是搬移整个容器中的元素。 - 这使得
deque
在元素增长时具有更高的效率,因为deque
避免了大量的内存复制。
3. 内存使用效率
deque
vs list
:
list
是链表结构,虽然在插入和删除时也很高效,但它的节点需要额外的内存来存储指针,并且每次操作都需要动态分配内存,导致内存利用率较低。deque
是基于分段的动态数组,内存利用率更高,因为每个块的内存分配是连续的,且不需要额外的指针开销。
4. CPU 缓存命中率
连续内存块带来的优势:
deque
的每个块都是连续的内存,尽管整个deque
是分段存储的。- 这种设计相比于链表,具有更高的 CPU 缓存命中率,因为访问同一个块中的元素时,能更好地利用 CPU 缓存。
7. 双端队列的模拟实现
1. 主类Deque
这是 deque
的主类,用于实现双端队列的基本操作和管理。
template <typename T> class Deque { public: class Iterator; Deque(); // 构造函数 void push_back(const T& value); // 在尾部插入元素 void push_front(const T& value); // 在头部插入元素 void pop_back(); // 删除尾部元素 void pop_front(); // 删除头部元素 Iterator begin() const; // 返回双端队列的开始迭代器 Iterator end() const; // 返回双端队列的结束迭代器 bool isEmpty() const; // 判断双端队列是否为空 private: T** map; // 指向块的指针数组 size_t map_size; // 中控数组的大小 Iterator start; // 开始迭代器 Iterator finish; // 结束迭代器 void allocateBlock(bool atFront = false); // 分配新的块 };
2. 迭代器类Iterator
这是 deque
的迭代器类,用于实现遍历双端队列中的元素。
template <typename T> class Iterator { public: T* cur; // 当前元素的指针 T* first; // 当前块的起始位置的指针 T* last; // 当前块的结束位置的指针 T** node; // 指向中控数组中当前块的指针 Iterator(); // 默认构造函数 Iterator(T* cur, T* first, T* last, T** node); // 带参数的构造函数 T& operator*() const; // 解引用操作符 Iterator& operator++(); // 前置自增操作符 Iterator operator++(int); // 后置自增操作符 Iterator& operator--(); // 前置自减操作符 Iterator operator--(int); // 后置自减操作符 bool operator==(const Iterator& other) const; // 相等比较操作符 bool operator!=(const Iterator& other) const; // 不等比较操作符 };
因为 Iterator
类的操作会更新指针成员 cur
、start
等,确保它们始终指向有效的内存区域,因此不会出现释放内存导致悬空指针的情况。
在 Deque
类中,Iterator
对象的生命周期受到 Deque
对象的控制,在 Deque
的生命周期内,Iterator
对象的指针成员都是有效的。
3. 构造函数和常规操作
// 前向声明 Iterator 类 class Iterator; // 默认构造 Deque() : map(nullptr), map_size(0) { allocateBlock(); start.node = finish.node = map; start.cur = finish.cur = *start.node + BLOCK_SIZE / 2; start.first = finish.first = *start.node; start.last = finish.last = *start.node + BLOCK_SIZE; } // 尾插 void push_back(const T& value) { if (finish.cur == finish.last) { allocateBlock(); ++finish.node; finish.first = *finish.node; finish.last = finish.first + BLOCK_SIZE; finish.cur = finish.first; } *finish.cur = value; ++finish.cur; } // 头插 void push_front(const T& value) { if (start.cur == start.first) { allocateBlock(true); --start.node; start.first = *start.node; start.last = start.first + BLOCK_SIZE; start.cur = start.last; } --start.cur; *start.cur = value; } // 尾删 void pop_back() { if (isEmpty()) { throw std::out_of_range("Deque is empty"); // 异常处理 } if (finish.cur == finish.first) { --finish.node; finish.first = *finish.node; finish.last = finish.first + BLOCK_SIZE; finish.cur = finish.last; } --finish.cur; } // 头删 void pop_front() { if (isEmpty()) { throw std::out_of_range("Deque is empty"); // 异常处理 } if (start.cur == start.last) { ++start.node; start.first = *start.node; start.last = start.first + BLOCK_SIZE; start.cur = start.first; } ++start.cur; } Iterator begin() const { return start; } Iterator end() const { return finish; } bool isEmpty() const { return start == finish; }
后面我们包装在主类dqeue中,便于管理
4. 内部实现和辅助函数
void allocateBlock(bool atFront = false) // 分配新的块 { T** new_map = new T * [map_size + 1]; // 中控数组的空间大小+1,存放增加的块 for (size_t i = 0; i < map_size; ++i) { new_map[i + (atFront ? 1 : 0)] = map[i]; // 如果 atFront 为 false,则 map 中的内容保持原位置 } new_map[atFront ? 0 : map_size] = new T[BLOCK_SIZE];// 为新的块分配空间 delete[] map; // 释放旧的 map 内存。 map = new_map; // map 指向新的指针数组 new_map。 ++map_size; if (atFront) // 如果在前端分配新的块,调整 start 和 finish 迭代器的 node 指针,确保它们指向正确的位置。 { //这一步是必要的,因为在 map 前端插入新的块后,这将导致原本的所有块指针都需要向后移动一位。 ++start.node; ++finish.node; } }
8. 完整代码及演示
deque.h
#pragma once #include <iostream> #include <stdexcept> // 提供了标准化的方式来报告和处理错误 #include <vector> const size_t BLOCK_SIZE = 8; // 块的大小 template <typename T> class Deque { public: // 前向声明 Iterator 类 class Iterator; // 默认构造 Deque() : map(nullptr), map_size(0) { allocateBlock(); start.node = finish.node = map; start.cur = finish.cur = *start.node + BLOCK_SIZE / 2; start.first = finish.first = *start.node; start.last = finish.last = *start.node + BLOCK_SIZE; } // 尾插 void push_back(const T& value) { if (finish.cur == finish.last) { allocateBlock(); ++finish.node; finish.first = *finish.node; finish.last = finish.first + BLOCK_SIZE; finish.cur = finish.first; } *finish.cur = value; ++finish.cur; } // 头插 void push_front(const T& value) { if (start.cur == start.first) { allocateBlock(true); --start.node; start.first = *start.node; start.last = start.first + BLOCK_SIZE; start.cur = start.last; } --start.cur; *start.cur = value; } // 尾删 void pop_back() { if (isEmpty()) { throw std::out_of_range("Deque is empty"); // 异常处理 } if (finish.cur == finish.first) { --finish.node; finish.first = *finish.node; finish.last = finish.first + BLOCK_SIZE; finish.cur = finish.last; } --finish.cur; } // 头删 void pop_front() { if (isEmpty()) { throw std::out_of_range("Deque is empty"); // 异常处理 } if (start.cur == start.last) { ++start.node; start.first = *start.node; start.last = start.first + BLOCK_SIZE; start.cur = start.first; } ++start.cur; } Iterator begin() const { return start; } Iterator end() const { return finish; } bool isEmpty() const { return start == finish; } class Iterator { public: T* cur; // 当前元素的指针 T* first; // 当前块的起始位置的指针 T* last; // 当前块的结束位置的指针 T** node; // 指向中控数组中当前块的指针 // 默认构造函数 Iterator() : cur(nullptr), first(nullptr), last(nullptr), node(nullptr) {} // 带参数的构造函数 Iterator(T* cur, T* first, T* last, T** node) : cur(cur), first(first), last(last), node(node) {} T& operator*() const // 解引用操作符 { return *cur; } Iterator& operator++() // 前置自增操作符 { ++cur; if (cur == last) { ++node; first = *node; last = first + BLOCK_SIZE; cur = first; } return *this; } Iterator operator++(int) // 后置自增操作符 { Iterator temp = *this; ++(*this); return temp; } Iterator& operator--() // 前置自减操作符 { if (cur == first) { --node; first = *node; last = first + BLOCK_SIZE; cur = last; } --cur; return *this; } Iterator operator--(int) // 后置自减操作符 { Iterator temp = *this; --(*this); return temp; } bool operator==(const Iterator& other) const // 相等比较操作符 { return cur == other.cur; } bool operator!=(const Iterator& other) const // 不等比较操作符 { return !(*this == other); } }; private: T** map; // 指向块的指针数组 size_t map_size; // 中控数组的大小 Iterator start; // 开始迭代器 Iterator finish; // 结束迭代器 void allocateBlock(bool atFront = false) // 分配新的块 { T** new_map = new T * [map_size + 1]; // 中控数组的空间大小+1,存放增加的块 for (size_t i = 0; i < map_size; ++i) { new_map[i + (atFront ? 1 : 0)] = map[i]; // 如果 atFront 为 false,则 map 中的内容保持原位置 } new_map[atFront ? 0 : map_size] = new T[BLOCK_SIZE];// 为新的块分配空间 delete[] map; // 释放旧的 map 内存。 map = new_map; // map 指向新的指针数组 new_map。 ++map_size; if (atFront) // 如果在前端分配新的块,调整 start 和 finish 迭代器的 node 指针,确保它们指向正确的位置。 { //这一步是必要的,因为在 map 前端插入新的块后,这将导致原本的所有块指针都需要向后移动一位。 ++start.node; ++finish.node; } } };
test.cpp
#include "deque.h" using namespace std; int main() { Deque<int> dq; dq.push_back(1); dq.push_back(2); dq.push_back(3); dq.push_front(0); dq.push_front(-1); for (Deque<int>::Iterator it = dq.begin(); it != dq.end(); ++it) { std::cout << *it << " "; } std::cout << std::endl; dq.pop_back(); dq.pop_front(); dq.pop_front(); dq.pop_front(); dq.pop_front(); dq.pop_front(); // 抛异常 for (Deque<int>::Iterator it = dq.begin(); it != dq.end(); ++it) { std::cout << *it << " "; } std::cout << std::endl; return 0; }
输出
-1 0 1 2 3 1 2
以上便是对C++ 中 stack
和 queue
的底层数据结构和优先队列priority_queue的简单实现。
