SpringBoot集成JasperReports实现PDF、HTML、XML的一键生成

作者：程序员蜗牛

本文详解SpringBoot集成JasperReports流程,包含依赖配置、字体处理、模板设计、数据填充及接口开发,实现用户数据多格式（PDF/HTML/XML）报表导出,覆盖项目结构搭建与测试访问地址

JasperReports 是一个基于 Java 的开源报表工具，支持多种输出格式（如 PDF、HTML、XML 等），广泛应用于 Java 开发中生成动态报表‌。本文将完整演示如何在 Spring Boot 项目中整合 JasperReports，从环境配置、模板设计到接口开发，逐步实现用户数据报表的导出。

核心原理

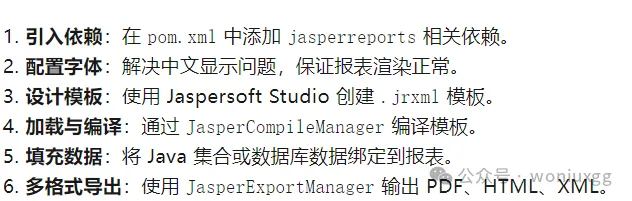

集成JasperReports步骤

实现 PDF、HTML、XML 一键生成！_xml_02

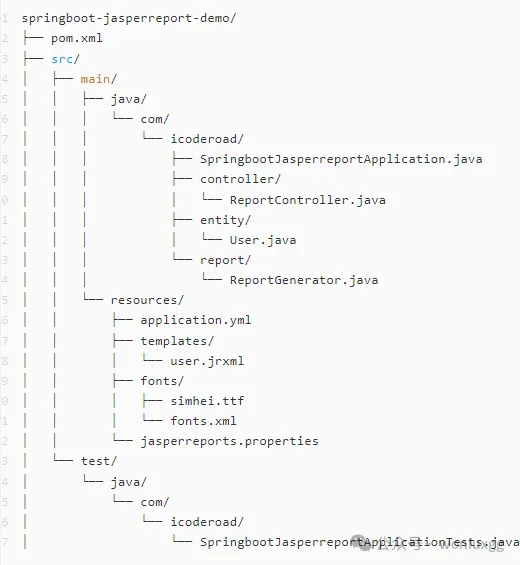

项目目录结构

实现 PDF、HTML、XML 一键生成！_java_03

引入依赖

在 pom.xml 中添加 JasperReports 相关依赖：

<dependencies>
    <!-- JasperReports 核心依赖 -->
    <dependency>
        <groupId>net.sf.jasperreports</groupId>
        <artifactId>jasperreports</artifactId>
        <version>7.0.3</version>
    </dependency>


    <!-- JasperReports PDF 支持 -->
    <dependency>
        <groupId>net.sf.jasperreports</groupId>
        <artifactId>jasperreports-pdf</artifactId>
        <version>7.0.3</version>
    </dependency>


    <!-- Spring Boot Web -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>


    <!-- Lombok 简化实体类代码 -->
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
</dependencies>

核心代码实现

 启动类

package com.icoderoad;


import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;


@SpringBootApplication
public class SpringbootJasperreportApplication {
    public static void main(String[] args) {
        SpringApplication.run(SpringbootJasperreportApplication.class, args);
    }
}

User 实体类

package com.icoderoad.entity;


public class User {
    private Long id;
    private String name;
    private Integer age;
    private String email;
    private String address;


    public User(Long id, String name, Integer age, String email, String address) {
        this.id = id;
        this.name = name;
        this.age = age;
        this.email = email;
        this.address = address;
    }


    public User() {}


    // Getter 和 Setter
    public Long getId() {
        return id;
    }
    public void setId(Long id) {
        this.id = id;
    }


    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }


    public Integer getAge() {
        return age;
    }
    public void setAge(Integer age) {
        this.age = age;
    }


    public String getEmail() {
        return email;
    }
    public void setEmail(String email) {
        this.email = email;
    }


    public String getAddress() {
        return address;
    }
    public void setAddress(String address) {
        this.address = address;
    }
}

报表生成工具类

package com.icoderoad.report;


import com.icoderoad.entity.User;
import net.sf.jasperreports.engine.*;
import net.sf.jasperreports.engine.data.JRBeanCollectionDataSource;
import org.springframework.core.io.ClassPathResource;


import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.*;


public class ReportGenerator {


    public static byte[] generate(List<User> users, String format) throws Exception {
        // 1. 加载并编译报表模板
        ClassPathResource resource = new ClassPathResource("templates/user.jrxml");
        JasperReport jasperReport = JasperCompileManager.compileReport(resource.getInputStream());


        // 2. 准备数据源和参数
        JRBeanCollectionDataSource dataSource = new JRBeanCollectionDataSource(users);
        Map<String, Object> parameters = new HashMap<>();
        parameters.put("title", "用户列表");


        JasperPrint jasperPrint = JasperFillManager.fillReport(jasperReport, parameters, dataSource);


        // 3. 导出不同格式
        return switch (format) {
            case "pdf" -> JasperExportManager.exportReportToPdf(jasperPrint);
            case "xml" -> JasperExportManager.exportReportToXml(jasperPrint).getBytes();
            case "html" -> {
                String path = "/tmp/user.html";
                JasperExportManager.exportReportToHtmlFile(jasperPrint, path);
                yield Files.readAllBytes(Paths.get(path));
            }
            default -> throw new IllegalArgumentException("不支持的格式: " + format);
        };
    }
}

控制层

package com.icoderoad.controller;


import com.icoderoad.entity.User;
import com.icoderoad.report.ReportGenerator;
import org.springframework.core.io.ByteArrayResource;
import org.springframework.core.io.Resource;
import org.springframework.http.*;
import org.springframework.web.bind.annotation.*;


import java.util.*;


@RestController
@RequestMapping("/users")
public class ReportController {


    @GetMapping("/export/{format}")
    public ResponseEntity<Resource> export(@PathVariable String format) throws Exception {
        // 模拟数据
        List<User> users = new ArrayList<>();
        for (int i = 0; i < 10; i++) {
            users.add(new User((long) i, "姓名-" + i, new Random().nextInt(100),
                    i + "@qq.com", "地址-" + i));
        }


        // 生成报表
        byte[] content = ReportGenerator.generate(users, format);
        ByteArrayResource resource = new ByteArrayResource(content);


        return ResponseEntity.ok()
                .contentType(MediaType.APPLICATION_OCTET_STREAM)
                .header(HttpHeaders.CONTENT_DISPOSITION,
                        ContentDisposition.attachment()
                                .filename("user-report." + format)
                                .build().toString())
                .contentLength(resource.contentLength())
                .body(resource);
    }
}

配置文件

server:
  port: 8080
spring:
  application:
    name: springboot-jasperreport-demo

jasperreports.properties

net.sf.jasperreports.extension.registry.factory.simple.font.families=net.sf.jasperreports.engine.fonts.SimpleFontExtensionsRegistryFactory
net.sf.jasperreports.extension.simple.font.families.simhei=fonts/fonts.xml

首先，在 Linux 系统中，将 Windows 的 黑体字体文件 simhei.ttf 拷贝到项目目录：

src/main/resources/fonts/simhei.ttf
fonts/fonts.xml
<?xml versinotallow="1.0" encoding="UTF-8"?>
<fontFamilies>
  <fontFamily name="黑体">
    <normal>fonts/simhei.ttf</normal>
    <bold>fonts/simhei.ttf</bold>
    <italic>fonts/simhei.ttf</italic>
    <boldItalic>fonts/simhei.ttf</boldItalic>
    <pdfEncoding>Identity-H</pdfEncoding>
    <pdfEmbedded>true</pdfEmbedded>
    <exportFonts>
      <export key="net.sf.jasperreports.html">'黑体', Arial, Helvetica, sans-serif</export>
      <export key="net.sf.jasperreports.xhtml">'黑体', Arial, Helvetica, sans-serif</export>
    </exportFonts>
  </fontFamily>
</fontFamilies>

 user.jrxml 示例模板

<?xml versinotallow="1.0" encoding="UTF-8"?>
<!-- 用户列表报表模板 -->
<jasperReport xmlns="http://jasperreports.sourceforge.net/jasperreports"
              xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
              xsi:schemaLocation="http://jasperreports.sourceforge.net/jasperreports
                                  http://jasperreports.sourceforge.net/xsd/jasperreport.xsd"
              name="user_report"
              pageWidth="595" pageHeight="842"
              columnWidth="555" leftMargin="20" rightMargin="20"
              topMargin="20" bottomMargin="20" uuid="123e4567-e89b-12d3-a456-426614174000">


    <!-- 报表参数 -->
    <parameter name="title" class="java.lang.String"/>


    <!-- 字段定义 -->
    <field name="id" class="java.lang.Long"/>
    <field name="name" class="java.lang.String"/>
    <field name="age" class="java.lang.Integer"/>
    <field name="email" class="java.lang.String"/>
    <field name="address" class="java.lang.String"/>


    <!-- 报表标题 -->
    <title>
        <band height="50">
            <staticText>
                <reportElement x="0" y="10" width="555" height="30"/>
                <textElement textAlignment="Center">
                    <font fontName="黑体" size="16" isBold="true"/>
                </textElement>
                <text><![CDATA[$P{title}]]></text>
            </staticText>
        </band>
    </title>


    <!-- 表头 -->
    <columnHeader>
        <band height="20">
            <staticText><reportElement x="0" y="0" width="50" height="20"/><text><![CDATA[ID]]></text></staticText>
            <staticText><reportElement x="50" y="0" width="100" height="20"/><text><![CDATA[姓名]]></text></staticText>
            <staticText><reportElement x="150" y="0" width="50" height="20"/><text><![CDATA[年龄]]></text></staticText>
            <staticText><reportElement x="200" y="0" width="150" height="20"/><text><![CDATA[邮箱]]></text></staticText>
            <staticText><reportElement x="350" y="0" width="205" height="20"/><text><![CDATA[地址]]></text></staticText>
        </band>
    </columnHeader>


    <!-- 数据体 -->
    <detail>
        <band height="20">
            <textField><reportElement x="0" y="0" width="50" height="20"/><textFieldExpression><![CDATA[$F{id}]]></textFieldExpression></textField>
            <textField><reportElement x="50" y="0" width="100" height="20"/><textFieldExpression><![CDATA[$F{name}]]></textFieldExpression></textField>
            <textField><reportElement x="150" y="0" width="50" height="20"/><textFieldExpression><![CDATA[$F{age}]]></textFieldExpression></textField>
            <textField><reportElement x="200" y="0" width="150" height="20"/><textFieldExpression><![CDATA[$F{email}]]></textFieldExpression></textField>
            <textField><reportElement x="350" y="0" width="205" height="20"/><textFieldExpression><![CDATA[$F{address}]]></textFieldExpression></textField>
        </band>
    </detail>
</jasperReport>

测试接口

启动服务后，分别访问以下地址即可获取不同格式的报表：

结论

通过本文的实践，我们基于 Spring Boot + JasperReports 搭建了一套完整的报表生成解决方案，实现了 PDF、HTML、XML 的多格式一键导出。整个过程涵盖了 依赖引入、字体配置、模板设计、数据填充、接口实现 等关键环节。
