使用C++手搓一个TCP连接管理器

作者：爱吃芒果的蘑菇

这篇文章主要为大家详细介绍了如何使用C++手搓一个TCP连接管理器,文中的示例代码讲解详细,感兴趣的小伙伴可以跟随小编一起学习一下

背景

无所事事的小H想起了之前抄的一个web项目，现在看来自己完全没有理解其中的内容就匆匆写上简历了，决定来补一下其中组件的实现，第一个着手的就是TCP连接管理器。

在网络编程中，管理多个 TCP 连接是一项常见而复杂的任务，尤其是在构建服务端或需要双向通信的客户端程序时。为了简化这一过程，我们可以封装一个通用的TCP连接管理器，它支持：

本文将一步步拆解这个类的设计思路与实现方式，代码已经同步至github仓库：futureseek/Cpp_learn: learn some model about C++ ，该仓库还包含其他各种C++实现的小组件。

模块设计概述

我们封装的TcpConnectionManager类支持以下的核心功能：

此外，整个实现遵循现代 C++（C++11）风格，使用 std::shared_ptr、std::function、std::thread、std::mutex 等标准库特性，提升可读性和安全性。

辅助类设计

这里提供了连接状态还有连接信息作为我们TCP连接的信息封装，包括套接字描述符、远程地址、端口、状态、连接时间。

// 连接状态枚举
    enum class ConnectionState {
        DISCONNECTED,
        CONNECTING,
        CONNECTED,
        DISCONNECTING,
        ERROR
    };
    // 连接信息结构体
    struct ConnectionInfo {
        int fd; // 套接字描述符
        std::string remote_address;
        uint16_t remote_port;
        ConnectionState state;
        time_t connection_time;
    };

核心功能实现

启动服务端监听

使用 socket -> setsockopt -> bind -> listen -> accept 构建服务器套接字，并在后台线程中不断接受连接。

监听线程通过 accept() 获取新连接，并为每个连接分配一个新的 ConnectionInfo 对象，随后启动独立线程处理该连接的数据接收。

// 启动服务器
    std::error_code start(uint16_t port){
        /*
            创建监听套接字
            AF_INET: IPv4
            SOCK_STREAM: TCP
            0: 默认协议，这里默认选择TCP协议，显式指定： IPPROTO_TCP,IPPROTO_UDP
        */
        listen_fd_ = socket(AF_INET,SOCK_STREAM,0);
        if(listen_fd_ < 0){
            return std::error_code(errno,std::generic_category());
        }
        // 设置SO_REUSEADDR选项，允许重用处于处于 TIME_WAIT 状态的本地地址和端口
        int opt = 1;
        if(setsockopt(listen_fd_,SOL_SOCKET,SO_REUSEADDR,&opt,sizeof(opt)) < 0){
            close(listen_fd_);
            return std::error_code(errno,std::generic_category());
        }
        // 绑定地址和端口
        sockaddr_in server_addr{};
        server_addr.sin_family = AF_INET;
        server_addr.sin_addr.s_addr = INADDR_ANY; // 监听所有可用接口
        server_addr.sin_port = htons(port); // 转换为网络字节序
        if(bind(listen_fd_,(sockaddr*)&server_addr,sizeof(server_addr)) < 0){
            close(listen_fd_);
            return std::error_code(errno,std::generic_category());
        }
        // 开始监听
        // SOMAXCONN: 系统允许的最大连接数,linux系统下通常为128
        if(listen(listen_fd_,SOMAXCONN)<0){
            close(listen_fd_);
            return std::error_code(errno,std::generic_category());
        }
        running_ = true;
        std::thread([this](){
            this->acceptConnections();
        }).detach();
        return std::error_code(); // 成功返回默认构造的错误码，表示无错误
    }
void acceptConnections(){
        while(running_){
            sockaddr_in client_addr{};
            socklen_t client_len = sizeof(client_addr);
            /*
                accept 函数的第二个参数 &client_addr：是一个输出参数，内核会将客户端的地址信息（IP、端口、地址族）填充到这个结构体中。
            */
            int client_fd = accept(listen_fd_,(struct sockaddr*)&client_addr,&client_len);
            if(client_fd < 0){
                if(running_){
                    std::error_code ec(errno,std::system_category());
                    handleError(-1,ec);
                }
                continue;
            }
            char ip_str[INET_ADDRSTRLEN];
            inet_ntop(AF_INET,&client_addr.sin_addr,ip_str,INET_ADDRSTRLEN);
            auto info = std::make_shared<ConnectionInfo>();
            info->fd = client_fd;
            info->remote_address = ip_str;
            info->remote_port = ntohs(client_addr.sin_port);
            info->state = ConnectionState::CONNECTED;
            info->connection_time = time(nullptr);
            {
                std::lock_guard<std::mutex> lock(connections_mutex_);
                connections_[client_fd] = info;
            }
            if(connection_callback_){
                connection_callback_(*info);
            }
            std::thread([this,client_fd](){
                this->receiveData(client_fd);
            }).detach();
        }
    }

客户端主动连接

通过 connect() 系统调用实现主动连接服务器，同样在连接成功后开启数据接收线程。

    // 主动建立连接
    std::error_code connect(const std::string& host,uint16_t port,std::shared_ptr<ConnectionInfo>& conn_info){
        running_ = true;
        int fd =socket(AF_INET,SOCK_STREAM,0);
        if(fd<0){
            return std::error_code(errno,std::generic_category());
        }
        sockaddr_in server_addr{};
        server_addr.sin_family = AF_INET;
        server_addr.sin_port = htons(port);
        // 将点分十进制字符串转换为网络字节序的二进制形式
        if(inet_pton(AF_INET,host.c_str(),&server_addr.sin_addr)<=0){
            close(fd);
            return std::error_code(errno,std::generic_category());
        }
        auto info = std::make_shared<ConnectionInfo>();
        info->fd = fd;
        info->remote_address = host;
        info->remote_port = port;
        info->state = ConnectionState::CONNECTING;
        info->connection_time = time(nullptr);
        {
            std::lock_guard<std::mutex> lock(connections_mutex_);
            connections_[fd] = info;
        }
        // ::conect 避免与成员函数重名
        if(::connect(fd,(sockaddr*)&server_addr,sizeof(server_addr))<0){
            close(fd);
            return std::error_code(errno,std::generic_category());
        }
        info->state = ConnectionState::CONNECTED;
        if(connection_callback_){
            connection_callback_(*info);
        }
        std::thread([this,fd](){
            this->receiveData(fd);
        }).detach();
        conn_info = info;
        return std::error_code();
    }

数据发送

封装 send() 调用，带有 MSG_NOSIGNAL 防止崩溃，支持向指定连接发送任意二进制数据。

    // 发送数据
    std::error_code sendData(int fd, const std::vector<uint8_t>& data) {
        size_t total_sent = 0;
        while (total_sent < data.size()) {
            ssize_t sent = ::send(fd,
                                data.data() + total_sent,
                                data.size() - total_sent,
                                MSG_NOSIGNAL);
            if (sent < 0) {
                if (errno == EINTR) {
                    continue; // 被信号打断，重试
                }
                if (errno == EAGAIN || errno == EWOULDBLOCK) {
                    // 对端接收缓冲区满了，可以选择 epoll 等待再写
                    // 简单实现：直接返回错误
                    return std::error_code(errno, std::generic_category());
            }
                return std::error_code(errno, std::generic_category());
            }
            total_sent += static_cast<size_t>(sent);
        }
        return {}; // success
    }

异步数据接收

每个连接启动一个独立线程，阻塞式调用 recv() 接收数据，接收到后调用数据回调函数。

处理逻辑包括：

    // 接受数据
    void receiveData(int fd){
        std::shared_ptr<ConnectionInfo> conn;
        {
            std::lock_guard<std::mutex> lock(connections_mutex_);
            auto it = connections_.find(fd);
            if(it == connections_.end()){
                return;
            }
            conn = it->second;
        }
        std::vector<uint8_t> buffer(4096);
        while(running_){
            ssize_t bytes_received = recv(fd,buffer.data(),buffer.size(),0);

            if(bytes_received > 0){
                std::vector<uint8_t> data(buffer.begin(),buffer.begin()+bytes_received);
                if(data_callback_){
                    data_callback_(*conn,data);
                }
            }
            else if(bytes_received == 0){
                closeConnection(fd);
                break;
            }
            else{
                if(errno != EAGAIN && errno!= EWOULDBLOCK){
                    std::error_code ec(errno,std::system_category());
                    handleError(fd,ec);
                    closeConnection(fd);
                    break;
                }
            }
        }
    }

错误处理

所有系统调用失败都封装为 std::error_code，统一交由 handleError 方法处理。

// 错误处理
    void handleError(int fd,const std::error_code& ec){
        if(error_callback_){
            if(fd == -1){
                std::lock_guard<std::mutex> lock(connections_mutex_);
                auto it = connections_.find(fd);
                if(it != connections_.end()){
                    it->second->state = ConnectionState::ERROR;
                    error_callback_(*(it->second),ec);
                }
            }
            else{
                ConnectionInfo info;
                info.state = ConnectionState::ERROR;
                error_callback_(info,ec);
            }
        }
    }

测试

再根据功能给出测试，流程如下：

1.服务器端启动

2.客户端启动

3.数据传输测试

4.连接关闭测试

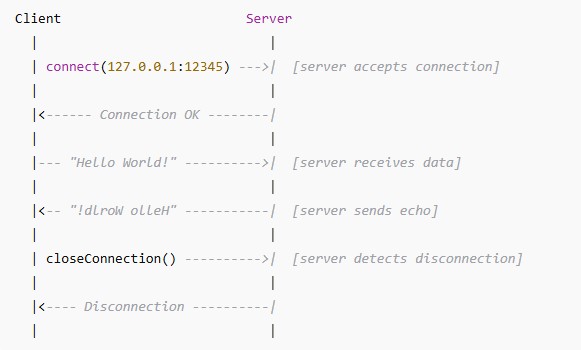

时序图如下：

代码

namespace TcpConnectionManager_Test {
    std::mutex mutex;
    std::condition_variable cv;
    void test() {
        TcpConnectionManager server;
        TcpConnectionManager client;

        // 同步工具
        bool server_ready = false;
        bool server_connected = false;
        bool client_connected = false;
        bool server_received = false;        // 服务器收到（仅服务器设置）
        bool client_received = false;        // 客户端收到回显（仅客户端设置）
        std::string client_echo_str;         // 保存客户端接收到的回显，便于断言

        // 1. 服务器初始化
        server.setConnectionCallback([&](const TcpConnectionManager::ConnectionInfo& conn) {
            std::lock_guard<std::mutex> lock(mutex);
            if (conn.state == TcpConnectionManager::ConnectionState::CONNECTED) {
                std::cout << "[Server] Connection from "
                          << conn.remote_address << ":" << conn.remote_port
                          << " established\n";
                server_connected = true;
            } else if (conn.state == TcpConnectionManager::ConnectionState::DISCONNECTED) {
                std::cout << "[Server] Connection closed\n";
                server_connected = false;
            }
            cv.notify_all();
        });

        server.setDataCallback([&](const TcpConnectionManager::ConnectionInfo& conn,
                                 const std::vector<uint8_t>& data) {
            std::lock_guard<std::mutex> lock(mutex);
            std::cout << "[Server] Received " << data.size() << " bytes\n";
            std::vector<uint8_t> echo(data.rbegin(), data.rend());
            std::string echo_str(echo.begin(), echo.end());
            std::cout << "[Server] Echo payload: " << echo_str << "\n";
            if (auto ec = server.sendData(conn.fd, echo)) {
                std::cout << "[Server] Failed to send echo: " << ec.message() << "\n";
            } else {
                std::cout << "[Server] Echo sent successfully\n";
            }

            server_received = true;
            cv.notify_all();
        });

        // 启动服务器
        if (auto ec = server.start(12345)) {
            std::cerr << "Server failed to start: " << ec.message() << "\n";
            return;
        }
        {
            std::lock_guard<std::mutex> lock(mutex);
            server_ready = true;
            std::cout << "[Server] Ready on port 12345\n";
            cv.notify_all();
        }

        // 2. 客户端初始化
        std::shared_ptr<TcpConnectionManager::ConnectionInfo> client_conn;
        client.setConnectionCallback([&](const TcpConnectionManager::ConnectionInfo& conn) {
            std::cout << "[Client] Connection state changed to: ";
            switch(conn.state) {
                case TcpConnectionManager::ConnectionState::CONNECTED:
                    std::cout << "CONNECTED"; break;
                case TcpConnectionManager::ConnectionState::DISCONNECTING:
                    std::cout << "DISCONNECTING"; break;
                case TcpConnectionManager::ConnectionState::DISCONNECTED:
                    std::cout << "DISCONNECTED"; break;
                case TcpConnectionManager::ConnectionState::ERROR:
                    std::cout << "ERROR"; break;
                default:
                    std::cout << static_cast<int>(conn.state);
            }
            std::cout << "\n";
            std::lock_guard<std::mutex> lock(mutex);
            if (conn.state == TcpConnectionManager::ConnectionState::CONNECTED) {
                std::cout << "[Client] Connected to server\n";
                client_connected = true;
            } else {
                std::cout << "[Client] Connection state changed: "
                          << static_cast<int>(conn.state) << "\n";
                client_connected = false;
            }
            cv.notify_all();
        });

        client.setDataCallback([&](const TcpConnectionManager::ConnectionInfo& conn,
                                 const std::vector<uint8_t>& data) {
            std::lock_guard<std::mutex> lock(mutex);
            std::string received(data.begin(), data.end());
            std::cout << "[Client] Received echo: " << received << "\n";
            std::cout << "[Debug-Client] receiveData() start for fd=" << conn.fd << std::endl;
            std::cout << "[Debug-Client] recv() got " << data.size() << " bytes" << std::endl;
            client_received = true;
            cv.notify_all();
        });

        // 等待服务器启动
        {
            std::unique_lock<std::mutex> lock(mutex);
            cv.wait_for(lock, std::chrono::seconds(3), [&]{ return server_ready; });
            if (!server_ready) {
                std::cerr << "Timeout waiting for server to start\n";
                return;
            }
        }

        // 客户端连接
        if (auto ec = client.connect("127.0.0.1", 12345, client_conn)) {
            std::cerr << "Client failed to connect: " << ec.message() << "\n";
            return;
        }

        // 等待连接建立
        {
            std::unique_lock<std::mutex> lock(mutex);
            if (!cv.wait_for(lock, std::chrono::seconds(3), [&]{
                return server_connected && client_connected;
            })) {
                std::cerr << "Timeout waiting for connection to establish\n";
                return;
            }
        }

        std::this_thread::sleep_for(std::chrono::milliseconds(100)); // 确保稳定
        if (server.getConnectionCount() != 1) {
            std::cerr << "Connection count mismatch. Expected 1, got: "
                      << server.getConnectionCount() << "\n";
            return;
        }

        // 3. 测试数据传输
        std::string test_message = "Hello World!";
        std::vector<uint8_t> test_data(test_message.begin(), test_message.end());

        if (auto ec = client.sendData(client_conn->fd, test_data)) {
            std::cerr << "Failed to send data: " << ec.message() << "\n";
            return;
        }
        std::cout << "[Client] Data sent\n";

        // 等待数据回传
        {
            std::unique_lock<std::mutex> lock(mutex);
            if (!cv.wait_for(lock, std::chrono::seconds(3), [&]{ return client_received; })) {
                std::cerr << "Timeout waiting for client to receive echo\n";
                return;
            }
        }

        // 4. 测试连接关闭
        try {
            client.closeConnection(client_conn->fd);
        } catch (const std::exception& e) {
            std::cerr << "Failed to close connection: " << e.what() << "\n";
            return;
        }

        // 等待连接关闭
        {
            std::unique_lock<std::mutex> lock(mutex);
            if (!cv.wait_for(lock, std::chrono::seconds(3), [&]{
                return !server_connected && !client_connected;
            })) {
                std::cerr << "Timeout waiting for disconnection\n";
                return;
            }
        }

        if (server.getConnectionCount() != 0) {
            std::cerr << "Expected 0 connections after close, got: "
                      << server.getConnectionCount() << "\n";
            return;
        }

        std::cout << "All TCP connection manager tests passed successfully!\n";
    }
};

完整代码

#ifndef CPP_LEARN_TCPCONNECTIONMANAGER_H
#define CPP_LEARN_TCPCONNECTIONMANAGER_H


#include <iostream>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#include <thread>
#include <unistd.h>
#include <string>
#include <functional>
#include <unordered_map>
#include <memory>
#include <vector>
#include <mutex>
#include <system_error>
#include <condition_variable>
#include <assert.h>

class TcpConnectionManager {
public:
    // 连接状态枚举
    enum class ConnectionState {
        DISCONNECTED,
        CONNECTING,
        CONNECTED,
        DISCONNECTING,
        ERROR
    };
    // 连接信息结构体
    struct ConnectionInfo {
        int fd; // 套接字描述符
        std::string remote_address;
        uint16_t remote_port;
        ConnectionState state;
        time_t connection_time;
    };
    using ConnectionCallback = std::function<void(const ConnectionInfo&)>;
    using DataCallback = std::function<void(const ConnectionInfo&,const std::vector<uint8_t>&)>;
    using ErrorCallback = std::function<void(const ConnectionInfo&,const std::error_code&)>;
private:
    std::unordered_map<int,std::shared_ptr<ConnectionInfo>> connections_;
    ConnectionCallback connection_callback_;
    DataCallback data_callback_;
    ErrorCallback error_callback_;
    int listen_fd_ = -1;
    bool running_ = false;
public:
    TcpConnectionManager() = default;
    ~TcpConnectionManager(){
        stop();
    }

    void setConnectionCallback(ConnectionCallback cb){
        connection_callback_=cb;
    }
    void setDataCallback(DataCallback db){
        data_callback_ = db;
    }
    void setErrorCallback(ErrorCallback eb){
        error_callback_ = eb;
    }

    // 启动服务器
    std::error_code start(uint16_t port){
        /*
            创建监听套接字
            AF_INET: IPv4
            SOCK_STREAM: TCP
            0: 默认协议，这里默认选择TCP协议，显式指定： IPPROTO_TCP,IPPROTO_UDP
        */
        listen_fd_ = socket(AF_INET,SOCK_STREAM,0);
        if(listen_fd_ < 0){
            return std::error_code(errno,std::generic_category());
        }
        // 设置SO_REUSEADDR选项，允许重用处于处于 TIME_WAIT 状态的本地地址和端口
        int opt = 1;
        if(setsockopt(listen_fd_,SOL_SOCKET,SO_REUSEADDR,&opt,sizeof(opt)) < 0){
            close(listen_fd_);
            return std::error_code(errno,std::generic_category());
        }
        // 绑定地址和端口
        sockaddr_in server_addr{};
        server_addr.sin_family = AF_INET;
        server_addr.sin_addr.s_addr = INADDR_ANY; // 监听所有可用接口
        server_addr.sin_port = htons(port); // 转换为网络字节序
        if(bind(listen_fd_,(sockaddr*)&server_addr,sizeof(server_addr)) < 0){
            close(listen_fd_);
            return std::error_code(errno,std::generic_category());
        }
        // 开始监听
        // SOMAXCONN: 系统允许的最大连接数,linux系统下通常为128
        if(listen(listen_fd_,SOMAXCONN)<0){
            close(listen_fd_);
            return std::error_code(errno,std::generic_category());
        }
        running_ = true;
        std::thread([this](){
            this->acceptConnections();
        }).detach();
        return std::error_code(); // 成功返回默认构造的错误码，表示无错误
    }
    // 停止服务器
    void stop(){
        running_ = false;
        if(listen_fd_ != -1){
            close(listen_fd_);
            listen_fd_ = -1;
        }
        // 关闭所有连接
        std::lock_guard<std::mutex> lock(connections_mutex_);
        for(const auto& pair : connections_){
            closeConnection(pair.first);
        }
        connections_.clear();
    }
    // 主动建立连接
    std::error_code connect(const std::string& host,uint16_t port,std::shared_ptr<ConnectionInfo>& conn_info){
        running_ = true;
        int fd =socket(AF_INET,SOCK_STREAM,0);
        if(fd<0){
            return std::error_code(errno,std::generic_category());
        }
        sockaddr_in server_addr{};
        server_addr.sin_family = AF_INET;
        server_addr.sin_port = htons(port);
        // 将点分十进制字符串转换为网络字节序的二进制形式
        if(inet_pton(AF_INET,host.c_str(),&server_addr.sin_addr)<=0){
            close(fd);
            return std::error_code(errno,std::generic_category());
        }
        auto info = std::make_shared<ConnectionInfo>();
        info->fd = fd;
        info->remote_address = host;
        info->remote_port = port;
        info->state = ConnectionState::CONNECTING;
        info->connection_time = time(nullptr);
        {
            std::lock_guard<std::mutex> lock(connections_mutex_);
            connections_[fd] = info;
        }
        // ::conect 避免与成员函数重名
        if(::connect(fd,(sockaddr*)&server_addr,sizeof(server_addr))<0){
            close(fd);
            return std::error_code(errno,std::generic_category());
        }
        info->state = ConnectionState::CONNECTED;
        if(connection_callback_){
            connection_callback_(*info);
        }
        std::thread([this,fd](){
            this->receiveData(fd);
        }).detach();
        conn_info = info;
        return std::error_code();
    }
    // 发送数据
    std::error_code sendData(int fd, const std::vector<uint8_t>& data) {
        size_t total_sent = 0;
        while (total_sent < data.size()) {
            ssize_t sent = ::send(fd,
                                data.data() + total_sent,
                                data.size() - total_sent,
                                MSG_NOSIGNAL);
            if (sent < 0) {
                if (errno == EINTR) {
                    continue; // 被信号打断，重试
                }
                if (errno == EAGAIN || errno == EWOULDBLOCK) {
                    // 对端接收缓冲区满了，可以选择 epoll 等待再写
                    // 简单实现：直接返回错误
                    return std::error_code(errno, std::generic_category());
            }
                return std::error_code(errno, std::generic_category());
            }
            total_sent += static_cast<size_t>(sent);
        }
        return {}; // success
    }
    void closeConnection(int fd) {
        if (fd < 0) return;

        // 半关闭写端，告诉对方不再发数据
        ::shutdown(fd, SHUT_WR);

        // 直接关闭，不阻塞读
        ::close(fd);

        {
            std::lock_guard<std::mutex> lock(connections_mutex_);
            connections_.erase(fd);
        }

        // 通知回调
        if (connection_callback_) {
            TcpConnectionManager::ConnectionInfo info;
            info.fd = fd;
            info.state = TcpConnectionManager::ConnectionState::DISCONNECTED;
            connection_callback_(info);
        }
    }

    // 获取活动连接数
    size_t getConnectionCount() const{
        std::lock_guard<std::mutex> lock(connections_mutex_);
        return connections_.size();
    }
private:
    mutable std::mutex connections_mutex_;
    // 接受新连接
    void acceptConnections(){
        while(running_){
            sockaddr_in client_addr{};
            socklen_t client_len = sizeof(client_addr);
            /*
                accept 函数的第二个参数 &client_addr：是一个输出参数，内核会将客户端的地址信息（IP、端口、地址族）填充到这个结构体中。
            */
            int client_fd = accept(listen_fd_,(struct sockaddr*)&client_addr,&client_len);
            if(client_fd < 0){
                if(running_){
                    std::error_code ec(errno,std::system_category());
                    handleError(-1,ec);
                }
                continue;
            }
            char ip_str[INET_ADDRSTRLEN];
            inet_ntop(AF_INET,&client_addr.sin_addr,ip_str,INET_ADDRSTRLEN);
            auto info = std::make_shared<ConnectionInfo>();
            info->fd = client_fd;
            info->remote_address = ip_str;
            info->remote_port = ntohs(client_addr.sin_port);
            info->state = ConnectionState::CONNECTED;
            info->connection_time = time(nullptr);
            {
                std::lock_guard<std::mutex> lock(connections_mutex_);
                connections_[client_fd] = info;
            }
            if(connection_callback_){
                connection_callback_(*info);
            }
            std::thread([this,client_fd](){
                this->receiveData(client_fd);
            }).detach();
        }
    }
    // 接受数据
    void receiveData(int fd){
        std::shared_ptr<ConnectionInfo> conn;
        {
            std::lock_guard<std::mutex> lock(connections_mutex_);
            auto it = connections_.find(fd);
            if(it == connections_.end()){
                return;
            }
            conn = it->second;
        }
        std::vector<uint8_t> buffer(4096);
        while(running_){
            ssize_t bytes_received = recv(fd,buffer.data(),buffer.size(),0);

            if(bytes_received > 0){
                std::vector<uint8_t> data(buffer.begin(),buffer.begin()+bytes_received);
                if(data_callback_){
                    data_callback_(*conn,data);
                }
            }
            else if(bytes_received == 0){
                closeConnection(fd);
                break;
            }
            else{
                if(errno != EAGAIN && errno!= EWOULDBLOCK){
                    std::error_code ec(errno,std::system_category());
                    handleError(fd,ec);
                    closeConnection(fd);
                    break;
                }
            }
        }
    }
    // 错误处理
    void handleError(int fd,const std::error_code& ec){
        if(error_callback_){
            if(fd == -1){
                std::lock_guard<std::mutex> lock(connections_mutex_);
                auto it = connections_.find(fd);
                if(it != connections_.end()){
                    it->second->state = ConnectionState::ERROR;
                    error_callback_(*(it->second),ec);
                }
            }
            else{
                ConnectionInfo info;
                info.state = ConnectionState::ERROR;
                error_callback_(info,ec);
            }
        }
    }
};

namespace TcpConnectionManager_Test {
    std::mutex mutex;
    std::condition_variable cv;
    void test() {
        TcpConnectionManager server;
        TcpConnectionManager client;

        // 同步工具
        bool server_ready = false;
        bool server_connected = false;
        bool client_connected = false;
        bool server_received = false;        // 服务器收到（仅服务器设置）
        bool client_received = false;        // 客户端收到回显（仅客户端设置）
        std::string client_echo_str;         // 保存客户端接收到的回显，便于断言

        // 1. 服务器初始化
        server.setConnectionCallback([&](const TcpConnectionManager::ConnectionInfo& conn) {
            std::lock_guard<std::mutex> lock(mutex);
            if (conn.state == TcpConnectionManager::ConnectionState::CONNECTED) {
                std::cout << "[Server] Connection from "
                          << conn.remote_address << ":" << conn.remote_port
                          << " established\n";
                server_connected = true;
            } else if (conn.state == TcpConnectionManager::ConnectionState::DISCONNECTED) {
                std::cout << "[Server] Connection closed\n";
                server_connected = false;
            }
            cv.notify_all();
        });

        server.setDataCallback([&](const TcpConnectionManager::ConnectionInfo& conn,
                                 const std::vector<uint8_t>& data) {
            std::lock_guard<std::mutex> lock(mutex);
            std::cout << "[Server] Received " << data.size() << " bytes\n";
            std::vector<uint8_t> echo(data.rbegin(), data.rend());
            std::string echo_str(echo.begin(), echo.end());
            std::cout << "[Server] Echo payload: " << echo_str << "\n";
            if (auto ec = server.sendData(conn.fd, echo)) {
                std::cout << "[Server] Failed to send echo: " << ec.message() << "\n";
            } else {
                std::cout << "[Server] Echo sent successfully\n";
            }

            server_received = true;
            cv.notify_all();
        });

        // 启动服务器
        if (auto ec = server.start(12345)) {
            std::cerr << "Server failed to start: " << ec.message() << "\n";
            return;
        }
        {
            std::lock_guard<std::mutex> lock(mutex);
            server_ready = true;
            std::cout << "[Server] Ready on port 12345\n";
            cv.notify_all();
        }

        // 2. 客户端初始化
        std::shared_ptr<TcpConnectionManager::ConnectionInfo> client_conn;
        client.setConnectionCallback([&](const TcpConnectionManager::ConnectionInfo& conn) {
            std::cout << "[Client] Connection state changed to: ";
            switch(conn.state) {
                case TcpConnectionManager::ConnectionState::CONNECTED:
                    std::cout << "CONNECTED"; break;
                case TcpConnectionManager::ConnectionState::DISCONNECTING:
                    std::cout << "DISCONNECTING"; break;
                case TcpConnectionManager::ConnectionState::DISCONNECTED:
                    std::cout << "DISCONNECTED"; break;
                case TcpConnectionManager::ConnectionState::ERROR:
                    std::cout << "ERROR"; break;
                default:
                    std::cout << static_cast<int>(conn.state);
            }
            std::cout << "\n";
            std::lock_guard<std::mutex> lock(mutex);
            if (conn.state == TcpConnectionManager::ConnectionState::CONNECTED) {
                std::cout << "[Client] Connected to server\n";
                client_connected = true;
            } else {
                std::cout << "[Client] Connection state changed: "
                          << static_cast<int>(conn.state) << "\n";
                client_connected = false;
            }
            cv.notify_all();
        });

        client.setDataCallback([&](const TcpConnectionManager::ConnectionInfo& conn,
                                 const std::vector<uint8_t>& data) {
            std::lock_guard<std::mutex> lock(mutex);
            std::string received(data.begin(), data.end());
            std::cout << "[Client] Received echo: " << received << "\n";
            std::cout << "[Debug-Client] receiveData() start for fd=" << conn.fd << std::endl;
            std::cout << "[Debug-Client] recv() got " << data.size() << " bytes" << std::endl;
            client_received = true;
            cv.notify_all();
        });

        // 等待服务器启动
        {
            std::unique_lock<std::mutex> lock(mutex);
            cv.wait_for(lock, std::chrono::seconds(3), [&]{ return server_ready; });
            if (!server_ready) {
                std::cerr << "Timeout waiting for server to start\n";
                return;
            }
        }

        // 客户端连接
        if (auto ec = client.connect("127.0.0.1", 12345, client_conn)) {
            std::cerr << "Client failed to connect: " << ec.message() << "\n";
            return;
        }

        // 等待连接建立
        {
            std::unique_lock<std::mutex> lock(mutex);
            if (!cv.wait_for(lock, std::chrono::seconds(3), [&]{
                return server_connected && client_connected;
            })) {
                std::cerr << "Timeout waiting for connection to establish\n";
                return;
            }
        }

        std::this_thread::sleep_for(std::chrono::milliseconds(100)); // 确保稳定
        if (server.getConnectionCount() != 1) {
            std::cerr << "Connection count mismatch. Expected 1, got: "
                      << server.getConnectionCount() << "\n";
            return;
        }

        // 3. 测试数据传输
        std::string test_message = "Hello World!";
        std::vector<uint8_t> test_data(test_message.begin(), test_message.end());

        if (auto ec = client.sendData(client_conn->fd, test_data)) {
            std::cerr << "Failed to send data: " << ec.message() << "\n";
            return;
        }
        std::cout << "[Client] Data sent\n";

        // 等待数据回传
        {
            std::unique_lock<std::mutex> lock(mutex);
            if (!cv.wait_for(lock, std::chrono::seconds(3), [&]{ return client_received; })) {
                std::cerr << "Timeout waiting for client to receive echo\n";
                return;
            }
        }

        // 4. 测试连接关闭
        try {
            client.closeConnection(client_conn->fd);
        } catch (const std::exception& e) {
            std::cerr << "Failed to close connection: " << e.what() << "\n";
            return;
        }

        // 等待连接关闭
        {
            std::unique_lock<std::mutex> lock(mutex);
            if (!cv.wait_for(lock, std::chrono::seconds(3), [&]{
                return !server_connected && !client_connected;
            })) {
                std::cerr << "Timeout waiting for disconnection\n";
                return;
            }
        }

        if (server.getConnectionCount() != 0) {
            std::cerr << "Expected 0 connections after close, got: "
                      << server.getConnectionCount() << "\n";
            return;
        }

        std::cout << "All TCP connection manager tests passed successfully!\n";
    }
};



#endif //CPP_LEARN_TCPCONNECTIONMANAGER_H

结语

本次调试还是遇到了各种奇怪的问题，写起来的时候感觉还好，真到了测试的时候又出现各种顺序上的问题，尤其要注意各种资源释放顺序是否会引发互斥或者提前释放了。

到此这篇关于使用C++手搓一个TCP连接管理器的文章就介绍到这了,更多相关C++ TCP连接管理器内容请搜索脚本之家以前的文章或继续浏览下面的相关文章希望大家以后多多支持脚本之家！

您可能感兴趣的文章:
阅读全文
