基于SpringBoot实现热补丁加载器的详细方案
作者：风象南
每个程序员都有过这样的经历——凌晨三点被电话惊醒,生产环境出现紧急bug,而修复发布又需要漫长的流程,所以今天我们来介绍如何用SpringBoot 打造一个热补丁加载器,需要的朋友可以参考下
每个程序员都有过这样的经历——凌晨三点被电话惊醒，生产环境出现紧急bug，而修复发布又需要漫长的流程。
今天我们来介绍如何用SpringBoot 打造一个热补丁加载器，让你在紧急时刻也能从容应对。
背景：为什么需要热补丁？
想象一下这个场景：周五晚上8点，你刚准备下班，突然收到监控报警——生产环境某个关键接口出现空指针异常，影响了大量用户。这时候你面临几个选择：
传统发布流程：修改代码 → 测试 → 打包 → 发布，至少需要1-2小时
回滚到上个版本：可能会丢失其他新功能
热补丁修复：几分钟内修复问题，不影响服务运行
显然，第三种方案可以解燃眉之急。
设计思路
我们的热补丁加载器基于以下几个核心思想：
动态类加载：利用Java的ClassLoader机制动态加载补丁类
多层次替换：支持Spring Bean、普通Java类、静态方法等多种替换方式
字节码增强：通过Java Agent和Instrumentation API实现任意类的运行时替换
版本管理：每个补丁都有版本号，支持回滚
安全可控：只允许特定路径的补丁文件，防止安全风险
核心实现
1. 项目结构
首先，我们来看看完整的项目结构：
springboot-hot-patch/ ├── src/main/java/com/example/hotpatch/ │ ├── agent/ # Java Agent相关 │ │ └── HotPatchAgent.java │ ├── annotation/ # 注解定义 │ │ ├── HotPatch.java │ │ └── PatchType.java │ ├── config/ # 配置类 │ │ ├── HotPatchConfig.java │ │ └── HotPatchProperties.java │ ├── controller/ # 控制器 │ │ ├── HotPatchController.java │ │ └── TestController.java │ ├── core/ # 核心热补丁加载器 │ │ └── HotPatchLoader.java │ ├── example/ # 示例代码 │ │ ├── UserService.java │ │ ├── StringUtils.java │ │ └── MathHelper.java │ ├── instrumentation/ # 字节码操作 │ │ └── InstrumentationHolder.java │ ├── model/ # 数据模型 │ │ ├── PatchInfo.java │ │ └── PatchResult.java │ └── patches/ # 补丁示例 │ ├── UserServicePatch.java │ ├── StringUtilsPatch.java │ └── MathHelperDividePatch.java ├── src/main/resources/ │ ├── static/ # Web模板 │ │ ├── index.html │ └── application.properties ├── patches/ # 补丁文件目录 └── pom.xml
2. Maven配置
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.example</groupId>
<artifactId>springboot-hot-patch</artifactId>
<version>1.0.0</version>
<packaging>jar</packaging>
<name>Spring Boot Hot Patch Loader</name>
<description>A Spring Boot 3 based hot patch loader for runtime class replacement</description>
<properties>
<maven.compiler.source>17</maven.compiler.source>
<maven.compiler.target>17</maven.compiler.target>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<spring-boot.version>3.2.0</spring-boot.version>
<asm.version>9.5</asm.version>
<micrometer.version>1.12.0</micrometer.version>
</properties>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-dependencies</artifactId>
<version>${spring-boot.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<dependencies>
<!-- Spring Boot Starters -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-configuration-processor</artifactId>
<optional>true</optional>
</dependency>
<!-- ASM for bytecode manipulation -->
<dependency>
<groupId>org.ow2.asm</groupId>
<artifactId>asm</artifactId>
<version>${asm.version}</version>
</dependency>
<dependency>
<groupId>org.ow2.asm</groupId>
<artifactId>asm-commons</artifactId>
<version>${asm.version}</version>
</dependency>
<dependency>
<groupId>org.ow2.asm</groupId>
<artifactId>asm-util</artifactId>
<version>${asm.version}</version>
</dependency>
<!-- Lombok -->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<optional>true</optional>
</dependency>
</dependencies>
</project>
3. 注解和枚举定义
/**
* 补丁类型枚举
*/
public enum PatchType {
/**
* Spring Bean 替换
*/
SPRING_BEAN,
/**
* 普通Java类替换（整个类）
*/
JAVA_CLASS,
/**
* 静态方法替换
*/
STATIC_METHOD,
/**
* 实例方法替换
*/
INSTANCE_METHOD
}
/**
* 增强的热补丁注解
*/
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface HotPatch {
/**
* 补丁类型
*/
PatchType type() default PatchType.SPRING_BEAN;
/**
* 原始Bean名称（当type=SPRING_BEAN时使用）
*/
String originalBean() default "";
/**
* 原始类的全限定名（当type=JAVA_CLASS或STATIC_METHOD时使用）
*/
String originalClass() default "";
/**
* 要替换的方法名（当type=STATIC_METHOD或INSTANCE_METHOD时使用）
*/
String methodName() default "";
/**
* 方法签名（用于方法重载区分）
*/
String methodSignature() default "";
/**
* 补丁版本
*/
String version() default "1.0";
/**
* 补丁描述
*/
String description() default "";
/**
* 是否启用安全验证
*/
boolean securityCheck() default true;
}
4. Java Agent支持
/**
* Instrumentation持有器 - 用于获取JVM的Instrumentation实例
*/
public class InstrumentationHolder {
private static volatile Instrumentation instrumentation;
public static void setInstrumentation(Instrumentation inst) {
instrumentation = inst;
}
public static Instrumentation getInstrumentation() {
return instrumentation;
}
public static boolean isAvailable() {
return instrumentation != null;
}
}
/**
* Java Agent入口类
*/
public class HotPatchAgent {
public static void premain(String agentArgs, Instrumentation inst) {
System.out.println("HotPatch Agent 启动成功");
InstrumentationHolder.setInstrumentation(inst);
}
public static void agentmain(String agentArgs, Instrumentation inst) {
System.out.println("HotPatch Agent 动态加载成功");
InstrumentationHolder.setInstrumentation(inst);
}
}
5. 配置属性类
/**
* 热补丁配置属性
*/
@ConfigurationProperties(prefix = "hotpatch")
@Component
@Data
public class HotPatchProperties {
/**
* 是否启用热补丁功能
*/
private boolean enabled = false;
/**
* 补丁文件存放路径
*/
private String path = "./patches";
/**
* 允许的补丁文件最大大小（字节）
*/
private long maxFileSize = 10 * 1024 * 1024;
/**
* 是否启用补丁签名验证
*/
private boolean signatureVerification = false;
/**
* 允许执行热补丁操作的角色列表
*/
private List<String> allowedRoles = List.of("ADMIN", "DEVELOPER");
}
6. 数据模型
/**
* 补丁信息类
*/
@Data
@AllArgsConstructor
public class PatchInfo {
private String name;
private String version;
private Class<?> patchClass;
private PatchType patchType;
private long loadTime;
private String originalTarget; // 原始目标（Bean名称或类名）
public PatchInfo(String name, String version, Class<?> patchClass,
PatchType patchType, long loadTime) {
this.name = name;
this.version = version;
this.patchClass = patchClass;
this.patchType = patchType;
this.loadTime = loadTime;
this.originalTarget = extractOriginalTarget(patchClass);
}
private String extractOriginalTarget(Class<?> patchClass) {
HotPatch annotation = patchClass.getAnnotation(HotPatch.class);
if (annotation != null) {
switch (annotation.type()) {
case SPRING_BEAN:
return annotation.originalBean();
case JAVA_CLASS:
return annotation.originalClass();
case STATIC_METHOD:
case INSTANCE_METHOD:
return annotation.originalClass() + "." + annotation.methodName();
default:
return "Unknown";
}
}
return "Unknown";
}
}
/**
* 补丁操作结果类
*/
@Data
@AllArgsConstructor
public class PatchResult {
private boolean success;
private String message;
private Object data;
public static PatchResult success(String message) {
return new PatchResult(true, message, null);
}
public static PatchResult success(String message, Object data) {
return new PatchResult(true, message, data);
}
public static PatchResult failed(String message) {
return new PatchResult(false, message, null);
}
}
7. 核心热补丁加载器
考虑篇幅，以下为部分关键代码
/**
* 增强版补丁加载器核心类
*/
@Component
@Slf4j
public class HotPatchLoader {
private final ConfigurableApplicationContext applicationContext;
private final HotPatchProperties properties;
private final Map<String, PatchInfo> loadedPatches = new ConcurrentHashMap<>();
private final Instrumentation instrumentation;
public HotPatchLoader(ConfigurableApplicationContext applicationContext,
HotPatchProperties properties) {
this.applicationContext = applicationContext;
this.properties = properties;
// 获取 Instrumentation 实例
this.instrumentation = InstrumentationHolder.getInstrumentation();
}
/**
* 加载热补丁 - 支持任意类替换
* @param patchName 补丁名称
* @param version 版本号
*/
public PatchResult loadPatch(String patchName, String version) {
if (!properties.isEnabled()) {
return PatchResult.failed("热补丁功能未启用");
}
try {
// 1. 验证补丁文件
File patchFile = validatePatchFile(patchName, version);
// 2. 创建专用的类加载器
URLClassLoader patchClassLoader = createPatchClassLoader(patchFile);
// 3. 加载补丁类
Class<?> patchClass = loadPatchClass(patchClassLoader, patchName);
// 4. 获取补丁注解信息
HotPatch patchAnnotation = patchClass.getAnnotation(HotPatch.class);
if (patchAnnotation == null) {
return PatchResult.failed("补丁类缺少 @HotPatch 注解");
}
// 5. 根据补丁类型选择替换策略
PatchType patchType = patchAnnotation.type();
switch (patchType) {
case SPRING_BEAN:
replaceSpringBean(patchClass, patchAnnotation);
break;
case JAVA_CLASS:
replaceJavaClass(patchClass, patchAnnotation);
break;
case STATIC_METHOD:
replaceStaticMethod(patchClass, patchAnnotation);
break;
case INSTANCE_METHOD:
return PatchResult.failed("实例方法替换暂未实现，请使用动态代理方式");
default:
return PatchResult.failed("不支持的补丁类型: " + patchType);
}
// 6. 记录补丁信息
PatchInfo patchInfo = new PatchInfo(patchName, version,
patchClass, patchType, System.currentTimeMillis());
loadedPatches.put(patchName, patchInfo);
log.info("热补丁 {}:{} ({}) 加载成功", patchName, version, patchType);
return PatchResult.success("补丁加载成功");
} catch (Exception e) {
log.error("热补丁加载失败: {}", e.getMessage(), e);
return PatchResult.failed("补丁加载失败: " + e.getMessage());
}
}
}
8. REST API控制器
/**
* 热补丁管理控制器
*/
@RestController
@RequestMapping("/api/hotpatch")
@Slf4j
public class HotPatchController {
private final HotPatchLoader patchLoader;
public HotPatchController(HotPatchLoader patchLoader) {
this.patchLoader = patchLoader;
}
@PostMapping("/load")
public ResponseEntity<PatchResult> loadPatch(
@RequestParam String patchName,
@RequestParam String version) {
log.info("请求加载热补丁: {}:{}", patchName, version);
PatchResult result = patchLoader.loadPatch(patchName, version);
return ResponseEntity.ok(result);
}
@GetMapping("/list")
public ResponseEntity<List<PatchInfo>> listPatches() {
List<PatchInfo> patches = patchLoader.getLoadedPatches();
return ResponseEntity.ok(patches);
}
@PostMapping("/rollback")
public ResponseEntity<PatchResult> rollbackPatch(
@RequestParam String patchName) {
log.info("请求回滚补丁: {}", patchName);
PatchResult result = patchLoader.rollbackPatch(patchName);
return ResponseEntity.ok(result);
}
@GetMapping("/status")
public ResponseEntity<String> getStatus() {
return ResponseEntity.ok("Hot Patch Loader is running");
}
}
9. Web管理界面

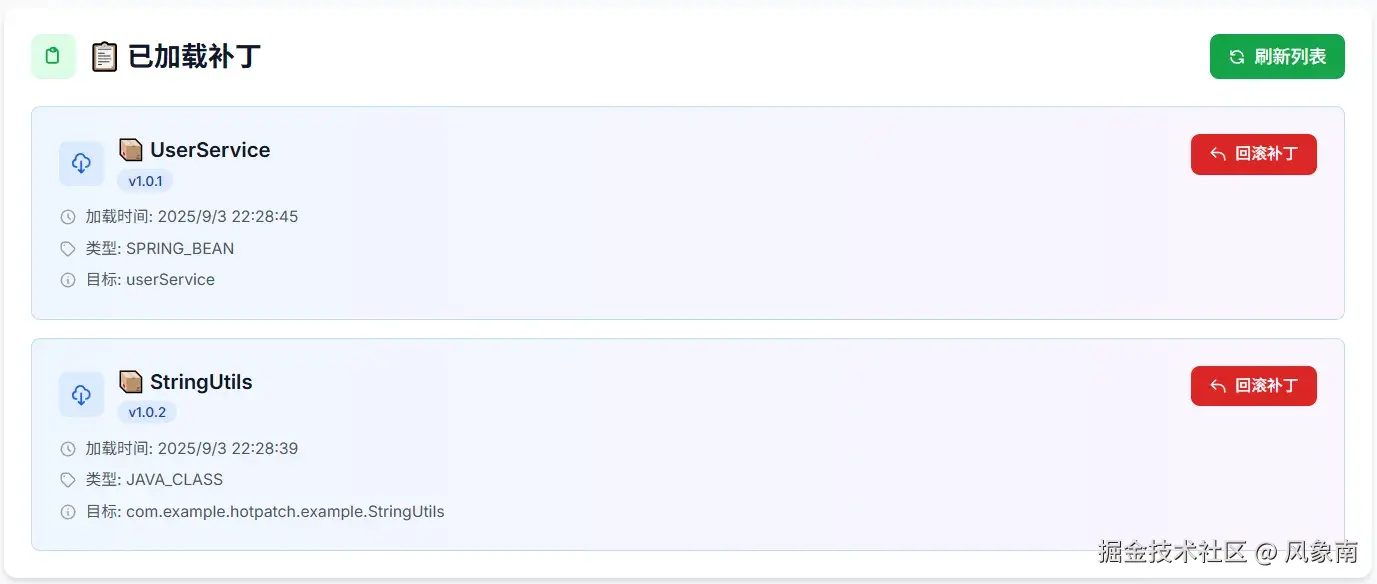

我们提供了一个美观实用的Web管理界面：
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>热补丁管理器</title>
<script src="https://cdn.tailwindcss.com"></script>
<style>
@import url('https://fonts.googleapis.com/css2?family=Inter:wght@300;400;500;600;700&display=swap');
body { font-family: 'Inter', sans-serif; }
.gradient-bg { background: linear-gradient(135deg, #667eea 0%, #764ba2 100%); }
.card-shadow { box-shadow: 0 4px 6px -1px rgba(0, 0, 0, 0.1), 0 2px 4px -1px rgba(0, 0, 0, 0.06); }
.hover-lift { transition: all 0.3s ease; }
.hover-lift:hover { transform: translateY(-2px); box-shadow: 0 8px 25px -8px rgba(0, 0, 0, 0.2); }
</style>
</head>
<body class="bg-gray-50 min-h-screen">
<!-- Header -->
<header class="gradient-bg text-white">
<div class="max-w-7xl mx-auto px-4 sm:px-6 lg:px-8 py-8">
<div class="text-center">
<h1 class="text-4xl font-bold mb-2">🔥 热补丁管理器</h1>
<p class="text-xl opacity-90">Spring Boot 线上紧急修复控制台</p>
</div>
</div>
</header>
<main class="max-w-7xl mx-auto px-4 sm:px-6 lg:px-8 py-8">
<!-- 统计卡片 -->
<div class="grid grid-cols-1 md:grid-cols-3 gap-6 mb-8">
<div class="bg-white rounded-xl card-shadow p-6 text-center hover-lift">
<div class="inline-flex items-center justify-center w-12 h-12 bg-blue-100 rounded-lg mb-4">
<svg class="w-6 h-6 text-blue-600" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M19 11H5m14-7l-3 3m0-3L13 7"/>
</svg>
</div>
<div class="text-3xl font-bold text-gray-900" id="totalPatches">0</div>
<div class="text-sm text-gray-500 mt-1">已加载补丁</div>
</div>
<div class="bg-white rounded-xl card-shadow p-6 text-center hover-lift">
<div class="inline-flex items-center justify-center w-12 h-12 bg-green-100 rounded-lg mb-4">
<svg class="w-6 h-6 text-green-600" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M9 12l2 2 4-4m6 2a9 9 0 11-18 0 9 9 0 0118 0z"/>
</svg>
</div>
<div class="text-3xl font-bold text-gray-900" id="successCount">0</div>
<div class="text-sm text-gray-500 mt-1">成功次数</div>
</div>
<div class="bg-white rounded-xl card-shadow p-6 text-center hover-lift">
<div class="inline-flex items-center justify-center w-12 h-12 bg-purple-100 rounded-lg mb-4">
<svg class="w-6 h-6 text-purple-600" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M12 8v4l3 3m6-3a9 9 0 11-18 0 9 9 0 0118 0z"/>
</svg>
</div>
<div class="text-xl font-bold text-gray-900" id="lastLoadTime">--</div>
<div class="text-sm text-gray-500 mt-1">最后加载</div>
</div>
</div>
<!-- 消息显示区域 -->
<div id="message" class="mb-6"></div>
<!-- 加载补丁区域 -->
<div class="bg-white rounded-xl card-shadow p-6 mb-8">
<div class="flex items-center mb-6">
<div class="inline-flex items-center justify-center w-10 h-10 bg-blue-100 rounded-lg mr-3">
<svg class="w-5 h-5 text-blue-600" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M7 16a4 4 0 01-.88-7.903A5 5 0 1115.9 6L16 6a5 5 0 011 9.9M9 19l3 3m0 0l3-3m-3 3V10"/>
</svg>
</div>
<h2 class="text-2xl font-bold text-gray-900">📦 加载补丁</h2>
</div>
<div class="space-y-4">
<!-- 补丁选择下拉框 -->
<div>
<label for="patchSelector" class="block text-sm font-medium text-gray-700 mb-2">选择补丁</label>
<div class="relative">
<select id="patchSelector" class="w-full px-4 py-3 border border-gray-300 rounded-lg focus:ring-2 focus:ring-blue-500 focus:border-transparent transition-all duration-200 bg-white">
<option value="">正在扫描补丁目录...</option>
</select>
<div class="absolute inset-y-0 right-0 flex items-center pr-2 pointer-events-none">
<svg class="w-5 h-5 text-gray-400" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M19 9l-7 7-7-7"/>
</svg>
</div>
</div>
</div>
<!-- 或者手动输入 -->
<div class="border-t pt-4">
<p class="text-sm text-gray-600 mb-3">或者手动输入补丁信息：</p>
<div class="grid grid-cols-1 md:grid-cols-2 gap-4">
<div>
<label for="patchName" class="block text-sm font-medium text-gray-700 mb-2">补丁名称</label>
<input type="text" id="patchName" placeholder="如: UserService"
class="w-full px-4 py-3 border border-gray-300 rounded-lg focus:ring-2 focus:ring-blue-500 focus:border-transparent transition-all duration-200">
</div>
<div>
<label for="patchVersion" class="block text-sm font-medium text-gray-700 mb-2">版本号</label>
<input type="text" id="patchVersion" placeholder="如: 1.0.1"
class="w-full px-4 py-3 border border-gray-300 rounded-lg focus:ring-2 focus:ring-blue-500 focus:border-transparent transition-all duration-200">
</div>
</div>
</div>
<!-- 加载按钮 -->
<div class="flex justify-end pt-4">
<button id="loadBtn" onclick="loadPatch()"
class="inline-flex items-center px-6 py-3 bg-blue-600 hover:bg-blue-700 text-white font-medium rounded-lg transition-colors duration-200">
<svg class="w-5 h-5 mr-2" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M13 10V3L4 14h7v7l9-11h-7z"/>
</svg>
加载补丁
</button>
</div>
</div>
</div>
<!-- 补丁列表区域 -->
<div class="bg-white rounded-xl card-shadow p-6">
<div class="flex items-center justify-between mb-6">
<div class="flex items-center">
<div class="inline-flex items-center justify-center w-10 h-10 bg-green-100 rounded-lg mr-3">
<svg class="w-5 h-5 text-green-600" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M9 5H7a2 2 0 00-2 2v10a2 2 0 002 2h8a2 2 0 002-2V7a2 2 0 00-2-2h-2M9 5a2 2 0 002 2h2a2 2 0 002-2M9 5a2 2 0 012-2h2a2 2 0 012 2"/>
</svg>
</div>
<h2 class="text-2xl font-bold text-gray-900">📋 已加载补丁</h2>
</div>
<button onclick="refreshPatches()"
class="inline-flex items-center px-4 py-2 bg-green-600 hover:bg-green-700 text-white font-medium rounded-lg transition-colors duration-200">
<svg class="w-4 h-4 mr-2" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M4 4v5h.582m15.356 2A8.001 8.001 0 004.582 9m0 0H9m11 11v-5h-.581m0 0a8.003 8.003 0 01-15.357-2m15.357 2H15"/>
</svg>
刷新列表
</button>
</div>
<!-- 加载状态 -->
<div id="loading" class="hidden text-center py-12">
<div class="inline-flex items-center">
<svg class="animate-spin -ml-1 mr-3 h-8 w-8 text-blue-600" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24">
<circle class="opacity-25" cx="12" cy="12" r="10" stroke="currentColor" stroke-width="4"></circle>
<path class="opacity-75" fill="currentColor" d="M4 12a8 8 0 018-8V0C5.373 0 0 5.373 0 12h4zm2 5.291A7.962 7.962 0 014 12H0c0 3.042 1.135 5.824 3 7.938l3-2.647z"></path>
</svg>
<span class="text-lg text-gray-600">正在加载补丁列表...</span>
</div>
</div>
<!-- 补丁列表 -->
<div id="patchList" class="space-y-4">
<!-- 补丁项目将在这里显示 -->
</div>
</div>
</main>
<script>
// API 基础路径
const API_BASE = '/api/hotpatch';
// 统计数据
let stats = {
total: 0,
success: 0,
lastLoad: null
};
// 页面加载完成后初始化
document.addEventListener('DOMContentLoaded', function() {
scanPatchesDirectory();
refreshPatches();
updateStats();
});
// 扫描补丁目录
async function scanPatchesDirectory() {
const selector = document.getElementById('patchSelector');
try {
// 这里模拟扫描补丁目录的API调用
// 实际应该调用后端API来获取patches目录下的所有jar文件
const response = await fetch(`${API_BASE}/scan-patches`);
if (response.ok) {
const patches = await response.json();
selector.innerHTML = '<option value="">请选择一个补丁</option>';
patches.forEach(patch => {
const option = document.createElement('option');
option.value = JSON.stringify({name: patch.name, version: patch.version});
option.textContent = `${patch.name} (${patch.version})`;
selector.appendChild(option);
});
} else {
// 如果API不存在，使用模拟数据
selector.innerHTML = `
<option value="">请选择一个补丁</option>
<option value='{"name":"StringUtils","version":"1.0.2"}'>StringUtils (1.0.2)</option>
<option value='{"name":"UserService","version":"1.0.1"}'>UserService (1.0.1)</option>
`;
}
} catch (error) {
// 使用模拟数据
selector.innerHTML = `
<option value="">请选择一个补丁</option>
<option value='{"name":"StringUtils","version":"1.0.2"}'>StringUtils (1.0.2)</option>
<option value='{"name":"UserService","version":"1.0.1"}'>UserService (1.0.1)</option>
`;
}
}
// 下拉框选择事件
document.getElementById('patchSelector').addEventListener('change', function() {
const selectedValue = this.value;
if (selectedValue) {
const patch = JSON.parse(selectedValue);
document.getElementById('patchName').value = patch.name;
document.getElementById('patchVersion').value = patch.version;
} else {
document.getElementById('patchName').value = '';
document.getElementById('patchVersion').value = '';
}
});
// 显示消息
function showMessage(text, type = 'success') {
const messageDiv = document.getElementById('message');
let bgColor = type === 'success' ? 'bg-green-50 border-green-200 text-green-800' : 'bg-red-50 border-red-200 text-red-800';
let icon = type === 'success' ?
'<svg class="w-5 h-5 text-green-400" fill="none" stroke="currentColor" viewBox="0 0 24 24"><path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M9 12l2 2 4-4m6 2a9 9 0 11-18 0 9 9 0 0118 0z"/></svg>' :
'<svg class="w-5 h-5 text-red-400" fill="none" stroke="currentColor" viewBox="0 0 24 24"><path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M10 14l2-2m0 0l2-2m-2 2l-2-2m2 2l2 2m7-2a9 9 0 11-18 0 9 9 0 0118 0z"/></svg>';
messageDiv.innerHTML = `
<div class="border rounded-lg p-4 ${bgColor} mb-4">
<div class="flex">
<div class="flex-shrink-0">
${icon}
</div>
<div class="ml-3">
<p class="text-sm font-medium">${text}</p>
</div>
</div>
</div>
`;
// 3秒后自动隐藏
setTimeout(() => {
messageDiv.innerHTML = '';
}, 3000);
}
// 加载补丁
async function loadPatch() {
const patchName = document.getElementById('patchName').value.trim();
const version = document.getElementById('patchVersion').value.trim();
if (!patchName || !version) {
showMessage('请选择补丁或手动输入补丁名称和版本号', 'error');
return;
}
const loadBtn = document.getElementById('loadBtn');
loadBtn.disabled = true;
loadBtn.innerHTML = `
<svg class="animate-spin -ml-1 mr-2 h-5 w-5" xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24">
<circle class="opacity-25" cx="12" cy="12" r="10" stroke="currentColor" stroke-width="4"></circle>
<path class="opacity-75" fill="currentColor" d="M4 12a8 8 0 018-8V0C5.373 0 0 5.373 0 12h4zm2 5.291A7.962 7.962 0 014 12H0c0 3.042 1.135 5.824 3 7.938l3-2.647z"></path>
</svg>
加载中...
`;
try {
const response = await fetch(`${API_BASE}/load`, {
method: 'POST',
headers: {
'Content-Type': 'application/x-www-form-urlencoded',
},
body: `patchName=${encodeURIComponent(patchName)}&version=${encodeURIComponent(version)}`
});
const result = await response.json();
if (result.success) {
showMessage(`✅ ${result.message}`, 'success');
stats.success++;
stats.lastLoad = new Date().toLocaleTimeString();
// 清空输入框和选择器
document.getElementById('patchName').value = '';
document.getElementById('patchVersion').value = '';
document.getElementById('patchSelector').value = '';
// 刷新列表
refreshPatches();
updateStats();
} else {
showMessage(`❌ ${result.message}`, 'error');
}
} catch (error) {
showMessage(`网络错误: ${error.message}`, 'error');
} finally {
loadBtn.disabled = false;
loadBtn.innerHTML = `
<svg class="w-5 h-5 mr-2" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M13 10V3L4 14h7v7l9-11h-7z"/>
</svg>
加载补丁
`;
}
}
// 刷新补丁列表
async function refreshPatches() {
const loading = document.getElementById('loading');
const patchList = document.getElementById('patchList');
loading.classList.remove('hidden');
try {
const response = await fetch(`${API_BASE}/list`);
const patches = await response.json();
stats.total = patches.length;
updateStats();
if (patches.length === 0) {
patchList.innerHTML = `
<div class="text-center py-16">
<div class="inline-flex items-center justify-center w-16 h-16 bg-gray-100 rounded-full mb-4">
<svg class="w-8 h-8 text-gray-400" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M20 13V6a2 2 0 00-2-2H6a2 2 0 00-2 2v7m16 0v5a2 2 0 01-2 2H6a2 2 0 01-2-2v-5m16 0h-2M4 13h2m13-8V4a2 2 0 00-2-2H9a2 2 0 00-2 2v1M8 7V4a2 2 0 012-2h4a2 2 0 012 2v3"/>
</svg>
</div>
<h3 class="text-lg font-medium text-gray-900 mb-2">暂无已加载的补丁</h3>
<p class="text-gray-500">在上方选择补丁并点击"加载补丁"开始使用</p>
</div>
`;
} else {
patchList.innerHTML = patches.map(patch => `
<div class="bg-gradient-to-r from-blue-50 to-purple-50 border border-blue-200 rounded-lg p-6 hover-lift">
<div class="flex items-start justify-between">
<div class="flex-1">
<div class="flex items-center mb-3">
<div class="inline-flex items-center justify-center w-10 h-10 bg-blue-100 rounded-lg mr-3">
<svg class="w-5 h-5 text-blue-600" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M7 16a4 4 0 01-.88-7.903A5 5 0 1115.9 6L16 6a5 5 0 011 9.9M9 19l3 3m0 0l3-3m-3 3V10"/>
</svg>
</div>
<div>
<h3 class="text-lg font-semibold text-gray-900">📦 ${patch.name}</h3>
<span class="inline-flex items-center px-2.5 py-0.5 rounded-full text-xs font-medium bg-blue-100 text-blue-800">
v${patch.version}
</span>
</div>
</div>
<div class="space-y-2 text-sm text-gray-600">
<div class="flex items-center">
<svg class="w-4 h-4 mr-2 text-gray-400" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M12 8v4l3 3m6-3a9 9 0 11-18 0 9 9 0 0118 0z"/>
</svg>
加载时间: ${new Date(patch.loadTime).toLocaleString()}
</div>
<div class="flex items-center">
<svg class="w-4 h-4 mr-2 text-gray-400" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M7 7h.01M7 3h5c.512 0 1.024.195 1.414.586l7 7a2 2 0 010 2.828l-7 7a2 2 0 01-2.828 0l-7-7A1.994 1.994 0 013 12V7a4 4 0 014-4z"/>
</svg>
类型: ${patch.patchType}
</div>
<div class="flex items-center">
<svg class="w-4 h-4 mr-2 text-gray-400" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M13 16h-1v-4h-1m1-4h.01M21 12a9 9 0 11-18 0 9 9 0 0118 0z"/>
</svg>
目标: ${patch.originalTarget}
</div>
</div>
</div>
<button onclick="rollbackPatch('${patch.name}')"
class="inline-flex items-center px-4 py-2 bg-red-600 hover:bg-red-700 text-white text-sm font-medium rounded-lg transition-colors duration-200">
<svg class="w-4 h-4 mr-2" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M3 10h10a8 8 0 018 8v2M3 10l6 6m-6-6l6-6"/>
</svg>
回滚补丁
</button>
</div>
</div>
`).join('');
}
} catch (error) {
patchList.innerHTML = `
<div class="text-center py-16">
<div class="inline-flex items-center justify-center w-16 h-16 bg-red-100 rounded-full mb-4">
<svg class="w-8 h-8 text-red-400" fill="none" stroke="currentColor" viewBox="0 0 24 24">
<path stroke-linecap="round" stroke-linejoin="round" stroke-width="2" d="M12 9v2m0 4h.01m-6.938 4h13.856c1.54 0 2.502-1.667 1.732-3L13.732 4c-.77-1.333-2.694-1.333-3.464 0L3.34 16c-.77 1.333.192 3 1.732 3z"/>
</svg>
</div>
<h3 class="text-lg font-medium text-red-900 mb-2">加载失败</h3>
<p class="text-red-600">❌ 加载补丁列表失败: ${error.message}</p>
</div>
`;
} finally {
loading.classList.add('hidden');
}
}
// 回滚补丁
async function rollbackPatch(patchName) {
if (!confirm(`确定要回滚补丁 "${patchName}" 吗？`)) {
return;
}
try {
const response = await fetch(`${API_BASE}/rollback`, {
method: 'POST',
headers: {
'Content-Type': 'application/x-www-form-urlencoded',
},
body: `patchName=${encodeURIComponent(patchName)}`
});
const result = await response.json();
if (result.success) {
showMessage(`✅ ${result.message}`, 'success');
refreshPatches();
} else {
showMessage(`❌ ${result.message}`, 'error');
}
} catch (error) {
showMessage(`网络错误: ${error.message}`, 'error');
}
}
// 更新统计信息
function updateStats() {
document.getElementById('totalPatches').textContent = stats.total;
document.getElementById('successCount').textContent = stats.success;
document.getElementById('lastLoadTime').textContent = stats.lastLoad || '--';
}
// 键盘事件：回车加载补丁
document.addEventListener('keypress', function(e) {
if (e.key === 'Enter') {
const target = e.target;
if (target.id === 'patchName' || target.id === 'patchVersion') {
loadPatch();
}
}
});
</script>
</body>
</html>
实际使用示例
1. Spring Bean替换示例
假设我们的原始服务类有bug：
@Service
public class UserService {
public String getUserInfo(Long userId) {
// 这里有空指针异常的bug
if (userId == null) {
return null; // 这里会导致后续调用出现问题
}
if (userId == 1L) {
return "Alice";
} else if (userId == 2L) {
return "Bob";
} else {
return null; // 这里会导致后续调用出现空指针异常
}
}
public int getUserNameLength(Long userId) {
String userName = getUserInfo(userId);
return userName.length(); // 当userName为null时会抛出空指针异常
}
}
创建Spring Bean补丁：
@HotPatch(
type = PatchType.SPRING_BEAN,
originalBean = "userService",
version = "1.0.1",
description = "修复getUserInfo空指针异常"
)
@Service
public class UserServicePatch {
public String getUserInfo(Long userId) {
// 修复空指针异常问题
if (userId == null) {
return "未知用户"; // 返回默认值而不是null
}
if (userId == 1L) {
return "Alice";
} else if (userId == 2L) {
return "Bob";
} else {
return "未知用户"; // 返回默认值而不是null
}
}
public int getUserNameLength(Long userId) {
String userName = getUserInfo(userId);
return userName != null ? userName.length() : 0; // 安全的长度计算
}
}
2. 普通Java类替换示例
假设有一个工具类需要修复：
// 原始类
public class StringUtils {
public static boolean isEmpty(String str) {
return str == null || str.length() == 0; // 忘记考虑空白字符
}
}
创建类替换补丁：
@HotPatch(
type = PatchType.JAVA_CLASS,
originalClass = "com.example.hotpatch.example.StringUtils",
version = "1.0.2",
description = "修复isEmpty方法逻辑，考虑空白字符"
)
public class StringUtilsPatch {
public static boolean isEmpty(String str) {
// 修复：考虑空白字符
return str == null || str.trim().length() == 0;
}
public static String trim(String str) {
return str == null ? null : str.trim();
}
}
3. 打包和部署补丁
编译补丁
# 1. 编译补丁类（需要依赖原项目的classpath） javac -cp "target/classes:target/lib/*" src/main/java/patches/UserServicePatch.java # 2. 打包为jar（包含补丁注解信息） jar cf UserService-1.0.1.jar -C target/classes patches/UserServicePatch.class # 3. 将补丁放到指定目录 cp *.jar ./patches/
启动应用（带Agent支持）
# 启动Spring Boot应用，加载Java Agent
java -javaagent:target/springboot-hot-patch-1.0.0-agent.jar \
-Dhotpatch.enabled=true \
-Dhotpatch.path=./patches \
-jar target/springboot-hot-patch-1.0.0.jar
动态加载补丁
# 通过API加载不同类型的补丁
# 1. 加载Spring Bean补丁
curl -X POST "http://localhost:8080/api/hotpatch/load" \
-d "patchName=UserService&version=1.0.1"
# 2. 加载Java类补丁
curl -X POST "http://localhost:8080/api/hotpatch/load" \
-d "patchName=StringUtils&version=1.0.2"
4. 应用配置
# application.properties spring.application.name=springboot-hot-patch server.port=8080 # Hot Patch Configuration hotpatch.enabled=true hotpatch.path=./patches
5. 测试验证
创建测试控制器验证补丁效果：
/**
* 测试控制器 - 用于测试热补丁功能
*/
@RestController
@RequestMapping("/api/test")
public class TestController {
@Autowired
private UserService userService;
// 测试Spring Bean补丁
@GetMapping("/user")
public String testUser(@RequestParam(value = "id",required = false) Long id) {
try {
int userNameLength = userService.getUserNameLength(id);
return "用户名长度: " + userNameLength;
} catch (Exception e) {
return "错误: " + e.getMessage();
}
}
// 测试工具类补丁
@GetMapping("/string-utils")
public boolean testStringUtils(@RequestParam(defaultValue = " ") String str) {
return StringUtils.isEmpty(str);
}
// 测试静态方法补丁
@GetMapping("/math/{a}/{b}")
public String testMath(@PathVariable int a, @PathVariable int b) {
try {
int result = MathHelper.divide(a, b);
return "计算结果: " + a + " / " + b + " = " + result;
} catch (Exception e) {
return "错误: " + e.getMessage();
}
}
}
测试步骤：
# 1. 测试原始版本（会出错） curl "http://localhost:8080/api/test/user" # 返回null或异常 # 2. 通过Web界面加载补丁 访问 http://localhost:8080/index.html 加载对应补丁 # 3. 再次测试（已修复） curl "http://localhost:8080/api/test/user" # 返回"用户名长度: 4"
最佳实践
1. 补丁开发规范
明确的命名约定：补丁类名 = 原类名 + Patch
版本管理：使用语义化版本号
充分测试：补丁代码必须经过严格测试
最小化改动：只修复必要的问题，避免引入新功能
2. 部署流程
1. 开发阶段：本地开发并测试补丁
2. 测试阶段：在测试环境验证补丁效果
3. 审核阶段：代码审核和安全检查
4. 部署阶段：生产环境热加载
5. 监控阶段：观察补丁效果和系统稳定性
3. 监控告警
@EventListener
public void onPatchLoaded(PatchLoadedEvent event) {
// 发送告警通知
alertService.sendAlert(
"热补丁加载通知",
String.format("补丁 %s:%s 已成功加载",
event.getPatchName(), event.getVersion())
);
// 记录审计日志
auditService.log("PATCH_LOADED", event.getPatchName(),
SecurityContextHolder.getContext().getAuthentication().getName());
}
适用场景
这个热补丁系统特别适合以下场景：
- 紧急Bug修复：生产环境出现严重bug，需要快速修复
- 性能优化：发现性能瓶颈，需要临时优化逻辑
- 功能开关：需要临时快速开启/关闭某些功能特性
- 参数调优：需要临时调整算法参数或配置值
注意事项
- 谨慎使用：热补丁虽然强大，但应当作为应急手段，不能替代正常的发版流程
- 充分测试：每个补丁都必须经过严格测试，确保不会引入新问题
- 权限控制：建立严格的权限管理体系，防止误操作
写在最后
作为一名程序员，我们都经历过被生产bug"半夜惊醒"的痛苦。
传统的修复流程往往需要1-2小时，而用户可能在这期间流失，业务损失难以估量。
热补丁技术让我们能够在几分钟内修复问题，虽然不是银弹，但确实是应急工具箱中的一件利器。
当然，好的架构设计和充分的测试永远是避免生产问题的最佳实践。热补丁只是我们技术工具链中的一环，真正的稳定性还是要从设计、开发、测试、部署等各个环节来保障。
以上就是基于SpringBoot实现热补丁加载器的详细方案的详细内容，更多关于SpringBoot热补丁加载器的资料请关注脚本之家其它相关文章！
