SpringBoot程序CPU飙升的排查指南
作者:风象南
在生产环境里,大家或多或少都遇到过这种场景:
某个 Spring Boot 应用突然 CPU 飙升,打满服务器资源;
监控报警狂响,业务接口开始超时;
登录服务器,top
一看,只能看到是 java
进程在耗 CPU;
再往下就蒙了 —— 到底是哪段代码在吃 CPU?
如果你和我一样,不想每次都靠运维层面“重启大法”,而是希望快速定位到 具体的类和方法,那你就需要一把更锋利的武器。
本文要介绍的就是:如何在 SpringBoot 程序里,自制一个 方法级采样火焰图工具,3 分钟锁定 CPU 热点。
一、痛点分析
常见的排查思路:
top
/htop
:只能看到进程或线程 ID,定位不到代码。jstack
:能 dump 出线程栈,但静态快照往往抓不到真正的热点方法(CPU 飙升的时候,线程可能在不停切换)。async-profiler
、arthas
:功能很强大,但对于一些没有安装权限的生产环境,落地成本比较高。
所以我的需求是:
轻量化:不用复杂部署,应用自身就能带。
方法级采样:不仅要看到类名,还要定位到具体的方法。
火焰图可视化:一眼看出热点,而不是一堆堆日志。
二、思路设计
核心思路其实很简单:
1、在应用运行时,定时对线程栈进行采样;
2、把每次采样到的「调用栈」进行统计和合并;
3、输出为 火焰图格式数据(一般是 Flame Graph 的 stack collapse 格式);
4、前端页面用现成的 JS 库(比如 d3-flame-graph)渲染成交互式图谱。

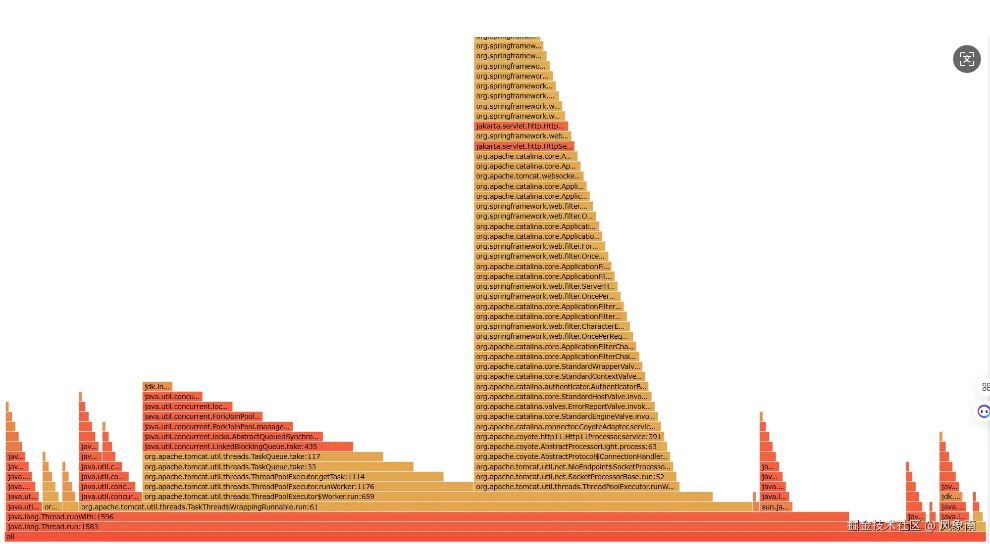

这样,我们就能在浏览器里看到:哪些方法被调用得最多,消耗了 CPU。
三、技术选型
采样方式:基于 JDK 自带的 ThreadMXBean
+ getThreadInfo
,周期性拉取栈帧;
数据存储:用内存里的 ConcurrentHashMap
统计调用栈频次;
可视化输出:提供一个 /flamegraph
HTTP 接口,返回 collapse 格式数据;
前端展示:引入 d3-flame-graph
绘制火焰图。
四、关键实现
1. 采样器
@Component public class CpuSampler { private final ScheduledExecutorService executor = Executors.newSingleThreadScheduledExecutor(); private final Map<String, AtomicInteger> stackCount = new ConcurrentHashMap<>(); @PostConstruct public void start() { executor.scheduleAtFixedRate(this::sample, 0, 50, TimeUnit.MILLISECONDS); } private void sample() { ThreadMXBean threadMXBean = ManagementFactory.getThreadMXBean(); for (long tid : threadMXBean.getAllThreadIds()) { ThreadInfo info = threadMXBean.getThreadInfo(tid, Integer.MAX_VALUE); if (info == null) continue; StringBuilder sb = new StringBuilder(); for (StackTraceElement frame : info.getStackTrace()) { sb.append(frame.getClassName()) .append(".") .append(frame.getMethodName()) .append(";"); } String stackLine = sb.toString(); stackCount.computeIfAbsent(stackLine, k -> new AtomicInteger(0)).incrementAndGet(); } } public Map<String, AtomicInteger> getStackCount() { return stackCount; } }
2. 提供 HTTP 接口
@RestController public class FlameGraphController { @Autowired private CpuSampler sampler; @GetMapping("/flamegraph") public String getFlameGraphData() { StringBuilder sb = new StringBuilder(); sampler.getStackCount().forEach((stack, count) -> { // flamegraph 的输入格式: method1;method2;method3 count sb.append(stack).append(" ").append(count.get()).append("\n"); }); return sb.toString(); } }
3. 前端展示
一个简单的 HTML 页面即可:
<script> let flameChart = null; let flameGraphFactory = null; // 添加全局变量 let samplingEnabled = false; // 初始化 document.addEventListener('DOMContentLoaded', function() { // 等待一段时间确保库完全加载 setTimeout(function() { console.log('检查库加载状态...'); console.log('d3:', typeof d3); console.log('flamegraph:', typeof flamegraph); console.log('d3.flamegraph:', typeof (d3 && d3.flamegraph)); console.log('window对象上的flame相关属性:', Object.keys(window).filter(key => key.toLowerCase().includes('flame'))); console.log('d3对象的属性:', d3 ? Object.keys(d3).filter(key => key.toLowerCase().includes('flame')) : 'd3未定义'); if (typeof d3 === 'undefined') { showError('D3.js库未加载成功'); return; } // 尝试不同的API访问方式 if (typeof flamegraph !== 'undefined') { console.log('使用全局flamegraph函数'); flameGraphFactory = flamegraph; } else if (d3 && typeof d3.flamegraph !== 'undefined') { console.log('使用d3.flamegraph函数'); flameGraphFactory = d3.flamegraph; } else if (d3 && typeof d3.flameGraph !== 'undefined') { console.log('使用d3.flameGraph函数'); flameGraphFactory = d3.flameGraph; } else if (typeof window.flamegraph !== 'undefined') { console.log('使用window.flamegraph函数'); flameGraphFactory = window.flamegraph; } else if (window.flamegraph && window.flamegraph.flamegraph) { console.log('使用window.flamegraph.flamegraph函数'); flameGraphFactory = window.flamegraph.flamegraph; } else { console.error('未找到flamegraph函数,可用的全局变量:', Object.keys(window).filter(k => k.includes('flame'))); showError('d3-flame-graph库加载成功但API不匹配'); return; } if (flameGraphFactory) { try { initFlameGraph(flameGraphFactory); } catch (e) { console.error('初始化火焰图失败:', e); showError('火焰图初始化失败: ' + e.message); } } updateStatus(); // 绑定事件 document.getElementById('refreshBtn').onclick = refreshFlameGraph; document.getElementById('enableBtn').onclick = enableSampling; document.getElementById('disableBtn').onclick = disableSampling; document.getElementById('clearBtn').onclick = clearData; document.getElementById('debugBtn').onclick = showDebugInfo; document.getElementById('rawDataBtn').onclick = showRawData; // 自动刷新状态 setInterval(updateStatus, 5000); }, 1000); }); function initFlameGraph(flameGraphFactory) { console.log('开始初始化火焰图,工厂函数:', flameGraphFactory); try { // 使用d3-flame-graph v4的正确API flameChart = flameGraphFactory() .width(Math.max(960, window.innerWidth - 80)) .cellHeight(18) .transitionDuration(750) .minFrameSize(1) .sort(true); console.log('火焰图初始化成功,实例:', flameChart); } catch (e) { console.error('火焰图初始化过程中出错:', e); throw e; } } async function updateStatus() { try { const response = await fetch('/api/sampling/status'); const data = await response.json(); samplingEnabled = data.enabled; const statusElement = document.getElementById('status'); const dataCountElement = document.getElementById('dataCount'); if (samplingEnabled) { statusElement.textContent = '采样运行中'; statusElement.className = 'status enabled'; } else { statusElement.textContent = '采样已停止'; statusElement.className = 'status disabled'; } dataCountElement.textContent = `数据量: ${data.stackCountSize}`; } catch (error) { console.error('Error updating status:', error); } } async function refreshFlameGraph() { const loadingElement = document.getElementById('loading'); const noDataElement = document.getElementById('noData'); const chartElement = document.getElementById('chart'); loadingElement.style.display = 'block'; noDataElement.style.display = 'none'; chartElement.innerHTML = ''; try { const response = await fetch('/api/flamegraph'); const data = await response.text(); loadingElement.style.display = 'none'; if (!data.trim() || data.trim().startsWith('#')) { noDataElement.style.display = 'block'; return; } // 检查火焰图是否已经初始化 if (!flameChart) { showError('火焰图未初始化,请刷新页面重试'); return; } try { console.log('原始数据长度:', data.length); console.log('原始数据前500字符:', data.substring(0, 500)); console.log('flameGraphFactory:', flameGraphFactory); // 手动解析collapsed格式数据 const lines = data.trim().split('\n').filter(line => line.trim() && !line.startsWith('#')); if (lines.length === 0) { noDataElement.style.display = 'block'; showError('没有有效的采样数据'); return; } console.log('有效数据行数:', lines.length); console.log('前5行数据:', lines.slice(0, 5)); // 构建火焰图数据结构 - 简化格式 const root = { name: "all", children: [], value: 0 }; const pathMap = new Map(); pathMap.set("", root); lines.forEach(line => { const parts = line.trim().split(' '); if (parts.length < 2) return; const count = parseInt(parts[parts.length - 1]); if (isNaN(count) || count <= 0) return; const stackTrace = parts.slice(0, -1).join(' '); const methods = stackTrace.split(';').filter(m => m.trim()); if (methods.length === 0) return; let currentPath = ""; let currentNode = root; methods.forEach((method) => { const newPath = currentPath + (currentPath ? ";" : "") + method; if (!pathMap.has(newPath)) { const newNode = { name: method, children: [], value: count }; pathMap.set(newPath, newNode); currentNode.children.push(newNode); } else { pathMap.get(newPath).value += count; } currentNode = pathMap.get(newPath); currentPath = newPath; }); }); // 计算总值 function calculateTotals(node) { let total = node.value || 0; if (node.children) { for (const child of node.children) { total += calculateTotals(child); } } node.value = total; return total; } calculateTotals(root); console.log('构建的火焰图数据:', root); console.log('根节点children数量:', root.children.length); console.log('根节点value:', root.value); console.log('子节点详情:', root.children.map(c => ({name: c.name, value: c.value, childrenCount: c.children.length}))); if (root.children.length === 0) { noDataElement.style.display = 'block'; showError('没有找到有效的调用栈数据'); return; } // 清空并准备chart容器 const chartElement = document.getElementById('chart'); chartElement.innerHTML = ''; console.log('Chart容器已清空'); try { // 直接渲染火焰图,不使用复杂的检查 console.log('开始渲染火焰图...'); d3.select("#chart") .datum(root) .call(flameChart); console.log('火焰图渲染调用完成'); } catch (renderError) { console.error('火焰图渲染时出错:', renderError); showError('火焰图渲染失败: ' + renderError.message); showTreeView(root); } console.log('火焰图渲染完成'); } catch (parseError) { console.error('Error parsing flame graph data:', parseError); showError('解析火焰图数据时出错: ' + parseError.message); } } catch (error) { loadingElement.style.display = 'none'; showError('获取火焰图数据失败: ' + error.message); console.error('Error refreshing flame graph:', error); } } function showDataAsTable(data) { const lines = data.trim().split('\n').filter(line => line.trim() && !line.startsWith('#')); let tableHtml = ` <div style="max-height: 400px; overflow-y: auto;"> <h4>📊 CPU采样数据 (表格形式)</h4> <table style="width: 100%; border-collapse: collapse; font-size: 12px;"> <thead> <tr style="background: #f0f0f0;"> <th style="border: 1px solid #ddd; padding: 8px; text-align: left;">调用栈</th> <th style="border: 1px solid #ddd; padding: 8px; text-align: right;">采样次数</th> </tr> </thead> <tbody> `; lines.slice(0, 50).forEach(line => { const parts = line.trim().split(' '); if (parts.length < 2) return; const count = parts[parts.length - 1]; const stack = parts.slice(0, -1).join(' '); tableHtml += ` <tr> <td style="border: 1px solid #ddd; padding: 4px; font-family: monospace;">${stack}</td> <td style="border: 1px solid #ddd; padding: 4px; text-align: right;">${count}</td> </tr> `; }); if (lines.length > 50) { tableHtml += `<tr><td colspan="2" style="text-align: center; padding: 8px;">... 还有 ${lines.length - 50} 条数据</td></tr>`; } tableHtml += ` </tbody> </table> </div> `; document.getElementById('chart').innerHTML = tableHtml; } function showTreeView(root) { console.log('显示树状视图'); function renderNode(node, depth = 0) { const indent = ' '.repeat(depth); const percentage = root.value > 0 ? ((node.value / root.value) * 100).toFixed(1) : '0.0'; let html = `<div style="margin-left: ${depth * 20}px; padding: 2px 0; font-family: monospace; font-size: 12px;">`; html += `<span style="color: #666;">${percentage}%</span> `; html += `<span style="color: #333;">${node.name}</span> `; html += `<span style="color: #999;">(${node.value})</span>`; html += `</div>`; if (node.children && node.children.length > 0) { // 按value排序,显示最重要的调用 const sortedChildren = [...node.children].sort((a, b) => b.value - a.value); for (const child of sortedChildren.slice(0, 10)) { // 只显示前10个 html += renderNode(child, depth + 1); } if (sortedChildren.length > 10) { html += `<div style="margin-left: ${(depth + 1) * 20}px; padding: 2px 0; color: #999; font-size: 11px;">... ${sortedChildren.length - 10} more</div>`; } } return html; } let treeHtml = ` <div style="max-height: 600px; overflow-y: auto; border: 1px solid #ddd; padding: 15px; background: #f9f9f9;"> <h4 style="margin: 0 0 15px 0;">🌳 CPU调用栈树状视图</h4> <div style="font-size: 11px; color: #666; margin-bottom: 10px;"> 格式: 百分比 方法名 (采样次数) | 按CPU占用排序 </div> `; if (root.children && root.children.length > 0) { const sortedChildren = [...root.children].sort((a, b) => b.value - a.value); for (const child of sortedChildren) { treeHtml += renderNode(child); } } treeHtml += `</div>`; document.getElementById('chart').innerHTML = treeHtml; } async function enableSampling() { try { const response = await fetch('/api/sampling/enable', { method: 'POST' }); const data = await response.json(); showSuccess(data.message); await updateStatus(); } catch (error) { showError('启用采样失败: ' + error.message); } } async function disableSampling() { try { const response = await fetch('/api/sampling/disable', { method: 'POST' }); const data = await response.json(); showSuccess(data.message); await updateStatus(); } catch (error) { showError('停止采样失败: ' + error.message); } } async function clearData() { if (!confirm('确定要清空所有采样数据吗?')) { return; } try { const response = await fetch('/api/sampling/clear', { method: 'POST' }); const data = await response.json(); showSuccess(data.message); await updateStatus(); document.getElementById('chart').innerHTML = ''; document.getElementById('noData').style.display = 'block'; } catch (error) { showError('清空数据失败: ' + error.message); } } async function showDebugInfo() { try { const response = await fetch('/api/sampling/debug'); const data = await response.json(); let debugHtml = ` <div class="info"> <strong>🔍 调试信息</strong> 采样状态: ${data.enabled ? '启用' : '禁用'} 数据条目数: ${data.stackCountSize} <strong>示例数据:</strong> `; if (data.sampleData && Object.keys(data.sampleData).length > 0) { for (const [stack, count] of Object.entries(data.sampleData)) { debugHtml += `<small>${stack} (${count})</small> `; } } else { debugHtml += '<small>暂无采样数据</small> '; } debugHtml += '</div>'; const testResult = document.getElementById('testResult'); testResult.innerHTML = debugHtml; setTimeout(() => { testResult.innerHTML = ''; }, 15000); } catch (error) { showError('获取调试信息失败: ' + error.message); } } async function showRawData() { try { const response = await fetch('/api/flamegraph'); const data = await response.text(); let rawHtml = ` <div class="info"> <strong>📄 原始火焰图数据</strong> <small>格式: 调用栈 采样次数</small> <pre style="font-size: 11px; max-height: 300px; overflow-y: auto; background: #f8f9fa; padding: 10px; border-radius: 4px;">`; if (data && data.trim() && !data.startsWith('#')) { const lines = data.trim().split('\n'); const displayLines = lines.slice(0, 50); // 只显示前50行 rawHtml += displayLines.join('\n'); if (lines.length > 50) { rawHtml += '\n... (' + (lines.length - 50) + ' more lines)'; } } else { rawHtml += '暂无原始数据\n\n建议:\n1. 确保采样已启用\n2. 运行一些测试任务\n3. 等待几秒钟收集数据'; } rawHtml += '</pre></div>'; const testResult = document.getElementById('testResult'); testResult.innerHTML = rawHtml; setTimeout(() => { testResult.innerHTML = ''; }, 20000); } catch (error) { showError('获取原始数据失败: ' + error.message); } } // 测试函数 async function testCpuIntensive() { showTestLoading('正在执行CPU密集型任务...'); // 执行前检查采样数据 console.log('=== 执行CPU密集型任务前的采样数据 ==='); await checkSamplingData(); try { const response = await fetch('/test/cpu-intensive?iterations=2000'); if (!response.ok) { throw new Error(`HTTP ${response.status}: ${response.statusText}`); } const data = await response.json(); console.log('CPU intensive test response:', data); showTestResult('CPU密集型任务完成', data); // 执行后等待一段时间让采样器收集数据 setTimeout(async () => { console.log('=== 执行CPU密集型任务后的采样数据 ==='); await checkSamplingData(); }, 2000); } catch (error) { console.error('CPU intensive test error:', error); showTestError('CPU密集型任务失败: ' + error.message); } } async function testNestedCalls() { showTestLoading('正在执行嵌套调用测试...'); console.log('=== 执行嵌套调用测试前的采样数据 ==='); await checkSamplingData(); try { const response = await fetch('/test/nested-calls?depth=15'); if (!response.ok) { throw new Error(`HTTP ${response.status}: ${response.statusText}`); } const data = await response.json(); console.log('Nested calls test response:', data); showTestResult('嵌套调用测试完成', data); setTimeout(async () => { console.log('=== 执行嵌套调用测试后的采样数据 ==='); await checkSamplingData(); }, 2000); } catch (error) { console.error('Nested calls test error:', error); showTestError('嵌套调用测试失败: ' + error.message); } } async function testMixedWorkload() { showTestLoading('正在执行混合工作负载...'); console.log('=== 执行混合工作负载前的采样数据 ==='); await checkSamplingData(); try { const response = await fetch('/test/mixed-workload'); if (!response.ok) { throw new Error(`HTTP ${response.status}: ${response.statusText}`); } const data = await response.json(); console.log('Mixed workload test response:', data); showTestResult('混合工作负载完成', data); setTimeout(async () => { console.log('=== 执行混合工作负载后的采样数据 ==='); await checkSamplingData(); }, 2000); } catch (error) { console.error('Mixed workload test error:', error); showTestError('混合工作负载失败: ' + error.message); } } async function checkSamplingData() { try { const response = await fetch('/api/flamegraph'); const data = await response.text(); console.log('当前采样数据长度:', data.length); console.log('当前采样数据前300字符:', data.substring(0, 300)); const lines = data.trim().split('\n').filter(line => line.trim() && !line.startsWith('#')); console.log('有效数据行数:', lines.length); const businessLines = lines.filter(line => line.includes('com.example')); console.log('包含业务代码的行数:', businessLines.length); if (businessLines.length > 0) { console.log('业务代码示例:', businessLines.slice(0, 3)); } } catch (error) { console.error('检查采样数据失败:', error); } } function showSuccess(message) { showNotification(message, 'success'); } function showError(message) { showNotification(message, 'error'); } function showNotification(message, type) { const notification = document.createElement('div'); notification.className = type === 'success' ? 'info' : 'error'; notification.textContent = message; const controls = document.querySelector('.controls'); controls.parentNode.insertBefore(notification, controls.nextSibling); setTimeout(() => { notification.remove(); }, 5000); } function showTestLoading(message) { const testResult = document.getElementById('testResult'); testResult.innerHTML = `<div class="info">${message}</div>`; } function showTestResult(title, data) { console.log('Test result data:', data); // 调试信息 const testResult = document.getElementById('testResult'); const executionTime = data.executionTimeMs || data.executionTime || 0; const resultValue = data.result ? data.result.toFixed(2) : 'N/A'; testResult.innerHTML = ` <div class="info"> <strong>${title}</strong> 执行时间: ${executionTime}ms ${data.result ? '结果: ' + resultValue : ''} ${data.iterations ? ' 迭代次数: ' + data.iterations : ''} ${data.depth ? ' 递归深度: ' + data.depth : ''} ${data.cpuResult ? ' CPU结果: ' + data.cpuResult.toFixed(2) : ''} ${data.ioResult ? ' IO结果: ' + data.ioResult.toFixed(2) : ''} ${data.finalResult ? ' 最终结果: ' + data.finalResult.toFixed(2) : ''} </div> `; setTimeout(() => { testResult.innerHTML = ''; }, 10000); } function showTestError(message) { const testResult = document.getElementById('testResult'); testResult.innerHTML = `<div class="error">${message}</div>`; setTimeout(() => { testResult.innerHTML = ''; }, 10000); } // 窗口大小改变时重新调整火焰图 window.addEventListener('resize', function() { if (flameChart && document.getElementById('chart').hasChildNodes()) { initFlameGraph(); refreshFlameGraph(); } }); </script>

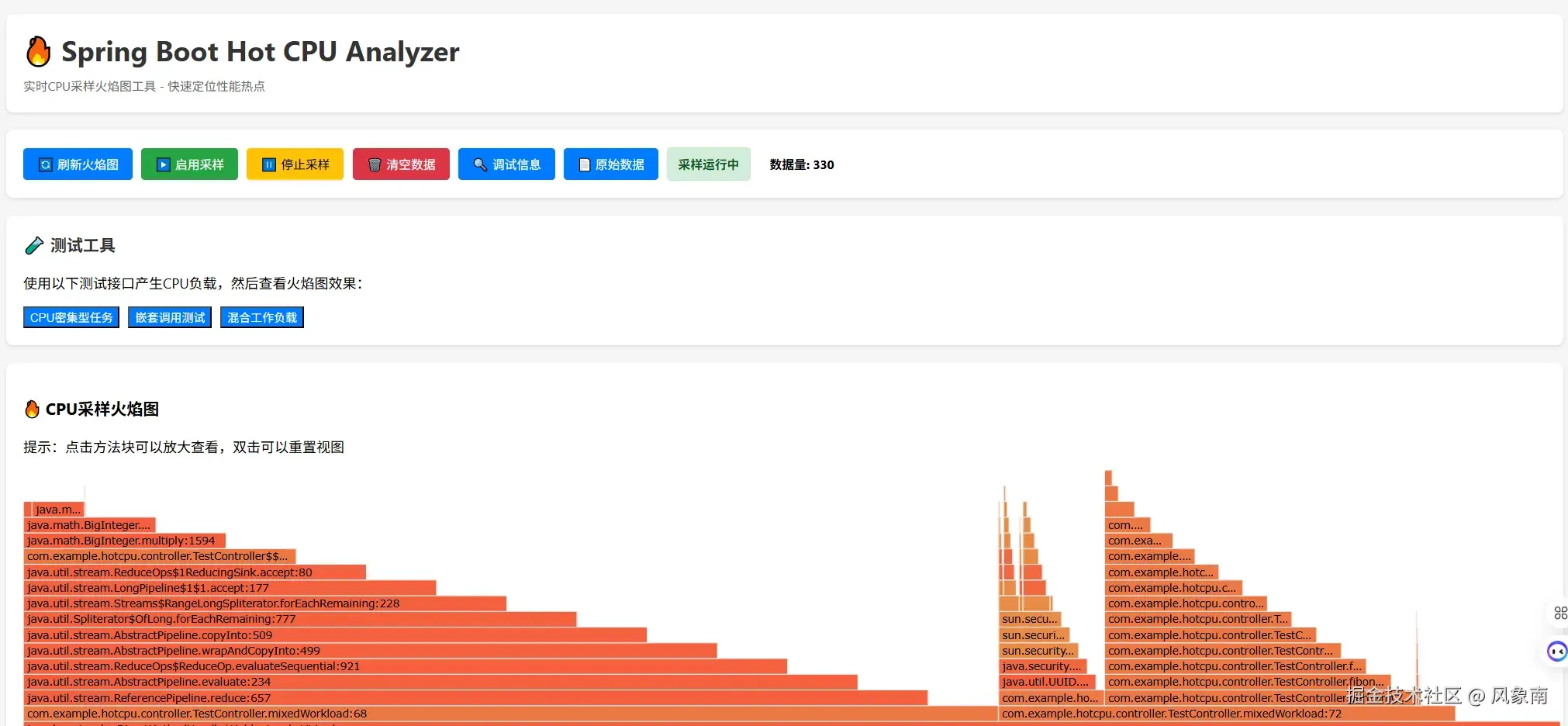

这样,访问 /index.html
就能直接看到 交互式火焰图 了。
五、实战应用场景

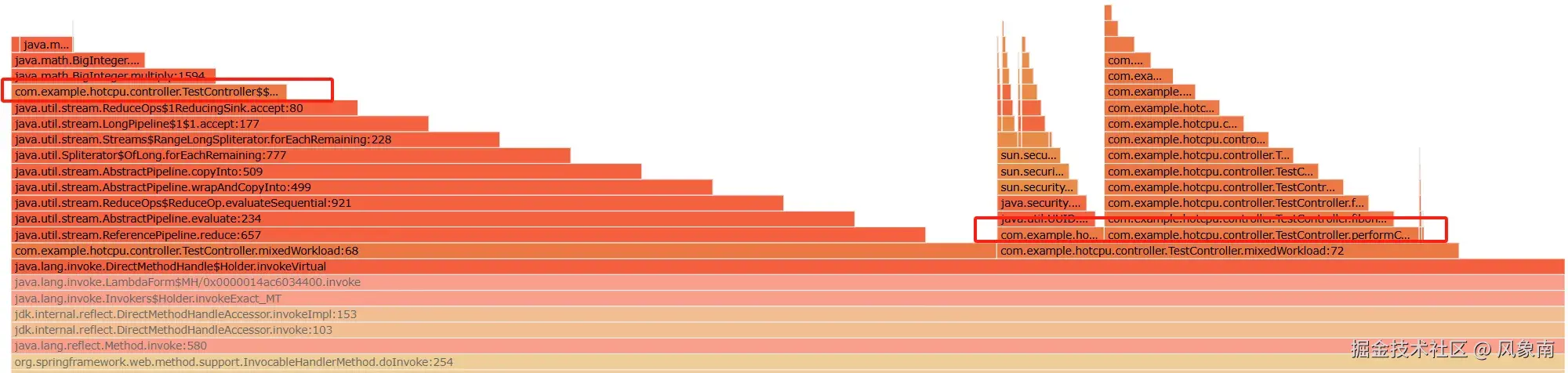

1. CPU 突然飙高:马上打开 flamegraph 页面,一眼就能看到是 XxxService.doQuery()
占比较高。
2. 定时任务异常:有些死循环、重试逻辑,传统日志难发现,但火焰图能直接看出占比最高的方法。
3. 性能优化前后对比:采集一段时间的火焰图,优化后再对比,能量化效果。
六、总结
通过上面的方式,我们用 极少的代码 在 SpringBoot 程序里实现了一个轻量级的 CPU 火焰图采样器。
1、不依赖第三方大工具,随项目自带
2、方法级别可视化,能快速定位 CPU 热点;
3、火焰图展示直观、体验好;
当然,这种方案有局限:
1、采样频率过高会带来一定开销
2、精度比不上专业的 async-profiler
3、火焰图数据需要定期清理,避免内存膨胀。
