使用nginx作为负载均衡（Load Balancing）的时候,发现真实ip无法获取,所以本文小编就来和大家介绍一下如何使用Java获取被nginx代理的emqx客户端真实ip地址吧

契机

使用nginx作为负载均衡（Load Balancing）的时候，发现真实ip无法获取。几经折腾终于拿到真实ip，又发现被代理的端口又无法使用非代理模式连接，由于之前暴露的docker端口有限，从中部分取巧终于拨开云雾见光明，再结合Java客户端获取真实ip一气呵成。

EMQX配置

#docker部署
#18083为管理页面端口，1883为默认mqtt端口，8883为默认mqtts端口
#如果还没有新建emqx容器，建议多暴露端口，具体原因见下文
docker run -d --name emqx -p 1883:1883 -p 8083:8083 -p 8084:8084 -p 8883:8883 -p 18083:18083 emqx/emqx:5.7.2

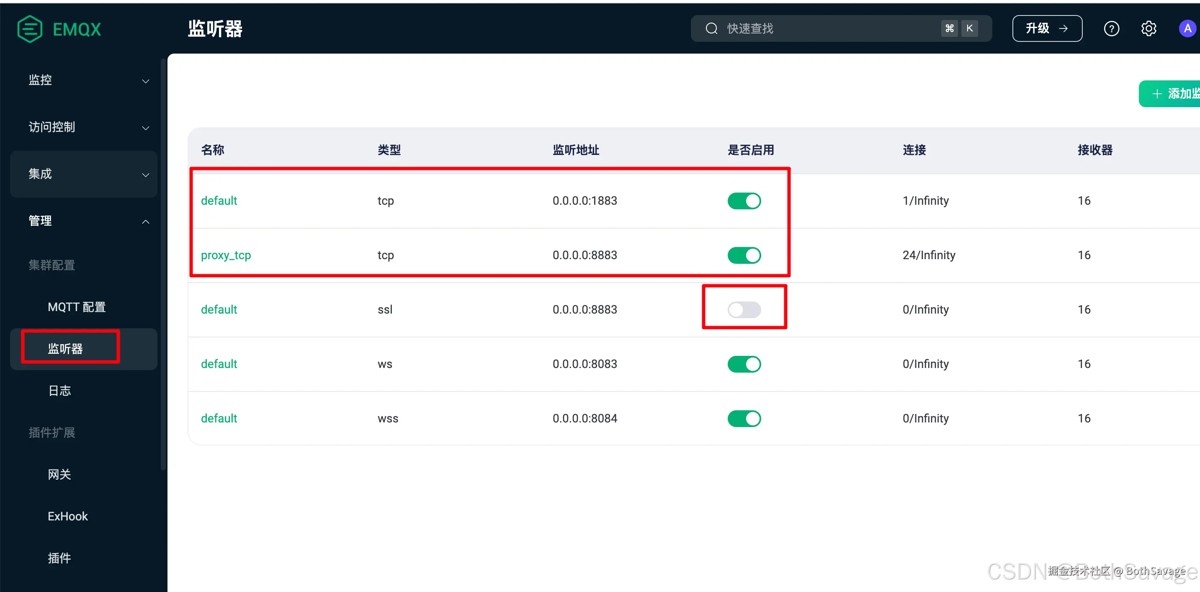

进入emqx管理页面，新建proxy_tcp监听器，类型为tcp，端口为8883
然后关闭之前ssl-8883监听
借用端口是因为docker暴露到宿主机的端口不够了，一旦设置比如proxy_tcp监听器的8883代理监听后，客户端就只能通过nginx代理连接这个8883端口了，直接连接8883就不行了

#获取emqx的容器id，假如为1111
docker ps | grep emqx

#将配置文件拷贝出来
docker cp 1111:/opt/emqx/etc/emqx.conf .

#修改，添加下面项目
vim emqx.conf

#打开proxy_tcp的代理监听
listeners.tcp.proxy_tcp {
  proxy_protocol = true
}

#关闭default的代理，默认是关闭的
#但是一旦打开过，就要手动设置为false
listeners.tcp.default {
  proxy_protocol = false
}

#放置回去
docker cp ./emqx.conf 1111:/opt/emqx/etc/

#重启容器
docker restart 1111

此时

直接使用客户端设备连接8883端口失败，无论mqtt/mqtts协议
1883端口可以使用mqtt协议可以正常连接
emqx不存放证书，ssl认证是一个耗时的操作，丢到nginx去搞

nginx配置

#nginx安装 - 略

#nginx安装模块
sudo yum install nginx-mod-stream

#修改nginx配置文件
vim /etc/nginx/nginx.conf

#配置文件如下
#192.168.0.1为emqx所在服务器，与nginx不在一个服务器
#监听1883为mqtt
#监听8883为mqtts
stream {
    upstream stream_backend {
      zone tcp_servers 64k;
      hash $remote_addr;
      server 192.168.0.1:1883 max_fails=2 fail_timeout=30s;
    }

    server {
        listen 1883;
        proxy_pass stream_backend;
        proxy_buffer_size 4k;
    }

    upstream stream_backend_ssl {
      zone tcp_servers 64k;
      hash $remote_addr;
      server 192.168.0.1:8883 max_fails=2 fail_timeout=30s;
    }

    server {
        listen 8883 ssl;
        proxy_protocol on;
        proxy_pass stream_backend_ssl;
        proxy_buffer_size 4k;
        ssl_handshake_timeout 15s;
        ssl_certificate     /etc/nginx/cert/_.xx.pem;
        ssl_certificate_key /etc/nginx/cert/_.xx.key;
    }

}

#重启nginx
sudo systemctl restart nginx

此时

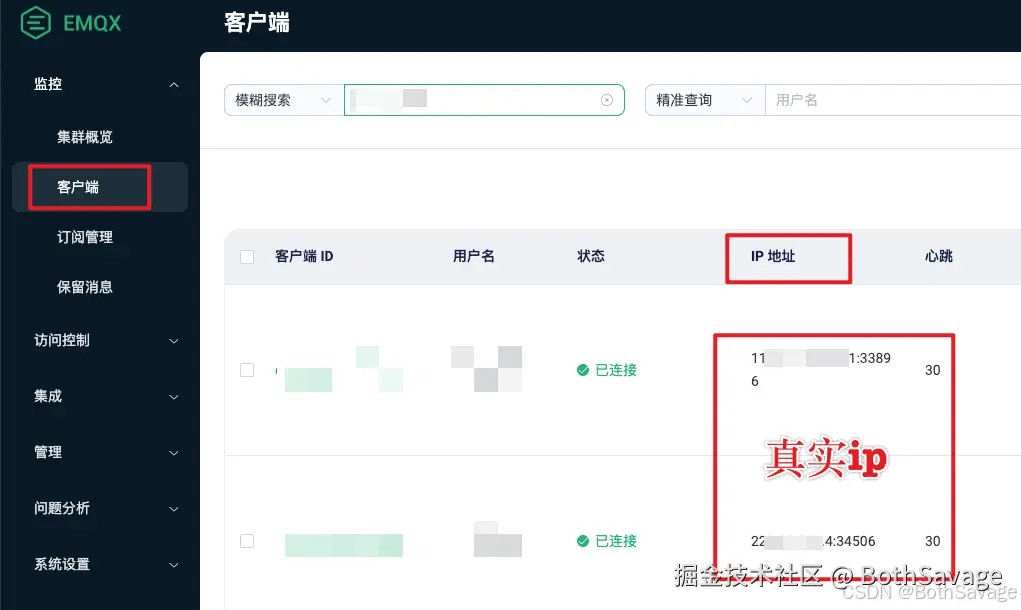

8883为mqtts端口，链接mqtts，emqx控制台可以看到真实ip
1883为mqtt端口，链接mqtt，emqx控制台看不到真实ip
理论上业务只暴露mqtts端口到外网，mqtt为内部调试方便抓包用的

脚本获取

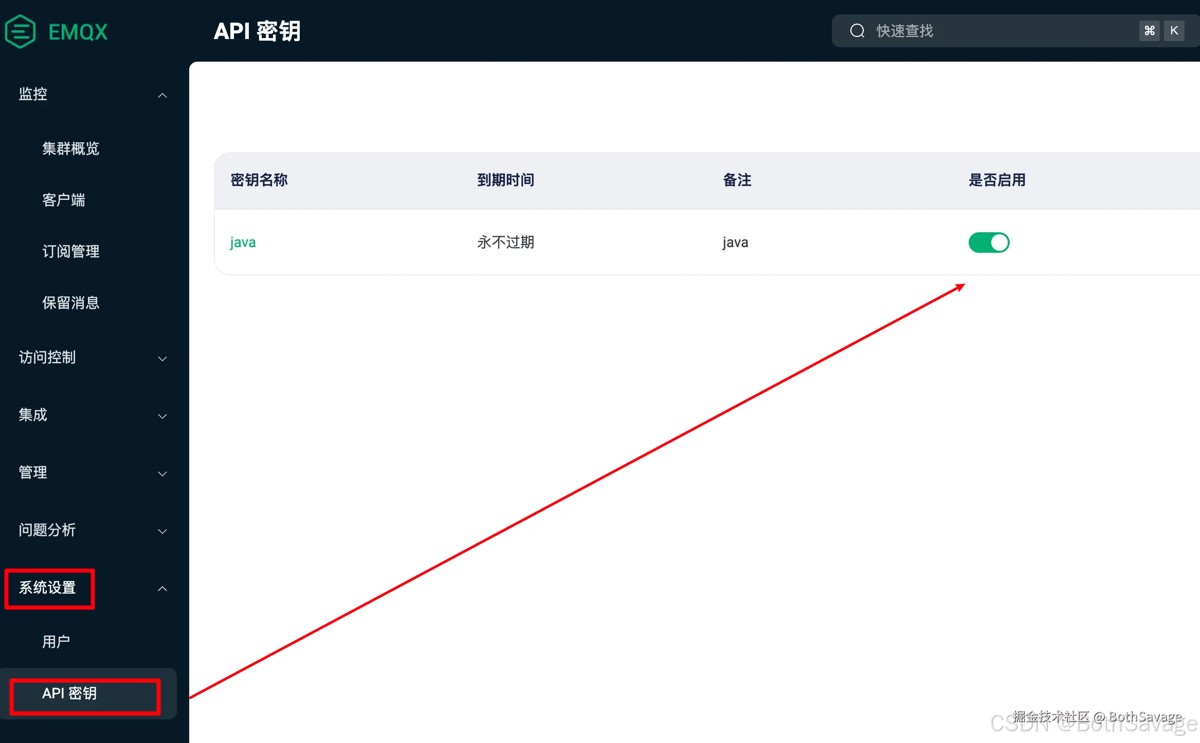

设置api密钥，保存下username和pasword

#!/bin/bash

# Check if both host and password arguments are provided
if [ $# -lt 2 ]; then
  echo "Usage: $0 <host> <password>"
  exit 1
fi

# Define host, username, and password
HOST="$1"
USERNAME="username"
PASSWORD="$2"

# Encode username and password in Base64
AUTH=$(echo -n "$USERNAME:$PASSWORD" | base64)

# Create the curl command
curl -H "Authorization: Basic $AUTH" "http://$HOST:18083/api/v5/clients?like_username=server"

#运行
chmod +x ./emqx_curl.sh
./emqx_curl.sh localhost your_password_here

Java获取

service

package com.bothsavage.common.mqtt.service;

import com.alibaba.fastjson.JSONObject;
import com.bothsavage.common.mqtt.config.interceptor.EmqxAuthInterceptor;
import com.bothsavage.common.mqtt.entity.dto.ClientInfoDTO;
import com.bothsavage.common.mqtt.entity.dto.EmqxRespDTO;

import feign.Headers;

import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestParam;

/**
 * Emqx请求
 *
 * @author bothSavage
 */
@FeignClient(name = "emqxRmiService", url = "${emqx.rmi.url:http://127.0.0.1:18083/}",configuration = EmqxAuthInterceptor.class)
public interface EmqxRmiService {

    /**
     * 获取客户端信息
     *
     * @param clientId 客户端id
     * @return -
     */
    @GetMapping(value = "/api/v5/clients/{id}")
    @Headers(value = {"Content-Type=application/json;charset=UTF-8", "Accept=application/json"})
    ClientInfoDTO getClientById(@PathVariable("id") String clientId);

    /**
     * 查询客户端信息
     *
     * @param likeUserName 客户端名称
     * @return -
     */
    @GetMapping(value = "/api/v5/clients")
    @Headers(value = {"Content-Type=application/json;charset=UTF-8", "Accept=application/json"})
    EmqxRespDTO<ClientInfoDTO> getClientsByUserName(@RequestParam("like_username") String likeUserName);

}

auth

package com.bothsavage.common.mqtt.config.interceptor;

import feign.RequestInterceptor;
import feign.RequestTemplate;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Configuration;

import java.util.Base64;

/**
 * Emqx请求权限拦截
 *
 * @author bothSavage
 */
@Configuration
public class EmqxAuthInterceptor implements RequestInterceptor {

    @Value("${emqx.rmi.username:x}")
    private String username;

    @Value("${emqx.rmi.password:x}")
    private String password;

    @Override
    public void apply(RequestTemplate template) {
        String auth = username + ":" + password;
        String encodedAuth = Base64.getEncoder().encodeToString(auth.getBytes());
        template.header("Authorization", "Basic " + encodedAuth);
    }

}

dto

package com.bothsavage.common.mqtt.entity.dto;

import com.alibaba.fastjson.annotation.JSONField;

import lombok.Data;

/**
 * dto
 *
 * @author bothSavage
 */
@Data
public class ClientInfoDTO {

    @JSONField(name = "clientid")
    private String clientid;

    @JSONField(name = "mqueue_len")
    private Integer mqueueLen;

    @JSONField(name = "reductions")
    private Integer reductions;

    @JSONField(name = "keepalive")
    private Integer keepalive;

    @JSONField(name = "listener")
    private String listener;

    @JSONField(name = "proto_ver")
    private Integer protoVer;

    @JSONField(name = "recv_msg.dropped.await_pubrel_timeout")
    private Integer recvMsgDroppedAwaitPubrelTimeout;

    @JSONField(name = "send_msg.dropped.expired")
    private Integer sendMsgDroppedExpired;

    @JSONField(name = "mountpoint")
    private Object mountpoint;

    @JSONField(name = "mailbox_len")
    private Integer mailboxLen;

    @JSONField(name = "send_msg")
    private Integer sendMsg;

    @JSONField(name = "zone")
    private String zone;

    @JSONField(name = "subscriptions_cnt")
    private Integer subscriptionsCnt;

    @JSONField(name = "heap_size")
    private Integer heapSize;

    @JSONField(name = "recv_msg")
    private Integer recvMsg;

    @JSONField(name = "recv_cnt")
    private Integer recvCnt;

    @JSONField(name = "send_msg.dropped.too_large")
    private Integer sendMsgDroppedTooLarge;

    @JSONField(name = "awaiting_rel_cnt")
    private Integer awaitingRelCnt;

    @JSONField(name = "subscriptions_max")
    private String subscriptionsMax;

    @JSONField(name = "recv_msg.qos0")
    private Integer recvMsgQos0;

    @JSONField(name = "recv_msg.qos1")
    private Integer recvMsgQos1;

    @JSONField(name = "recv_msg.qos2")
    private Integer recvMsgQos2;

    @JSONField(name = "node")
    private String node;

    @JSONField(name = "inflight_max")
    private Integer inflightMax;

    @JSONField(name = "port")
    private Integer port;

    @JSONField(name = "recv_pkt")
    private Integer recvPkt;

    @JSONField(name = "send_oct")
    private Integer sendOct;

    @JSONField(name = "inflight_cnt")
    private Integer inflightCnt;

    @JSONField(name = "awaiting_rel_max")
    private String awaitingRelMax;

    @JSONField(name = "is_persistent")
    private Boolean isPersistent;

    @JSONField(name = "send_msg.dropped")
    private Integer sendMsgDropped;

    @JSONField(name = "recv_msg.dropped")
    private Integer recvMsgDropped;

    @JSONField(name = "clean_start")
    private Boolean cleanStart;

    @JSONField(name = "send_msg.qos0")
    private Integer sendMsgQos0;

    @JSONField(name = "created_at")
    private String createdAt;

    @JSONField(name = "connected_at")
    private String connectedAt;

    @JSONField(name = "enable_authn")
    private Boolean enableAuthn;

    @JSONField(name = "mqueue_dropped")
    private Integer mqueueDropped;

    @JSONField(name = "is_bridge")
    private Boolean isBridge;

    @JSONField(name = "send_msg.dropped.queue_full")
    private Integer sendMsgDroppedQueueFull;

    @JSONField(name = "proto_name")
    private String protoName;

    @JSONField(name = "ip_address")
    private String ipAddress;

    @JSONField(name = "send_cnt")
    private Integer sendCnt;

    @JSONField(name = "connected")
    private Boolean connected;

    @JSONField(name = "recv_oct")
    private Integer recvOct;

    @JSONField(name = "mqueue_max")
    private Integer mqueueMax;

    @JSONField(name = "send_msg.qos2")
    private Integer sendMsgQos2;

    @JSONField(name = "send_msg.qos1")
    private Integer sendMsgQos1;

    @JSONField(name = "expiry_interval")
    private Integer expiryInterval;

    @JSONField(name = "send_pkt")
    private Integer sendPkt;

    @JSONField(name = "username")
    private String username;

}

test

clientIp = emqxRmiService.getClientById("clientId").getIpAddress();

总结

路线清晰，只是操作起来稍微麻烦点
注意：emqx打开了代理的访问的监听器，只能通过nginx来中转，无法直接链接了
当前只用了一个emqx，没有做集群
docker端口暴露需要前期规划好，要不然特别麻烦
