Springboot项目构建时各种依赖详细介绍与依赖关系说明详解

作者:yyangjun

SpringBoot通过spring-boot-dependencies统一依赖版本管理,spring-boot-starter-web简化Web开发流程,自动配置核心功能,提升开发效率与兼容性,下面通过本文介绍Springboot项目构建时各种依赖详细介绍与依赖关系说明,感兴趣的朋友一起看看吧

一、spring-boot-dependencies

1.简介

  spring-boot-dependencies 是一个特殊的POM(Project Object Model)文件,它由Spring Boot团队维护,其主要作用是为Spring Boot相关的依赖提供统一的版本管理。它定义了大量的依赖及其兼容版本,确保Spring Boot生态中的库能够协同工作。官方仓库地址:
https://repo1.maven.org/maven2/org/springframework/boot/spring-boot-dependencies/3.1.0/spring-boot-dependencies-3.1.0.pom(版本可依据具体项目要求更改)

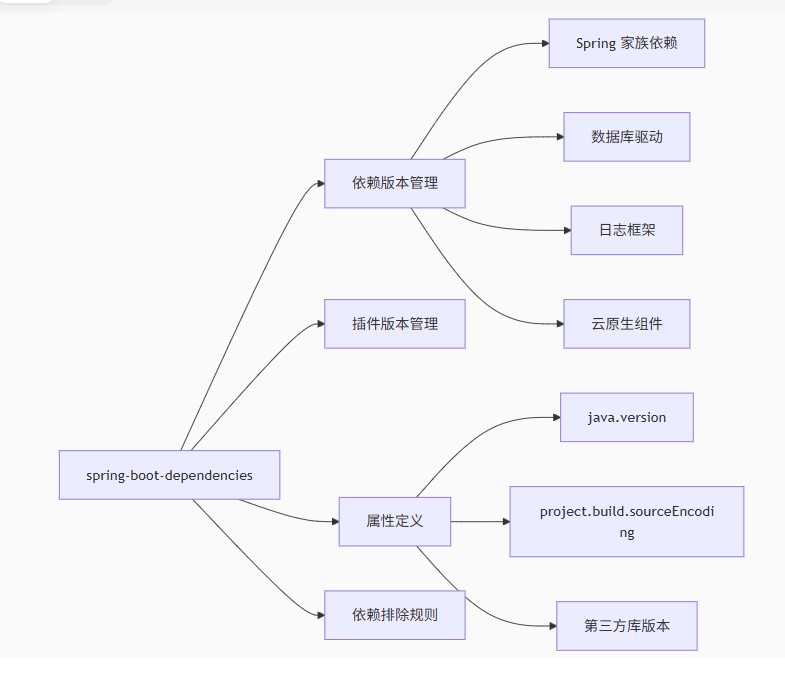

2. 内容概览

spring-boot-dependencies中,主要包含以下内容:

3.核心内容结构

4. 依赖树结构

  spring-boot-dependencies本身并不引入任何依赖,它只是声明依赖版本。当我们在项目中引入一个starter(比如spring-boot-starter-web)时,Maven会根据spring-boot-dependencies中定义的版本去下载对应的依赖。

6. spring-boot-dependencies中的属性

  在spring-boot-dependencies的POM文件中,通过属性定义了各个依赖的版本。例如:

<properties>
<activemq.version>5.16.5</activemq.version>
<antlr2.version>2.7.7</antlr2.version>
<appengine-sdk.version>1.9.88</appengine-sdk.version>
<artemis.version>2.19.1</artemis.version>
<aspectj.version>1.9.7</aspectj.version>
<assertj.version>3.19.0</assertj.version>
<atomikos.version>4.0.6</atomikos.version>
<awaitility.version>4.1.0</awaitility.version>
... 更多属性
</properties>

  然后在依赖管理中引用这些属性:

<dependencyManagement>
<dependencies>
...
<dependency>
<groupId>org.apache.activemq</groupId>
<artifactId>activemq-amqp</artifactId>
<version>${activemq.version}</version>
</dependency>
...
</dependencies>
</dependencyManagement>

6. 如何查看完整的依赖树?

在Maven项目中,可以使用以下命令查看依赖树:

mvn dependency:tree

在Gradle项目中,可以使用:

gradle dependencies

7. 依赖冲突解决

  由于spring-boot-dependencies已经管理了版本,通常不会出现版本冲突。但如果需要覆盖某个依赖的版本,可以在项目的pom.xml中显式声明该依赖并指定版本(会覆盖spring-boot-dependencies中的版本)。例如:

<dependencies>
<dependency>
<groupId>com.fasterxml.jackson.core</groupId>
<artifactId>jackson-databind</artifactId>
<version>2.12.5</version>
</dependency>
</dependencies>

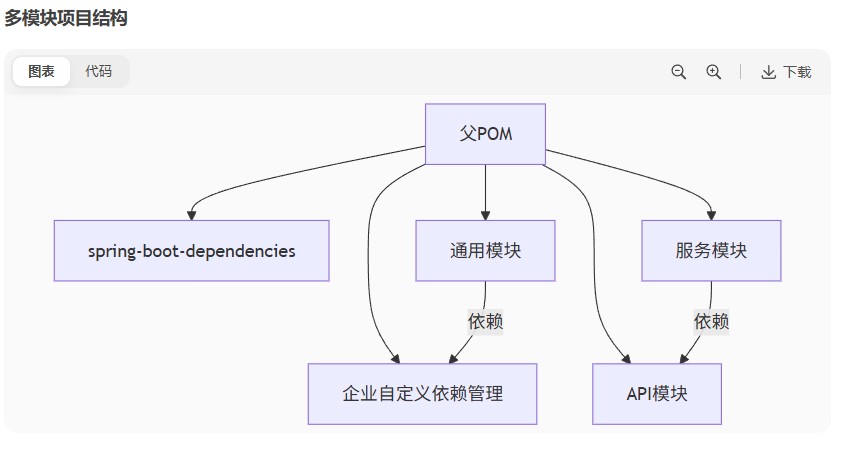

8.企业级实践建议

安全更新策略

版本锁定:在父 POM 中固定 Spring Boot 版本

<properties>
    <spring-boot.version>3.1.0</spring-boot.version>
</properties>

漏洞扫描:定期检查依赖漏洞

mvn org.owasp:dependency-check-maven:check

增量更新:使用版本范围谨慎升级

<spring-boot.version>[3.0.0,3.2.0)</spring-boot.version>

通过 spring-boot-dependencies,Spring Boot 团队为开发者提供了:

9. 总结

通过这种方式,Spring Boot极大地简化了依赖管理,让开发者可以专注于业务逻辑。

二、spring-boot-starter-parent

1.简介

  首先,spring-boot-starter-parent是一个父POM,它继承自spring-boot-dependencies,并且添加了默认的构建配置。

  下面详细说明其内容以及依赖树结构(注意:依赖树结构通常是指项目依赖的传递性依赖,但这里我们更关注的是父POM的继承结构和它带来的构建配置)。

2 .结构图

结构图:

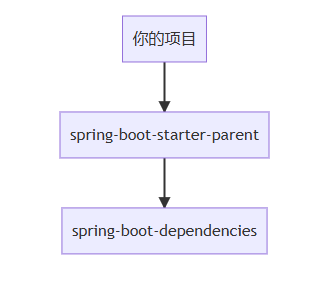

项目POM -> 继承 spring-boot-starter-parent -> 继承 spring-boot-dependencies

项目POM -> spring-boot-starter-parent -> spring-boot-dependencies

构建配置的继承关系(非依赖树,而是POM继承关系)可以用下图表示:

具体内容:

3.主要内容

由于spring-boot-starter-parent本身是一个POM,我们可以查看其内容(以3.1.0版本为例):

官方地址:https://repo1.maven.org/maven2/org/springframework/boot/spring-boot-starter-parent/3.1.0/spring-boot-starter-parent-3.1.0.pom

该POM的主要部分如下

  1. 继承spring-boot-dependencies
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-dependencies</artifactId>
<version>3.1.0</version>
</parent>
  1. 定义属性(覆盖或新增)
<properties>
<java.version>17</java.version> <!-- 默认Java版本 -->
<resource.delimiter>@</resource.delimiter> <!-- 资源过滤占位符分隔符 -->
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <!-- 编码 -->
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<!-- 其他属性 -->
</properties>
  1. 构建配置(build)
  1. 插件配置
  1. 资源过滤(resources):

默认配置了资源过滤,使得在资源文件中可以使用占位符(如@variable@)进行替换。

注意:spring-boot-starter-parent本身不包含任何代码,也不直接添加任何依赖(除了构建插件),它的主要作用是提供构建配置和依赖版本管理。

当我们创建一个项目并继承spring-boot-starter-parent时,项目的POM结构如下:

项目POM:

<project>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>3.1.0</version>
</parent>
... 项目自己的定义 ...
</project>

具体构建配置的内容:

在spring-boot-starter-parent中,配置了以下插件:

另外,资源过滤配置如下:

<resources>
<resource>
<directory>${basedir}/src/main/resources</directory>
<filtering>true</filtering> <!-- 启用过滤 -->
<includes>
<include>**/application*.yml</include>
<include>**/application*.yaml</include>
<include>**/application*.properties</include>
</includes>
</resource>
<!-- 其他资源目录,不启用过滤 -->
<resource>
<directory>${basedir}/src/main/resources</directory>
<excludes>
<exclude>**/application*.yml</exclude>
<exclude>**/application*.yaml</exclude>
<exclude>**/application*.properties</exclude>
</excludes>
</resource>
</resources>

注意:在spring-boot-starter-parent中,资源过滤默认只针对application*.properties, application*.yml, application*.yaml文件。

4.总结:

spring-boot-starter-parent提供了:

这使得开发者无需关心构建细节,只需关注业务代码。

示例:一个典型的Spring Boot项目的POM:

<project>
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>3.1.0</version>
</parent>
<groupId>com.example</groupId>
<artifactId>myproject</artifactId>
<version>1.0.0-SNAPSHOT</version>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
</dependencies>
</project>

在这个项目中,我们不需要指定依赖的版本,因为父POM已经管理了。同时,构建时使用的Java版本、编码、资源过滤等都已经配置好。

注意:如果项目需要自定义父POM,则不能直接继承spring-boot-starter-parent,这时可以采用之前介绍的方式,通过dependencyManagement导入spring-boot-dependencies,并手动配置插件和资源过滤。

三、spring-boot-starter-web

1.简介

  spring-boot-starter-web是 Spring Boot 的核心 Starter 之一,用于快速构建 Web 应用程序。它提供了完整的 Spring MVC 框架支持和内嵌 Servlet 容器,让开发者能立即创建 RESTful 服务或传统 Web 应用。

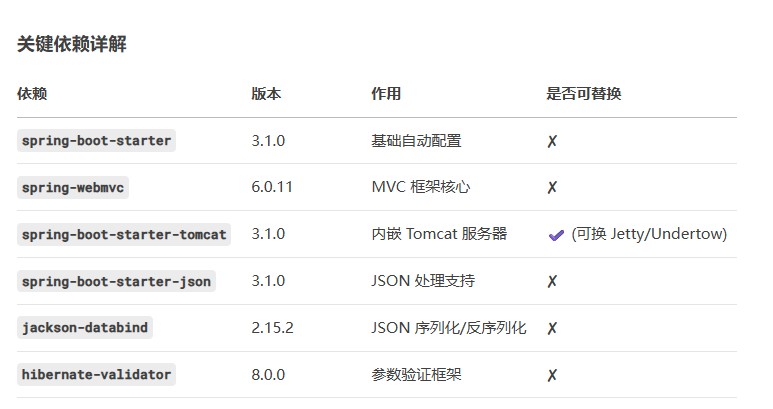

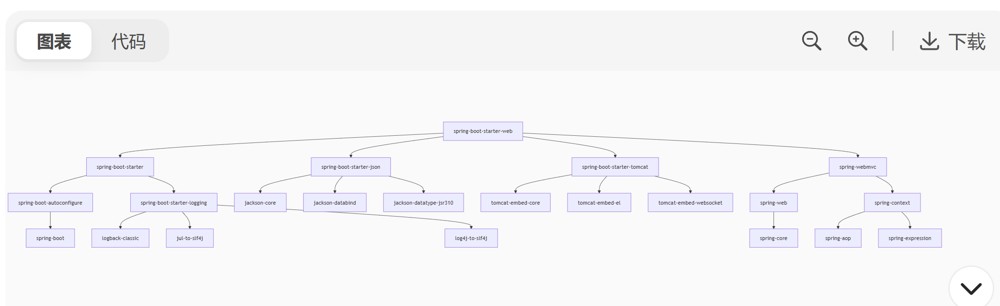

2.结构图

3.使用

自动配置行为
当检测到 spring-boot-starter-web 在类路径中时,自动触发以下配置:

1. Servlet 容器配置

java
@AutoConfiguration
@ConditionalOnWebApplication
@EnableConfigurationProperties(ServerProperties.class)
public class ServletWebServerFactoryAutoConfiguration {
    // 自动配置内嵌Tomcat
    @Bean
    public TomcatServletWebServerFactory tomcatServletWebServerFactory() {
        return new TomcatServletWebServerFactory();
    }
}

2. Spring MVC 配置

@Configuration
@ConditionalOnClass(DispatcherServlet.class)
@AutoConfigureAfter(ServletWebServerFactoryAutoConfiguration.class)
public class WebMvcAutoConfiguration {
    // 配置视图解析器
    @Bean
    @ConditionalOnMissingBean
    public InternalResourceViewResolver defaultViewResolver() {
        // ...
    }
    // 配置消息转换器
    @Bean
    public MappingJackson2HttpMessageConverter mappingJackson2HttpMessageConverter() {
        // ...
    }
}

3. 默认行为

替换tomcat:

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
    <exclusions>
        <exclusion>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
        </exclusion>
    </exclusions>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-jetty</artifactId>
</dependency>

3.http处理流程

客户端 Tomcat 容器 DispatcherServlet @RestController HTTP 请求 请求分发 映射到处理方法 返回结果 响应处理 HTTP 响应 客户端 Tomcat 容器 DispatcherServlet @RestController

4.应用示例

1. 基本配置

server:
  port: 8081
  servlet:
    context-path: /api
  tomcat:
    max-threads: 200

2. 静态资源配置

@Configuration
public class WebConfig implements WebMvcConfigurer {
    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/custom/**")
                .addResourceLocations("classpath:/custom-static/");
    }
}

3. 拦截器配置

@Configuration
public class WebConfig implements WebMvcConfigurer {
    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(new LogInterceptor())
                .addPathPatterns("/api/**");
    }
}

4.RESTful服务开发

@RestController
@RequestMapping("/api/users")
public class UserController {
    @GetMapping
    public ResponseEntity<List<User>> getUsers() {
        // 返回200 OK + JSON列表
    }
    @PostMapping
    @ResponseStatus(HttpStatus.CREATED)
    public User createUser(@Valid @RequestBody User user) {
        // 参数自动验证
    }
}

5.全局异常处理

@ControllerAdvice
public class GlobalExceptionHandler {
    @ExceptionHandler(UserNotFoundException.class)
    public ResponseEntity<ErrorResponse> handleUserNotFound(
        UserNotFoundException ex) {
        return ResponseEntity.status(HttpStatus.NOT_FOUND)
                .body(new ErrorResponse(ex.getMessage()));
    }
}

6. 性能优化配置

spring:
  mvc:
    async:
      request-timeout: 5000 # 异步超时时间
  servlet:
    multipart:
      max-file-size: 10MB
      max-request-size: 20MB
server:
  compression:
    enabled: true
    mime-types: text/html,text/css,application/json

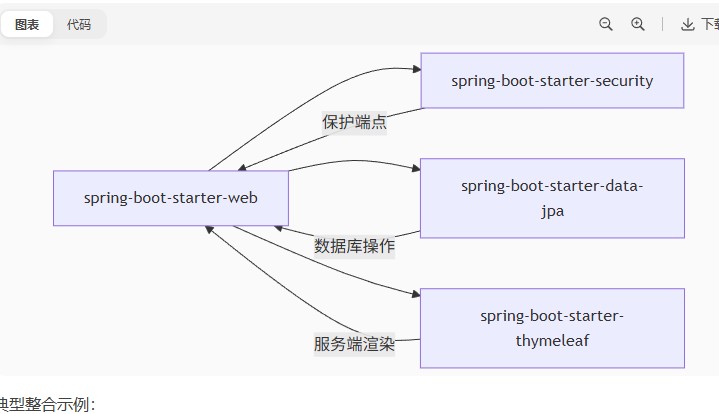

与其他 Starter 的协作

@SpringBootApplication
@EnableJpaRepositories // 启用JPA
@EnableWebSecurity // 启用安全
public class FullStackApp {
    public static void main(String[] args) {
        SpringApplication.run(FullStackApp.class, args);
    }
}

7.总结

性能特性

场景默认配置优化建议
线程池Tomcat 200线程根据CPU核心数调整
连接超时无限制设置server.tomcat.connection-timeout
响应压缩关闭开启server.compression.enabled=true
静态资源缓存关闭添加Cache-Control头
JSON序列化全字段序列化使用@JsonView控制字段

通过 spring-boot-starter-web,开发者能够:

此 Starter 将传统 Spring MVC 应用的配置工作量减少 80%,同时保持完整的灵活性,是构建现代 Java Web 应用的基石。
