Java源码HashMap源码的使用分析

作者:二六八

这篇文章主要介绍了Java源码HashMap源码的使用分析,具有很好的参考价值,希望对大家有所帮助,如有错误或未考虑完全的地方,望不吝赐教

Java 源码 HashMap源码分析

1 初始容量

    /**
     * The default initial capacity - MUST be a power of two.
     * 默认的初始容量,必须为2的幂
     */
    static final int DEFAULT_INITIAL_CAPACITY = 1 << 4; // aka 16

容量表示哈希表中槽的数量(即哈希数组的长度),初始容量是创建哈希表时的容量(从构造函数中可以看出,如果不指明,则默认为16)

无论我们指定的容量为多少,构造方法都会将实际容量设为不小于指定容量的2的次方的一个数,且最大值不能超过2的30次方

2 加载因子

    /**
     * The load factor used when none specified in constructor.
     * 在构造函数中没有指定时使用的加载因子
     */
    static final float DEFAULT_LOAD_FACTOR = 0.75f;

哈希表在其容量自动增加之前可以达到多满的一种尺度,当哈希表中的条目数超出了加载因子与当前容量的乘积时,则要对该哈希表进行 resize 操作(即扩容)。

3 单向链表中的数据节点

static class Node<K,V> implements Map.Entry<K,V> {
        final int hash;
        final K key;
        V value;
        Node<K,V> next;

        Node(int hash, K key, V value, Node<K,V> next) {
            this.hash = hash;
            this.key = key;
            this.value = value;
            this.next = next;
        }

        public final K getKey()        { return key; }
        public final V getValue()      { return value; }
        public final String toString() { return key + "=" + value; }

        public final int hashCode() {
            return Objects.hashCode(key) ^ Objects.hashCode(value);
        }

        public final V setValue(V newValue) {
            V oldValue = value;
            value = newValue;
            return oldValue;
        }

        public final boolean equals(Object o) {
        }
    }

4 红黑树结构

在jdk1.8版本后,java对HashMap做了改进,当链表长度必须大于 2 ,并且应该至少为 8 的时候,将后面的数据存在红黑树中,以加快检索速度,我们接下来讲一下红黑树。

   /**
    * The bin count threshold for using a tree rather than list for a
    * bin.  Bins are converted to trees when adding an element to a
    * bin with at least this many nodes. The value must be greater
    * than 2 and should be at least 8 to mesh with assumptions in
    * tree removal about conversion back to plain bins upon
    * shrinkage.
    */
   static final int TREEIFY_THRESHOLD = 8;

5 概述

概括的说,HashMap 是一个关联数组、哈希表,它是线程不安全的,允许key为null,value为null。遍历时无序。

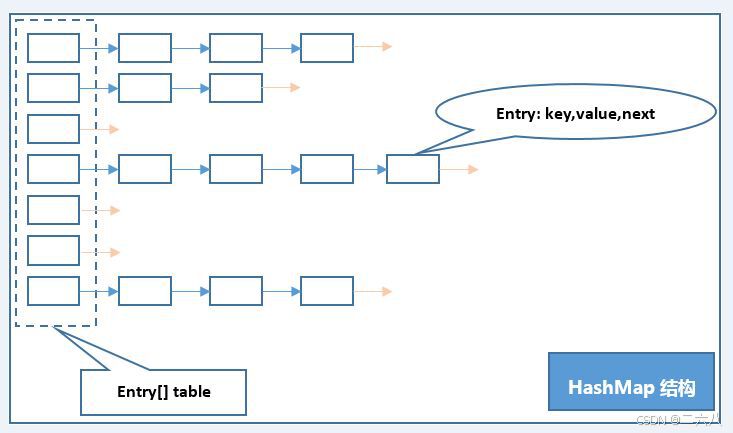

其底层数据结构是数组称之为哈希桶,每个桶里面放的是链表,链表中的每个节点,就是哈希表中的每个元素。

在JDK8中,当链表长度达到8,会转化成红黑树,以提升它的查询、插入效率,它实现了Map<K,V>, Cloneable, Serializable接口。

因其底层哈希桶的数据结构是数组,所以也会涉及到扩容的问题。

当HashMap的容量达到threshold域值时,就会触发扩容。扩容前后,哈希桶的长度一定会是2的次方。

这样在根据key的hash值寻找对应的哈希桶时,可以用位运算替代取余操作,更加高效。

而key的hash值,并不仅仅只是key对象的hashCode()方法的返回值,还会经过扰动函数的扰动,以使hash值更加均衡。

因为hashCode()是int类型,取值范围是40多亿,只要哈希函数映射的比较均匀松散,碰撞几率是很小的。

但就算原本的hashCode()取得很好,每个key的hashCode()不同,但是由于HashMap的哈希桶的长度远比hash取值范围小,默认是16,所以当对hash值以桶的长度取余,以找到存放该key的桶的下标时,由于取余是通过与操作完成的,会忽略hash值的高位。因此只有hashCode()的低位参加运算,发生不同的hash值,但是得到的index相同的情况的几率会大大增加,这种情况称之为hash碰撞。 即,碰撞率会增大。

扰动函数就是为了解决hash碰撞的。它会综合hash值高位和低位的特征,并存放在低位,因此在与运算时,相当于高低位一起参与了运算,以减少hash碰撞的概率。(在JDK8之前,扰动函数会扰动四次,JDK8简化了这个操作)

扩容操作时,会new一个新的Node数组作为哈希桶,然后将原哈希表中的所有数据(Node节点)移动到新的哈希桶中,相当于对原哈希表中所有的数据重新做了一个put操作。所以性能消耗很大,可想而知,在哈希表的容量越大时,性能消耗越明显。

由迭代器的实现可以看出,遍历HashMap时,顺序是按照哈希桶从低到高,链表从前往后,依次遍历的。属于无序集合。

6 put操作

final V putVal(int hash, K key, V value, boolean onlyIfAbsent,
                   boolean evict) {
        Node<K,V>[] tab; Node<K,V> p; int n, i;
        if ((tab = table) == null || (n = tab.length) == 0)
            n = (tab = resize()).length;
        if ((p = tab[i = (n - 1) & hash]) == null)
            tab[i] = newNode(hash, key, value, null);
        else {
            Node<K,V> e; K k;
            if (p.hash == hash &&
                ((k = p.key) == key || (key != null && key.equals(k))))
                e = p;
            else if (p instanceof TreeNode)
                e = ((TreeNode<K,V>)p).putTreeVal(this, tab, hash, key, value);
            else {
                for (int binCount = 0; ; ++binCount) {
                    if ((e = p.next) == null) {
                        p.next = newNode(hash, key, value, null);
                        if (binCount >= TREEIFY_THRESHOLD - 1) // -1 for 1st
                            treeifyBin(tab, hash);
                        break;
                    }
                    if (e.hash == hash &&
                        ((k = e.key) == key || (key != null && key.equals(k))))
                        break;
                    p = e;
                }
            }
            if (e != null) { // existing mapping for key
                V oldValue = e.value;
                if (!onlyIfAbsent || oldValue == null)
                    e.value = value;
                afterNodeAccess(e);
                return oldValue;
            }
        }
        ++modCount;
        if (++size > threshold)
            resize();
        afterNodeInsertion(evict);
        return null;
    }

7 重写equals方法需同时重写hashCode方法

关于HashMap的源码分析就介绍到这儿了,最后我们再聊聊老生常谈的一个问题,各种资料上都会提到,“重写equals时也要同时覆盖hashcode”,我们举个小例子来看看,如果重写了equals而不重写hashcode会发生什么样的问题

/**
 * Created by chengxiao on 2016/11/15.
 */
public class MyTest {
    private static class Person{
        int idCard;
        String name;

        public Person(int idCard, String name) {
            this.idCard = idCard;
            this.name = name;
        }
        @Override
        public boolean equals(Object o) {
            if (this == o) {
                return true;
            }
            if (o == null || getClass() != o.getClass()){
                return false;
            }
            Person person = (Person) o;
            //两个对象是否等值,通过idCard来确定
            return this.idCard == person.idCard;
        }

    }
    public static void main(String []args){
        HashMap<Person,String> map = new HashMap<Person, String>();
        Person person = new Person(1234,"乔峰");
        //put到hashmap中去
        map.put(person,"天龙八部");
        //get取出,从逻辑上讲应该能输出“天龙八部”
        System.out.println("结果:"+map.get(new Person(1234,"萧峰")));
    }
}

如果我们已经对HashMap的原理有了一定了解,这个结果就不难理解了。尽管我们在进行get和put操作的时候,使用的key从逻辑上讲是等值的(通过equals比较是相等的),但由于没有重写hashCode方法,所以put操作时,key(hashcode1)–>hash–>indexFor–>最终索引位置 ,而通过key取出value的时候 key(hashcode1)–>hash–>indexFor–>最终索引位置,由于hashcode1不等于hashcode2,导致没有定位到一个数组位置而返回逻辑上错误的值null(也有可能碰巧定位到一个数组位置,但是也会判断其entry的hash值是否相等,上面get方法中有提到。)

所以,在重写equals的方法的时候,必须注意重写hashCode方法,同时还要保证通过equals判断相等的两个对象,调用hashCode方法要返回同样的整数值。而如果equals判断不相等的两个对象,其hashCode可以相同(只不过会发生哈希冲突,应尽量避免)。

8 数组的最大容量

    /**
    * The maximum capacity, used if a higher value is implicitly specified
    * by either of the constructors with arguments.
    * MUST be a power of two <= 1<<30.
    */
static final int MAXIMUM_CAPACITY = 1 << 30;

最大容量(必须是2的幂且小于2的30次方,传入容量过大将被这个值替换)

如果传入的容量cap不是2的幂次方,则找出"大于cap"的最小的2的幂

9 存放的最大元素数量

显然是 Integer.MAX_VALUE

if (oldCap >= MAXIMUM_CAPACITY) {
    threshold = Integer.MAX_VALUE;
    return oldTab;
}

10 扩容

注意:扩容后,每个键值对数据存储的索引下标需要重新计算。通过公式:keyHash&(newLength-1)。结果会变成:newIndex = oldIndex + 扩容增加的长度。

final Node<K,V>[] resize() {
    Node<K,V>[] oldTab = table;
    int oldCap = (oldTab == null) ? 0 : oldTab.length;
    int oldThr = threshold;
    int newCap, newThr = 0;
    if (oldCap > 0) {
        if (oldCap >= MAXIMUM_CAPACITY) {
            threshold = Integer.MAX_VALUE;
            return oldTab;
        }
        else if ((newCap = oldCap << 1) < MAXIMUM_CAPACITY &&
                    oldCap >= DEFAULT_INITIAL_CAPACITY)
            newThr = oldThr << 1; // double threshold
    }
    else if (oldThr > 0) // initial capacity was placed in threshold
        newCap = oldThr;
    else {               // zero initial threshold signifies using defaults
        newCap = DEFAULT_INITIAL_CAPACITY;
        newThr = (int)(DEFAULT_LOAD_FACTOR * DEFAULT_INITIAL_CAPACITY);
    }
    if (newThr == 0) {
        float ft = (float)newCap * loadFactor;
        newThr = (newCap < MAXIMUM_CAPACITY && ft < (float)MAXIMUM_CAPACITY ?
                    (int)ft : Integer.MAX_VALUE);
    }
    threshold = newThr;
    @SuppressWarnings({"rawtypes","unchecked"})
    Node<K,V>[] newTab = (Node<K,V>[])new Node[newCap];
    table = newTab;
    if (oldTab != null) {
        for (int j = 0; j < oldCap; ++j) {
            Node<K,V> e;
            if ((e = oldTab[j]) != null) {
                oldTab[j] = null;
                if (e.next == null)
                    newTab[e.hash & (newCap - 1)] = e;
                else if (e instanceof TreeNode)
                    ((TreeNode<K,V>)e).split(this, newTab, j, oldCap);
                else { // preserve order
                    Node<K,V> loHead = null, loTail = null;
                    Node<K,V> hiHead = null, hiTail = null;
                    Node<K,V> next;
                    do {
                        next = e.next;
                        if ((e.hash & oldCap) == 0) {
                            if (loTail == null)
                                loHead = e;
                            else
                                loTail.next = e;
                            loTail = e;
                        }
                        else {
                            if (hiTail == null)
                                hiHead = e;
                            else
                                hiTail.next = e;
                            hiTail = e;
                        }
                    } while ((e = next) != null);
                    if (loTail != null) {
                        loTail.next = null;
                        newTab[j] = loHead;
                    }
                    if (hiTail != null) {
                        hiTail.next = null;
                        newTab[j + oldCap] = hiHead;
                    }
                }
            }
        }
    }
    return newTab;
}

总结

以上为个人经验,希望能给大家一个参考,也希望大家多多支持脚本之家。
