使用PowerShell实现视频抽帧的完全指南
作者:奶糖 肥晨
抽帧(Frame Extraction)是指从视频文件中按一定间隔提取静态图片的过程,本文将教你如何使用PowerShell实现智能抽帧,删除3/4的图片并压缩画质,大幅优化存储效率,需要的朋友可以参考下
前言:什么是抽帧?为什么需要抽帧?
抽帧(Frame Extraction)是指从视频文件中按一定间隔提取静态图片的过程。这在很多场景下都非常有用:
- 视频剪辑预览:快速浏览视频关键画面
- 机器学习:为AI训练准备图像数据
- 视频分析:分析镜头变化、运动轨迹
- 存储优化:用关键帧代表整个视频内容
- 艺术创作:将视频转化为序列图片进行二次创作
本文将教你如何使用PowerShell实现智能抽帧——删除3/4的图片并压缩画质,大幅优化存储效率。

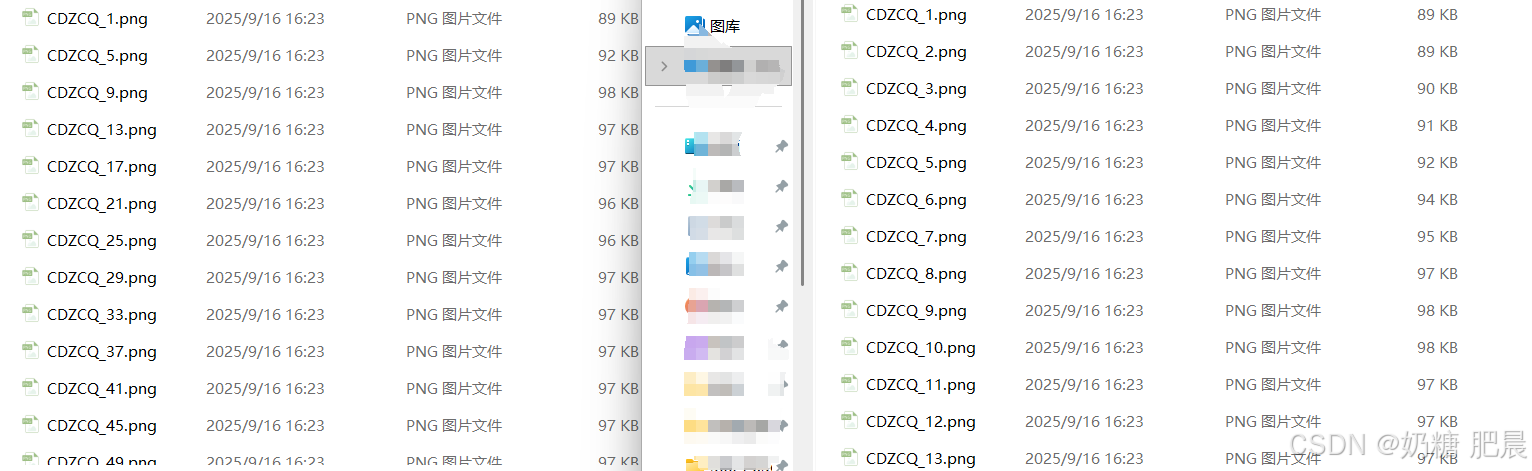

实现效果:
环境准备
基础环境要求
- Windows PowerShell 5.1 或更高版本
- .NET Framework 4.5+(用于图片处理)
- 足够的磁盘空间存放临时文件
可选工具(增强功能)
- ImageMagick:更高效的图片处理工具
- FFmpeg:专业的视频处理工具(用于从视频直接抽帧)
方案一:基础抽帧与压缩脚本
完整代码
# 抽帧压缩大师 v1.0 # 功能:智能保留25%图片 + 画质压缩 param( [string]$FolderPath = "C:\Your\ImageSequence", # 图片序列文件夹 [int]$Quality = 50, # 压缩质量 1-100 [switch]$Preview # 预览模式 ) # 导入图片处理库 Add-Type -AssemblyName System.Drawing function Start-FrameExtraction { Write-Host "=== 抽帧压缩大师开始工作 ===" -ForegroundColor Cyan # 设置工作目录 if (-not (Test-Path $FolderPath)) { Write-Host "错误:文件夹不存在!" -ForegroundColor Red return } Set-Location $FolderPath # 获取图片序列 $files = Get-ChildItem "CDZCQ_*.png" | Sort-Object { [int]($_.BaseName -replace 'CDZCQ_', '') } if ($files.Count -eq 0) { Write-Host "未找到CDZCQ_*.png格式的图片文件!" -ForegroundColor Red return } Display-ProcessingInfo $files if ($Preview) { return } # 预览模式提前退出 # 执行备份 $backupFolder = Backup-Files $files # 执行抽帧压缩 Process-FrameExtraction $files $Quality Write-Host "`n=== 处理完成! ===" -ForegroundColor Green Write-Host "备份位置: $backupFolder" -ForegroundColor Cyan } function Display-ProcessingInfo { param($files) $totalFiles = $files.Count $filesToKeep = [math]::Ceiling($totalFiles / 4) $filesToDelete = $totalFiles - $filesToKeep $compressionRatio = "约$((100-$Quality))%" Write-Host "`n📊 处理统计:" -ForegroundColor Yellow Write-Host " 总文件数: $totalFiles" -ForegroundColor White Write-Host " 保留文件: $filesToKeep (25%)" -ForegroundColor Green Write-Host " 删除文件: $filesToDelete (75%)" -ForegroundColor Red Write-Host " 压缩质量: $Quality (体积减少$compressionRatio)" -ForegroundColor Blue if ($Preview) { Write-Host "`n👀 预览保留的文件:" -ForegroundColor Magenta for ($i = 0; $i -lt $files.Count; $i += 4) { Write-Host " ✓ $($files[$i].Name)" -ForegroundColor Green } } } function Backup-Files { param($files) $backupFolder = "Backup_Frames_$(Get-Date -Format 'yyyyMMdd_HHmmss')" Write-Host "`n📦 创建备份: $backupFolder" -ForegroundColor Cyan New-Item -ItemType Directory -Path $backupFolder -Force | Out-Null Copy-Item "CDZCQ_*.png" $backupFolder return $backupFolder } function Process-FrameExtraction { param($files, $quality) $keepCount = 0 $deleteCount = 0 Write-Host "`n🔄 开始处理..." -ForegroundColor Yellow for ($i = 0; $i -lt $files.Count; $i++) { $file = $files[$i] # 每4帧保留第1帧 if ($i % 4 -eq 0) { if (Compress-Image -InputPath $file.FullName -Quality $quality) { Write-Host " ✓ 保留: $($file.Name)" -ForegroundColor Green $keepCount++ } } else { Remove-Item $file.FullName -Force Write-Host " ✗ 删除: $($file.Name)" -ForegroundColor Gray $deleteCount++ } } Write-Host "`n📈 处理结果:" -ForegroundColor Yellow Write-Host " 成功保留: $keepCount 个文件" -ForegroundColor Green Write-Host " 已删除: $deleteCount 个文件" -ForegroundColor Red } function Compress-Image { param([string]$InputPath, [int]$Quality) try { $bitmap = [System.Drawing.Bitmap]::FromFile($InputPath) # 获取编码器 $codecInfo = [System.Drawing.Imaging.ImageCodecInfo]::GetImageEncoders() | Where-Object { $_.MimeType -eq 'image/jpeg' } $encoderParams = New-Object System.Drawing.Imaging.EncoderParameters(1) $encoderParams.Param[0] = New-Object System.Drawing.Imaging.EncoderParameter( [System.Drawing.Imaging.Encoder]::Quality, $Quality ) # 临时文件 $tempFile = [System.IO.Path]::ChangeExtension($InputPath, ".tmp") $bitmap.Save($tempFile, $codecInfo, $encoderParams) $bitmap.Dispose() # 替换原文件 Remove-Item $InputPath -Force Move-Item $tempFile $InputPath -Force return $true } catch { Write-Host " 压缩失败: $($_.Exception.Message)" -ForegroundColor Red return $false } } # 启动处理 Start-FrameExtraction
使用方法
# 基本用法 .\FrameExtraction.ps1 -FolderPath "C:\MyFrames" # 自定义质量 .\FrameExtraction.ps1 -FolderPath "C:\MyFrames" -Quality 75 # 预览模式(不实际执行) .\FrameExtraction.ps1 -FolderPath "C:\MyFrames" -Preview
方案二:智能均匀抽帧算法
均匀分布的优势
基础方案采用"每4帧保留1帧"的简单策略,但可能造成内容分布不均。智能算法确保在整个时间轴上均匀采样:
function Smart-FrameExtraction { param($files, $quality) $totalFiles = $files.Count $filesToKeep = [math]::Ceiling($totalFiles / 4) # 计算均匀分布的索引 $keepIndices = @() $step = $totalFiles / $filesToKeep Write-Host "`n🎯 智能均匀抽帧算法" -ForegroundColor Magenta Write-Host " 采样间隔: $([math]::Round($step, 2)) 帧" -ForegroundColor White for ($i = 0; $i -lt $filesToKeep; $i++) { $index = [math]::Round($i * $step) if ($index -ge $totalFiles) { $index = $totalFiles - 1 } $keepIndices += $index } # 处理文件 for ($i = 0; $i -lt $files.Count; $i++) { if ($keepIndices -contains $i) { Compress-Image -InputPath $files[$i].FullName -Quality $quality Write-Host " ✓ 保留[$i]: $($files[$i].Name)" -ForegroundColor Green } else { Remove-Item $files[$i].FullName -Force } } }
方案三:基于FFmpeg的专业级抽帧
安装FFmpeg
# Windows使用choco安装 choco install ffmpeg # 或手动下载添加到PATH
直接从视频抽帧
function Extract-FramesFromVideo { param( [string]$VideoPath, [string]$OutputFolder, [int]$FrameRate = 6 # 每秒抽取6帧 ) if (-not (Get-Command "ffmpeg" -ErrorAction SilentlyContinue)) { Write-Host "请先安装FFmpeg!" -ForegroundColor Red return } New-Item -ItemType Directory -Path $OutputFolder -Force | Out-Null # 抽帧命令 $outputPattern = Join-Path $OutputFolder "frame_%04d.png" & ffmpeg -i $VideoPath -r $FrameRate -qscale:v 2 $outputPattern Write-Host "抽帧完成!输出到: $OutputFolder" -ForegroundColor Green } # 使用示例 Extract-FramesFromVideo -VideoPath "input.mp4" -OutputFolder "extracted_frames"
实际应用案例
案例1:监控视频分析
# 监控视频通常帧率较高,需要大幅抽帧 .\FrameExtraction.ps1 -FolderPath "C:\SecurityCam" -Quality 40 # 从30fps抽到约2fps,适合行为分析
案例2:动画制作预览
# 动画序列需要较高质量 .\FrameExtraction.ps1 -FolderPath "C:\AnimationFrames" -Quality 80 # 保留更多细节,便于艺术审查
案例3:机器学习数据集准备
# AI训练需要平衡质量和数量 .\FrameExtraction.ps1 -FolderPath "C:\TrainingData" -Quality 60 # 均匀采样确保数据代表性
性能优化技巧
1. 批量处理优化
# 使用工作流提高大文件处理效率 workflow Optimized-Processing { param($files, $quality) foreach -parallel ($file in $files) { # 并行处理 } }
2. 内存管理
# 及时释放图片资源 function Safe-Compress { param($filePath, $quality) $bitmap = $null try { $bitmap = [System.Drawing.Bitmap]::FromFile($filePath) # 处理图片... } finally { if ($bitmap) { $bitmap.Dispose() } } }
3. 进度显示
# 显示处理进度 function Show-Progress { param($current, $total, $activity) $percent = [math]::Round(($current / $total) * 100, 2) Write-Progress -Activity $activity -Status "进度: $percent%" -PercentComplete $percent }
故障排除
常见问题及解决方案
“程序集加载失败”
# 解决方案:使用.NET Core替代 Add-Type -AssemblyName System.Drawing.Common
“文件被占用”
# 解决方案:重试机制 function Safe-FileOperation { param($filePath) for ($i = 0; $i -lt 3; $i++) { try { # 文件操作 break } catch { Start-Sleep -Seconds 1 } } }
内存不足
# 解决方案:分块处理 $chunks = $files | Group-Object -Property { [math]::Floor($i++ / 50) } foreach ($chunk in $chunks) { Process-Chunk $chunk.Group [GC]::Collect() # 强制垃圾回收 }
抽帧后序列号重排如何实现
抽帧处理后,原始序列:
CDZCQ_1.png CDZCQ_2.png CDZCQ_3.png CDZCQ_4.png ... CDZCQ_125.png
抽帧后(保留25%):
CDZCQ_1.png CDZCQ_5.png CDZCQ_9.png CDZCQ_13.png ...
问题:序列号不连续,影响后续处理和使用
目标:重命名为连续序列
CDZCQ_1.png CDZCQ_2.png CDZCQ_3.png CDZCQ_4.png ...
完整的抽帧+重排一体化脚本
# 抽帧压缩与序列重排一体化解决方案 param( [string]$FolderPath = "C:\Your\ImageSequence", [int]$Quality = 50, [switch]$Preview, [int]$StartNumber = 1 # 起始序列号 ) Add-Type -AssemblyName System.Drawing function Start-IntelligentFrameExtraction { Write-Host "=== 智能抽帧与序列重排 ===" -ForegroundColor Cyan # 初始化 if (-not (Test-Path $FolderPath)) { Write-Host "错误:文件夹不存在!" -ForegroundColor Red return } Set-Location $FolderPath # 获取并排序原始文件 $originalFiles = Get-ChildItem "CDZCQ_*.png" | Sort-Object { [int]($_.BaseName -replace 'CDZCQ_', '') } if ($originalFiles.Count -eq 0) { Write-Host "未找到CDZCQ_*.png格式的图片文件!" -ForegroundColor Red return } Display-ProcessingPlan $originalFiles if ($Preview) { return } # 执行处理流程 $backupFolder = Backup-OriginalFiles $originalFiles $remainingFiles = Extract-AndCompressFrames $originalFiles $Quality $renamedFiles = Renumber-Sequence $remainingFiles $StartNumber Show-FinalResult $originalFiles $renamedFiles $backupFolder } function Display-ProcessingPlan { param($files) $totalFiles = $files.Count $filesToKeep = [math]::Ceiling($totalFiles / 4) Write-Host "`n📊 处理计划:" -ForegroundColor Yellow Write-Host " 原始文件数: $totalFiles" -ForegroundColor White Write-Host " 保留文件数: $filesToKeep (25%)" -ForegroundColor Green Write-Host " 起始序列号: $StartNumber" -ForegroundColor Blue if ($Preview) { Write-Host "`n👀 预览处理效果:" -ForegroundColor Magenta Write-Host " 原始序列 → 抽帧后 → 重排后" -ForegroundColor Cyan Write-Host " " + "-" * 50 -ForegroundColor Gray $newIndex = $StartNumber for ($i = 0; $i -lt $files.Count; $i += 4) { if ($i -lt $files.Count) { $originalName = $files[$i].Name $afterRename = "CDZCQ_$newIndex.png" Write-Host " $originalName → 保留 → $afterRename" -ForegroundColor White $newIndex++ } } } } function Backup-OriginalFiles { param($files) $backupFolder = "Original_Backup_$(Get-Date -Format 'yyyyMMdd_HHmmss')" Write-Host "`n📦 创建原始文件备份: $backupFolder" -ForegroundColor Cyan New-Item -ItemType Directory -Path $backupFolder -Force | Out-Null Copy-Item "CDZCQ_*.png" $backupFolder return $backupFolder } function Extract-AndCompressFrames { param($files, $quality) Write-Host "`n🔄 开始抽帧与压缩..." -ForegroundColor Yellow $remainingFiles = @() for ($i = 0; $i -lt $files.Count; $i++) { $file = $files[$i] if ($i % 4 -eq 0) { # 压缩并记录保留的文件 if (Compress-Image -InputPath $file.FullName -Quality $quality) { $remainingFiles += $file Write-Host " ✓ 保留: $($file.Name)" -ForegroundColor Green } } else { Remove-Item $file.FullName -Force Write-Host " ✗ 删除: $($file.Name)" -ForegroundColor Gray } } return $remainingFiles } function Renumber-Sequence { param($files, $startNumber) Write-Host "`n🔢 开始序列号重排..." -ForegroundColor Yellow $renamedFiles = @() $currentNumber = $startNumber # 先按原始序列号排序确保顺序正确 $sortedFiles = $files | Sort-Object { [int]($_.BaseName -replace 'CDZCQ_', '') } foreach ($file in $sortedFiles) { $newName = "CDZCQ_$currentNumber$($file.Extension)" $newPath = Join-Path $file.Directory.FullName $newName try { # 检查目标文件名是否已存在(处理冲突) if (Test-Path $newPath) { Write-Host " ⚠ 跳过: $newName 已存在" -ForegroundColor Yellow $renamedFiles += Get-Item $newPath } else { Rename-Item -Path $file.FullName -NewName $newName Write-Host " 🔄 重命名: $($file.Name) → $newName" -ForegroundColor Cyan $renamedFiles += Get-Item $newPath } $currentNumber++ } catch { Write-Host " ❌ 重命名失败: $($file.Name) → $newName" -ForegroundColor Red Write-Host " 错误: $($_.Exception.Message)" -ForegroundColor Red } } return $renamedFiles } function Compress-Image { param([string]$InputPath, [int]$Quality) try { $bitmap = [System.Drawing.Bitmap]::FromFile($InputPath) $codecInfo = [System.Drawing.Imaging.ImageCodecInfo]::GetImageEncoders() | Where-Object { $_.MimeType -eq 'image/jpeg' } $encoderParams = New-Object System.Drawing.Imaging.EncoderParameters(1) $encoderParams.Param[0] = New-Object System.Drawing.Imaging.EncoderParameter( [System.Drawing.Imaging.Encoder]::Quality, $Quality ) $tempFile = [System.IO.Path]::ChangeExtension($InputPath, ".tmp") $bitmap.Save($tempFile, $codecInfo, $encoderParams) $bitmap.Dispose() Remove-Item $InputPath -Force Move-Item $tempFile $InputPath -Force return $true } catch { Write-Host " 压缩失败: $($_.Exception.Message)" -ForegroundColor Red return $false } } function Show-FinalResult { param($originalFiles, $renamedFiles, $backupFolder) Write-Host "`n🎉 处理完成!" -ForegroundColor Green Write-Host "📊 最终统计:" -ForegroundColor Yellow Write-Host " 原始文件数: $($originalFiles.Count)" -ForegroundColor White Write-Host " 最终文件数: $($renamedFiles.Count)" -ForegroundColor Green Write-Host " 备份位置: $backupFolder" -ForegroundColor Cyan Write-Host "`n📁 最终文件列表:" -ForegroundColor Magenta $renamedFiles | Sort-Object { [int]($_.BaseName -replace 'CDZCQ_', '') } | ForEach-Object { Write-Host " ✓ $($_.Name)" -ForegroundColor Green } } # 启动处理 Start-IntelligentFrameExtraction
使用示例
基础用法
# 一体化处理(推荐) .\FrameExtractionWithRenumber.ps1 -FolderPath "C:\MyFrames" -Quality 60 -StartNumber 1 # 仅重排已抽帧的文件 .\RenumberSequence.ps1 -FolderPath "C:\AlreadyExtracted" -StartNumber 1 # 预览模式 .\RenumberSequence.ps1 -FolderPath "C:\MyFrames" -Preview
高级用法
# 自定义命名模式 .\AdvancedRenumber.ps1 -Pattern "frame_*.jpg" -NewPattern "scene_{0:000}" -StartIndex 1 # 设置步长 .\AdvancedRenumber.ps1 -Pattern "IMG*.png" -NewPattern "photo_{0}" -StartIndex 10 -Step 2
处理效果对比
处理前(抽帧后不连续)
CDZCQ_1.png CDZCQ_5.png CDZCQ_9.png CDZCQ_13.png CDZCQ_17.png
处理后(连续序列)
CDZCQ_1.png CDZCQ_2.png CDZCQ_3.png CDZCQ_4.png CDZCQ_5.png
技术要点
1. 安全重命名策略
- 使用临时文件夹避免文件覆盖
- 先复制后删除确保数据安全
- 异常处理保证流程完整性
2. 智能排序保障
# 确保按数字顺序排序 Sort-Object { [int]($_.BaseName -replace 'CDZCQ_', '') }
3. 灵活的命名模式
支持各种命名约定:
CDZCQ_1
,CDZCQ_2
…frame_001
,frame_002
…scene_1
,scene_2
…
以上就是使用PowerShell实现视频抽帧的完全指南的详细内容,更多关于PowerShell视频抽帧的资料请关注脚本之家其它相关文章!
