Vue使用vxe-table实现数据分组的三种方式

2026-06-02 09:38:44 作者：daols88

本文详细介绍了vxe-table在分分展示分组数据时的三种模式：default、column和combined,这些模式可根据不同业务场景灵活切换,满足不同展示需求,需要的朋友可以参考下

在表格中展示分组数据时，不同的业务场景需要不同的层级呈现方式。vxe-table 提供了三种灵活的分组展示模式，通过 aggregateConfig.mode 参数即可轻松切换。

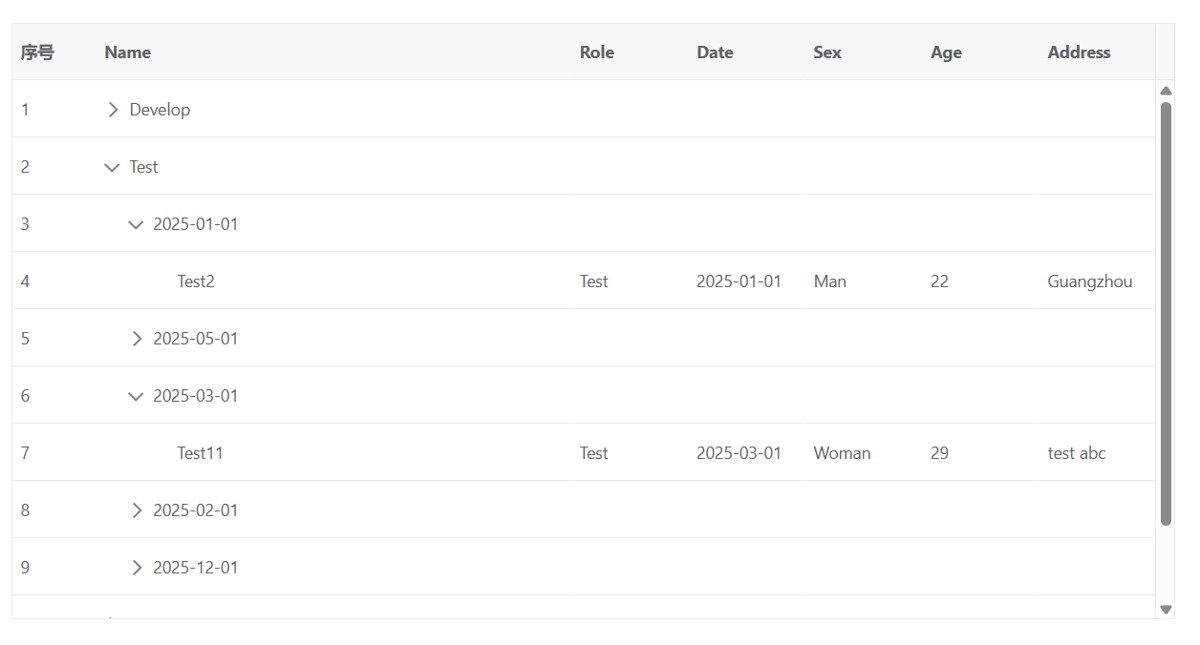

指定列按层级展示

说明：默认是参数 aggregate-config.mode=default 是自定根据分组字段按层级展示分组，分组层级按照指定的 rowGroupNode 列来展开，分组的缩进和树形结构展示在设置了 rowGroupNode: true 的列上。
适用场景：需要将分组标识放在某个特定列（如名称列），其他分组字段作为普通列展示。

<template>
  <div>
    <vxe-grid v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script setup>
import { reactive } from 'vue'
const gridOptions = reactive({
  height: 500,
  showOverflow: true,
  aggregateConfig: {
    groupFields: ['role', 'date']
  },
  columns: [
    { type: 'seq', width: 70 },
    { field: 'name', title: 'Name', minWidth: 300, rowGroupNode: true },
    { field: 'role', title: 'Role' },
    { field: 'date', title: 'Date' },
    { field: 'sex', title: 'Sex' },
    { field: 'age', title: 'Age' },
    { field: 'address', title: 'Address' }
  ],
  data: [
    { id: 10001, name: 'Test1', role: 'Develop', sex: 'Woman', age: 28, date: '2025-02-01', address: 'test abc' },
    { id: 10002, name: 'Test2', role: 'Test', sex: 'Man', age: 22, date: '2025-01-01', address: 'Guangzhou' },
    { id: 10003, name: 'Test3', role: 'PM', sex: 'Woman', age: 32, date: '2025-05-01', address: 'Shanghai' },
    { id: 10004, name: 'Test4', role: 'Designer', sex: 'Man', age: 32, date: '2025-01-01', address: 'test abc' },
    { id: 10005, name: 'Test5', role: 'Develop', sex: 'Man', age: 30, date: '2025-01-01', address: 'Shanghai' },
    { id: 10006, name: 'Test6', role: 'Designer', sex: 'Man', age: 30, date: '2025-03-01', address: 'test abc' },
    { id: 10007, name: 'Test7', role: 'Test', sex: 'Woman', age: 29, date: '2025-05-01', address: 'test abc' },
    { id: 10008, name: 'Test8', role: 'PM', sex: 'Woman', age: 35, date: '2025-11-01', address: 'test abc' },
    { id: 10009, name: 'Test9', role: 'Test', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
    { id: 10010, name: 'Test10', role: 'PM', sex: 'Woman', age: 28, date: '2025-03-01', address: 'test abc' },
    { id: 10011, name: 'Test11', role: 'Test', sex: 'Woman', age: 29, date: '2025-03-01', address: 'test abc' },
    { id: 10012, name: 'Test12', role: 'Develop', sex: 'Man', age: 37, date: '2025-10-01', address: 'test abc' },
    { id: 10013, name: 'Test13', role: 'Test', sex: 'Woman', age: 24, date: '2025-02-01', address: 'test abc' },
    { id: 10014, name: 'Test14', role: 'Develop', sex: 'Man', age: 34, date: '2025-08-01', address: 'test abc' },
    { id: 10015, name: 'Test15', role: 'Designer', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
    { id: 10016, name: 'Test16', role: 'Designer', sex: 'Woman', age: 21, date: '2025-10-01', address: 'test abc' },
    { id: 10017, name: 'Test17', role: 'Test', sex: 'Man', age: 31, date: '2025-12-01', address: 'test abc' },
    { id: 10018, name: 'Test18', role: 'Develop', sex: 'Woman', age: 32, date: '2025-10-01', address: 'test abc' },
    { id: 10019, name: 'Test19', role: 'Test', sex: 'Man', age: 37, date: '2025-02-01', address: 'test abc' },
    { id: 10020, name: 'Test20', role: 'Develop', sex: 'Man', age: 41, date: '2025-03-01', address: 'test abc' }
  ]
})
</script>

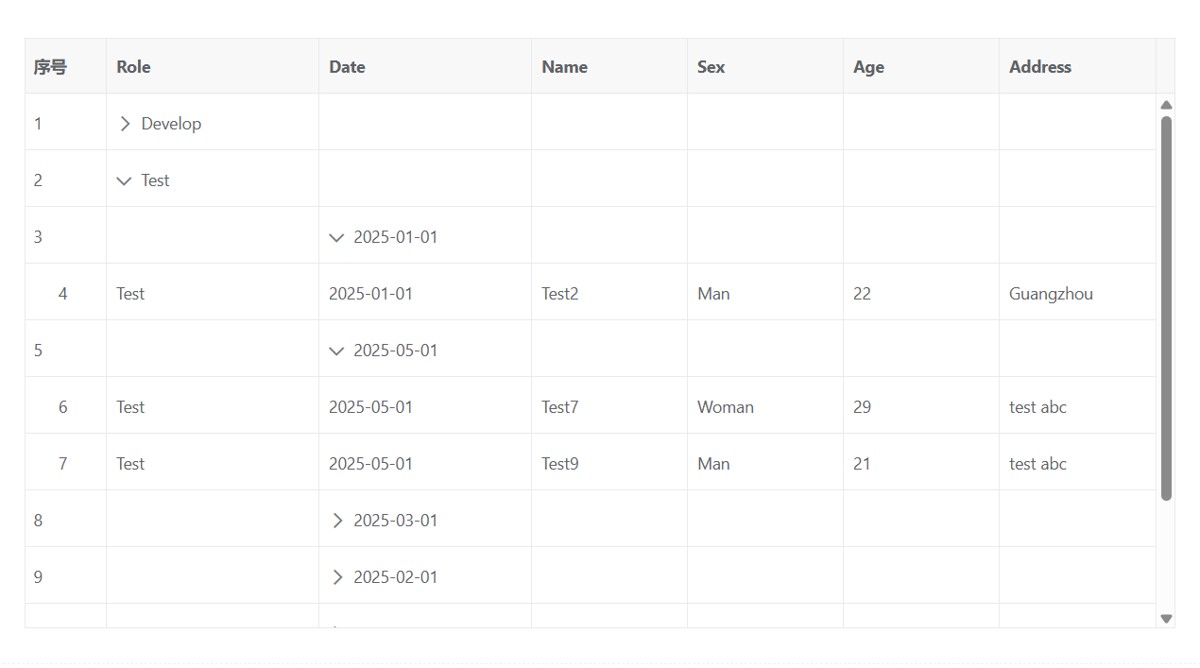

自动按列位置来展示层级

说明：通过 aggregate-config.mode=column 设置为自动根据分组字段锁对应的列来展示层级关系，分组层级自动与 groupFields 中字段的列位置对齐——每个分组字段独立占一列，并在该列内展示对应的分组缩进。无需设置 rowGroupNode。
适用场景：希望分组字段列本身就能体现层级关系，直观看到“角色 → 日期”的树形结构。

<template>
  <div>
    <vxe-grid v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script setup>
import { reactive } from 'vue'
const gridOptions = reactive({
  height: 500,
  border: true,
  showOverflow: true,
  aggregateConfig: {
    mode: 'column',
    groupFields: ['role', 'date']
  },
  columns: [
    { type: 'seq', width: 70 },
    { field: 'role', title: 'Role', width: 180 },
    { field: 'date', title: 'Date', width: 180 },
    { field: 'name', title: 'Name' },
    { field: 'sex', title: 'Sex' },
    { field: 'age', title: 'Age' },
    { field: 'address', title: 'Address' }
  ],
  data: [
    { id: 10001, name: 'Test1', role: 'Develop', sex: 'Woman', age: 28, date: '2025-02-01', address: 'test abc' },
    { id: 10002, name: 'Test2', role: 'Test', sex: 'Man', age: 22, date: '2025-01-01', address: 'Guangzhou' },
    { id: 10003, name: 'Test3', role: 'PM', sex: 'Woman', age: 32, date: '2025-05-01', address: 'Shanghai' },
    { id: 10004, name: 'Test4', role: 'Designer', sex: 'Man', age: 32, date: '2025-01-01', address: 'test abc' },
    { id: 10005, name: 'Test5', role: 'Develop', sex: 'Man', age: 30, date: '2025-01-01', address: 'Shanghai' },
    { id: 10006, name: 'Test6', role: 'Designer', sex: 'Man', age: 30, date: '2025-03-01', address: 'test abc' },
    { id: 10007, name: 'Test7', role: 'Test', sex: 'Woman', age: 29, date: '2025-05-01', address: 'test abc' },
    { id: 10008, name: 'Test8', role: 'PM', sex: 'Woman', age: 35, date: '2025-11-01', address: 'test abc' },
    { id: 10009, name: 'Test9', role: 'Test', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
    { id: 10010, name: 'Test10', role: 'PM', sex: 'Woman', age: 28, date: '2025-03-01', address: 'test abc' },
    { id: 10011, name: 'Test11', role: 'Test', sex: 'Woman', age: 29, date: '2025-03-01', address: 'test abc' },
    { id: 10012, name: 'Test12', role: 'Develop', sex: 'Man', age: 37, date: '2025-10-01', address: 'test abc' },
    { id: 10013, name: 'Test13', role: 'Test', sex: 'Woman', age: 24, date: '2025-02-01', address: 'test abc' },
    { id: 10014, name: 'Test14', role: 'Develop', sex: 'Man', age: 34, date: '2025-08-01', address: 'test abc' },
    { id: 10015, name: 'Test15', role: 'Designer', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
    { id: 10016, name: 'Test16', role: 'Designer', sex: 'Woman', age: 21, date: '2025-10-01', address: 'test abc' },
    { id: 10017, name: 'Test17', role: 'Test', sex: 'Man', age: 31, date: '2025-12-01', address: 'test abc' },
    { id: 10018, name: 'Test18', role: 'Develop', sex: 'Woman', age: 32, date: '2025-10-01', address: 'test abc' },
    { id: 10019, name: 'Test19', role: 'Test', sex: 'Man', age: 37, date: '2025-02-01', address: 'test abc' },
    { id: 10020, name: 'Test20', role: 'Develop', sex: 'Man', age: 41, date: '2025-03-01', address: 'test abc' }
  ]
})
</script>

合并为一组进行展示

说明：通过 aggregate-config.mode=combined 设置将多个分组字段合并为一组进行展示，将所有分组字段合并为“一个分组节点”进行展示，不拆分多个层级。分组节点的标题由所有分组字段的值拼接而成
用场景：不关心多层级的内部结构，只需要把符合某组字段值组合的数据归为一个组即可。

<template>
  <div>
    <vxe-grid v-bind="gridOptions"></vxe-grid>
  </div>
</template>

<script setup>
import { reactive } from 'vue'
const gridOptions = reactive({
  height: 500,
  border: true,
  showOverflow: true,
  aggregateConfig: {
    mode: 'combined',
    groupFields: ['role', 'date']
  },
  columns: [
    { type: 'seq', width: 70 },
    { field: 'name', title: 'Name', minWidth: 300, rowGroupNode: true },
    { field: 'role', title: 'Role' },
    { field: 'date', title: 'Date' },
    { field: 'sex', title: 'Sex' },
    { field: 'age', title: 'Age' },
    { field: 'address', title: 'Address' }
  ],
  data: [
    { id: 10001, name: 'Test1', role: 'Develop', sex: 'Woman', age: 28, date: '2025-02-01', address: 'test abc' },
    { id: 10002, name: 'Test2', role: 'Test', sex: 'Man', age: 22, date: '2025-01-01', address: 'Guangzhou' },
    { id: 10003, name: 'Test3', role: 'PM', sex: 'Woman', age: 32, date: '2025-05-01', address: 'Shanghai' },
    { id: 10004, name: 'Test4', role: 'Designer', sex: 'Man', age: 32, date: '2025-01-01', address: 'test abc' },
    { id: 10005, name: 'Test5', role: 'Develop', sex: 'Man', age: 30, date: '2025-01-01', address: 'Shanghai' },
    { id: 10006, name: 'Test6', role: 'Designer', sex: 'Man', age: 30, date: '2025-03-01', address: 'test abc' },
    { id: 10007, name: 'Test7', role: 'Test', sex: 'Woman', age: 29, date: '2025-05-01', address: 'test abc' },
    { id: 10008, name: 'Test8', role: 'PM', sex: 'Woman', age: 35, date: '2025-11-01', address: 'test abc' },
    { id: 10009, name: 'Test9', role: 'Test', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
    { id: 10010, name: 'Test10', role: 'PM', sex: 'Woman', age: 28, date: '2025-03-01', address: 'test abc' },
    { id: 10011, name: 'Test11', role: 'Test', sex: 'Woman', age: 29, date: '2025-03-01', address: 'test abc' },
    { id: 10012, name: 'Test12', role: 'Develop', sex: 'Man', age: 37, date: '2025-10-01', address: 'test abc' },
    { id: 10013, name: 'Test13', role: 'Test', sex: 'Woman', age: 24, date: '2025-02-01', address: 'test abc' },
    { id: 10014, name: 'Test14', role: 'Develop', sex: 'Man', age: 34, date: '2025-08-01', address: 'test abc' },
    { id: 10015, name: 'Test15', role: 'Designer', sex: 'Man', age: 21, date: '2025-05-01', address: 'test abc' },
    { id: 10016, name: 'Test16', role: 'Designer', sex: 'Woman', age: 21, date: '2025-10-01', address: 'test abc' },
    { id: 10017, name: 'Test17', role: 'Test', sex: 'Man', age: 31, date: '2025-12-01', address: 'test abc' },
    { id: 10018, name: 'Test18', role: 'Develop', sex: 'Woman', age: 32, date: '2025-10-01', address: 'test abc' },
    { id: 10019, name: 'Test19', role: 'Test', sex: 'Man', age: 37, date: '2025-02-01', address: 'test abc' },
    { id: 10020, name: 'Test20', role: 'Develop', sex: 'Man', age: 41, date: '2025-03-01', address: 'test abc' }
  ]
})
</script>

模式对比一览

模式	mode 值	层级展示位置	是否需要 rowGroupNode	典型效果
指定列层级	‘default’	固定在某列（如 name 列）	是	分组缩进集中在单一列，其他分组字段平铺
按列位置层级	‘column’	分别在各个分组字段列	否	每个分组字段列独立展示自己的层级
合并展示	‘combined’	固定在某列，但分组节点合并	是	所有分组字段值拼接成一个节点，无嵌套
