Three.js中实现流动的管线效果的全过程

2025-09-06 09:48:55 作者：阿琰a_

最近使用threejs开发项目, 碰到需要在模型的管道上画出流动效果,下面这篇文章主要介绍了Three.js中实现流动的管线效果的相关资料,文中通过代码介绍的非常详细,需要的朋友可以参考下

最近在跟第三方对接工业流程的模型，发现建模的管线还挺好看的，给材质加上一个偏移，就会出现一直流动的效果，于是在想可不可以使用Three.js画出同等效果的管线。

整体的实现思路是先绘制管线模型，然后在模型上添加一个动态的着色器材质，实现管线流动效果。

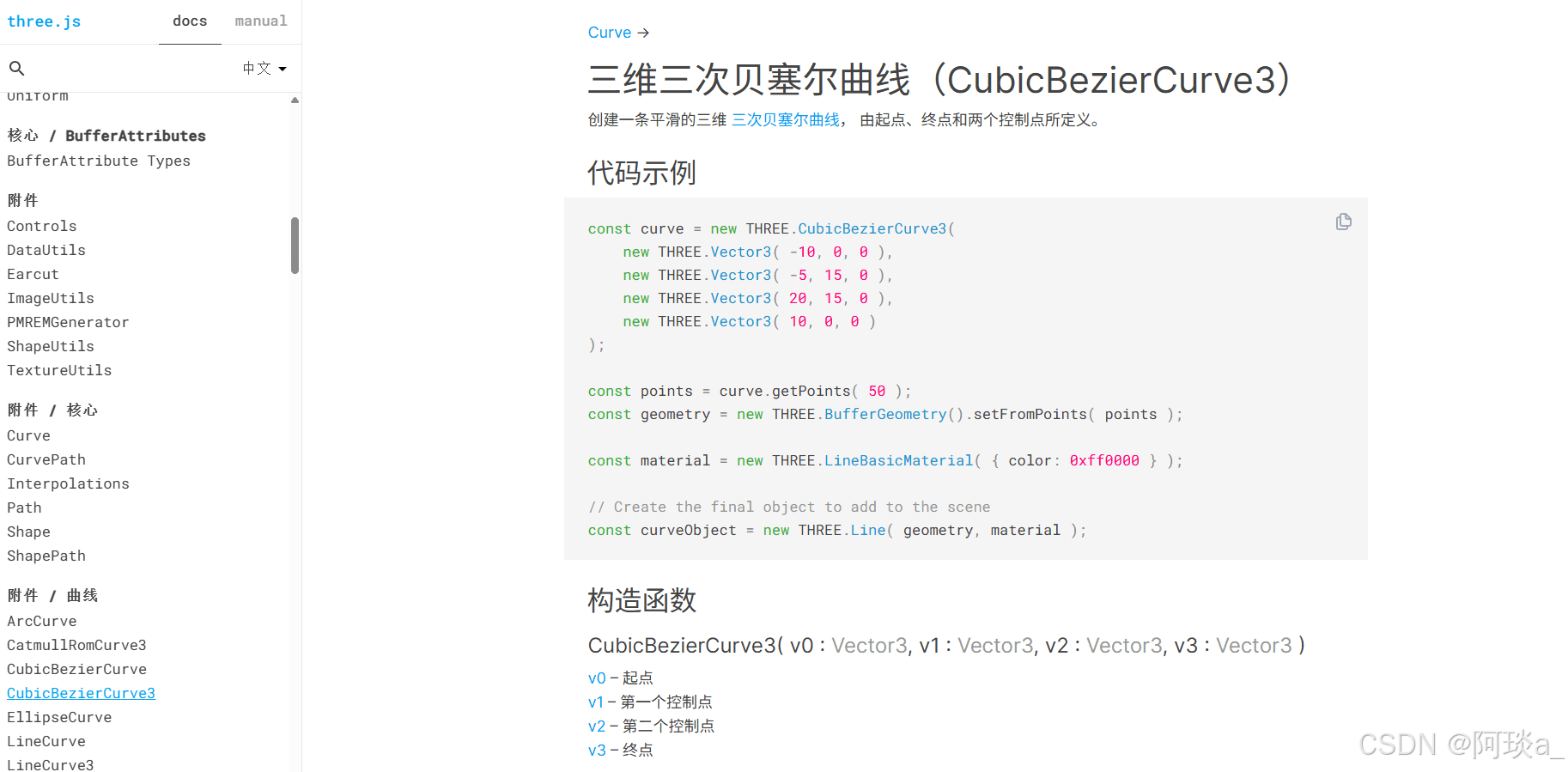

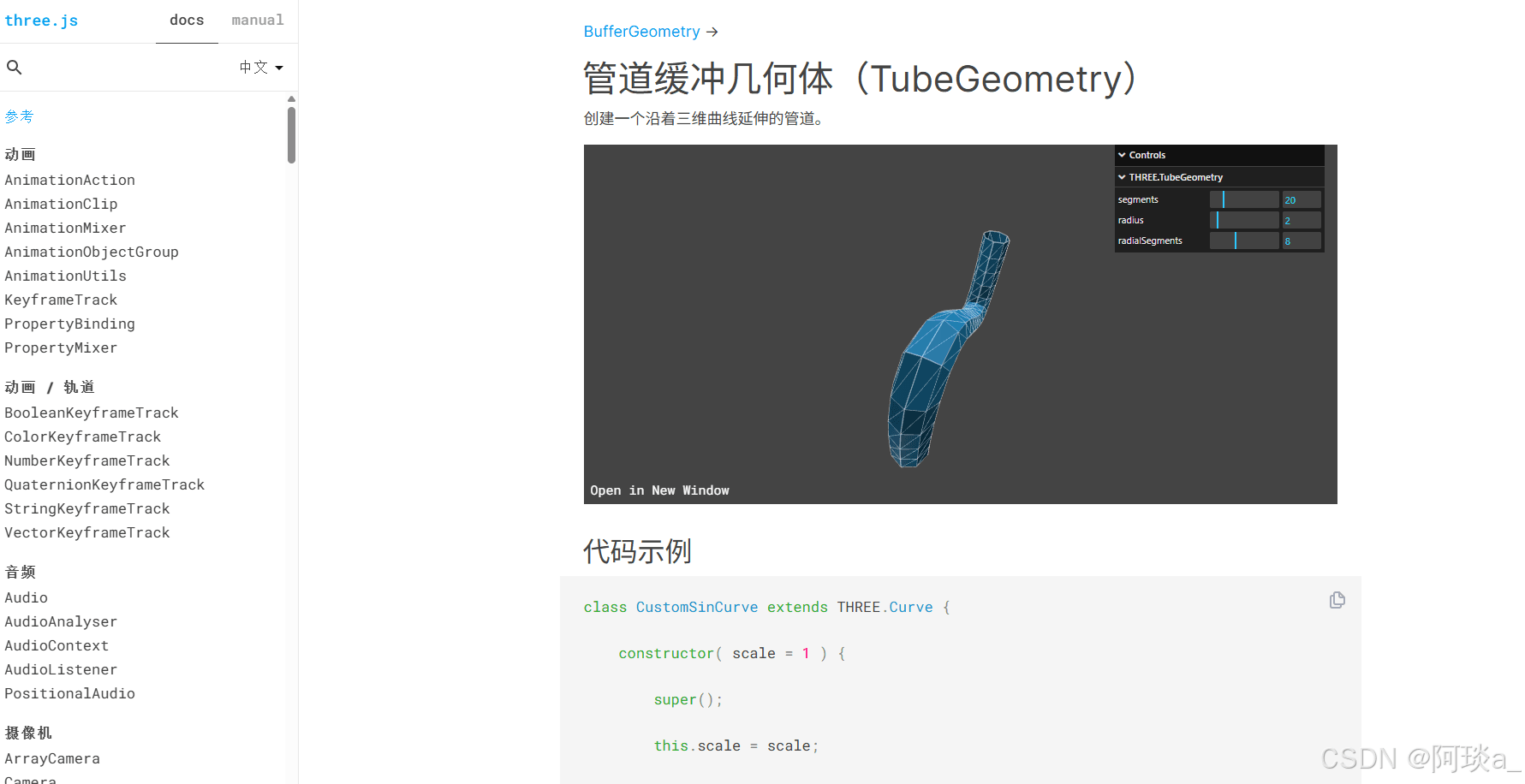

首先我想通过使用CatmullRomCurve3和TubeGeometry这俩个类API去创建平滑的 3D 样条曲线。

代码如下

/**
 * 绘制管线
 * @param THREE
 * @param scene
 * @param points
 */
function createPipeLine(THREE, scene ,points) {
  const cps = points.map(item=>{
    return new THREE.Vector3(...item)
  })
  console.log(cps,'cps')
  const curve = new THREE.CatmullRomCurve3(cps)

  let geometry = new THREE.TubeGeometry(curve, 100, 10, 32)
  const material = new THREE.MeshLambertMaterial({
    color: '#19bbd5',
    side: THREE.DoubleSide,
  })

  let length = curve.getLength()
  let uniforms = {
    totalLength: { value: length },
    stripeOffset: { value: 0 },        // 条纹偏移量
    stripeWidth: { value: 100 },       // 条纹宽度 (归一化值)
    stripeSpacing: { value: 100 },     // 条纹间距 (归一化值)
    stripeColor: { value: new THREE.Color('#096be3') }, // 条纹颜色
    speedFactor: { value: 50 },
  };

  material.onBeforeCompile = shader => {
    shader.uniforms.totalLength = uniforms.totalLength;
    shader.uniforms.stripeOffset = uniforms.stripeOffset;
    shader.uniforms.stripeWidth = uniforms.stripeWidth;
    shader.uniforms.stripeSpacing = uniforms.stripeSpacing;
    shader.uniforms.stripeColor = uniforms.stripeColor;

    shader.fragmentShader = `
        uniform float totalLength;
        uniform float stripeOffset;
        uniform float stripeWidth;
        uniform float stripeSpacing;
        uniform vec3 stripeColor;

        ${shader.fragmentShader}
        `.replace(
        `#include <color_fragment>`,
        `#include <color_fragment>

        // 计算条纹模式
        float pattern = mod((vUv.x - stripeOffset) * totalLength / (stripeWidth + stripeSpacing), 1.0);
        float isStripe = step(pattern, stripeWidth / (stripeWidth + stripeSpacing));

        // 平滑边缘
        float edge = fwidth(vUv.x) * 2.0;
        float smoothFactor = smoothstep(0.0, edge, abs(pattern - 0.5 * stripeWidth));

        // 混合颜色
        diffuseColor.rgb = mix(diffuseColor.rgb, stripeColor, isStripe * smoothFactor);
      `
    )
  }

  material.defines = { 'USE_UV': "" }
  let mesh = new THREE.Mesh(geometry, material);
  scene.add(mesh);

  let clock = new THREE.Clock()
  function animation() {
    const delta = clock.getDelta();

    // 计算归一化的流动速度 (速度系数 / 管线长度)
    const normalizedSpeed = uniforms.speedFactor.value / uniforms.totalLength.value*10;

    // 更新条纹偏移量
    uniforms.stripeOffset.value += delta * normalizedSpeed;

    // 重置偏移量以保持循环
    uniforms.stripeOffset.value = uniforms.stripeOffset.value % 1.0;

    requestAnimationFrame(animation)
  }
  animation()
}

const points = [[-1137,70,2850],[694,70,2810],[684,70,1550]]
createPipeLine(THREE,scene,points)

因为我加载了一个模型地板比较大，所以我把管线相关的参数设置的也比较大。

实现效果如下：

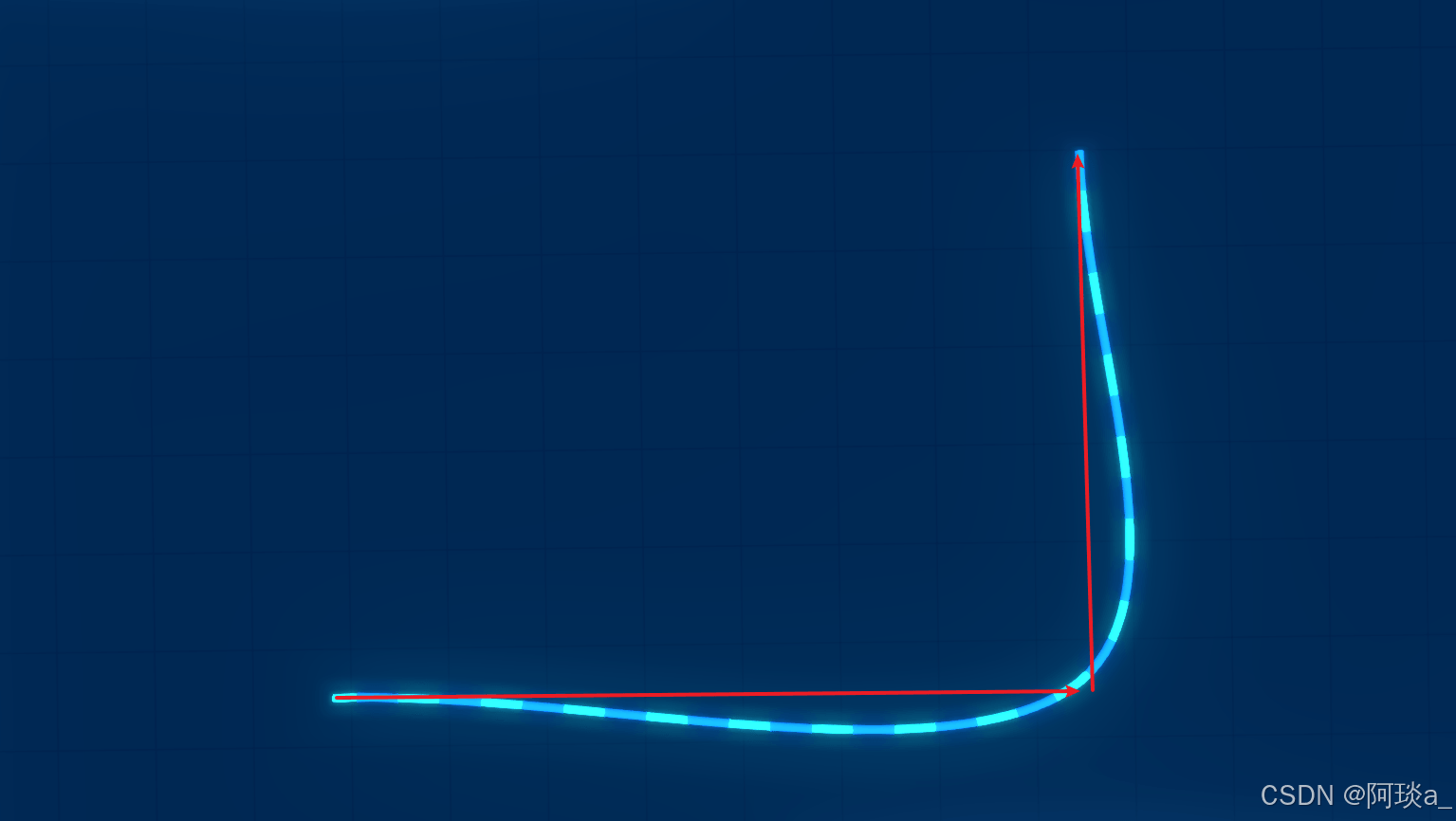

其实没有达到我的预期，我想的是如下箭头效果，但这个曲线它自动偏移圆滑了一些。

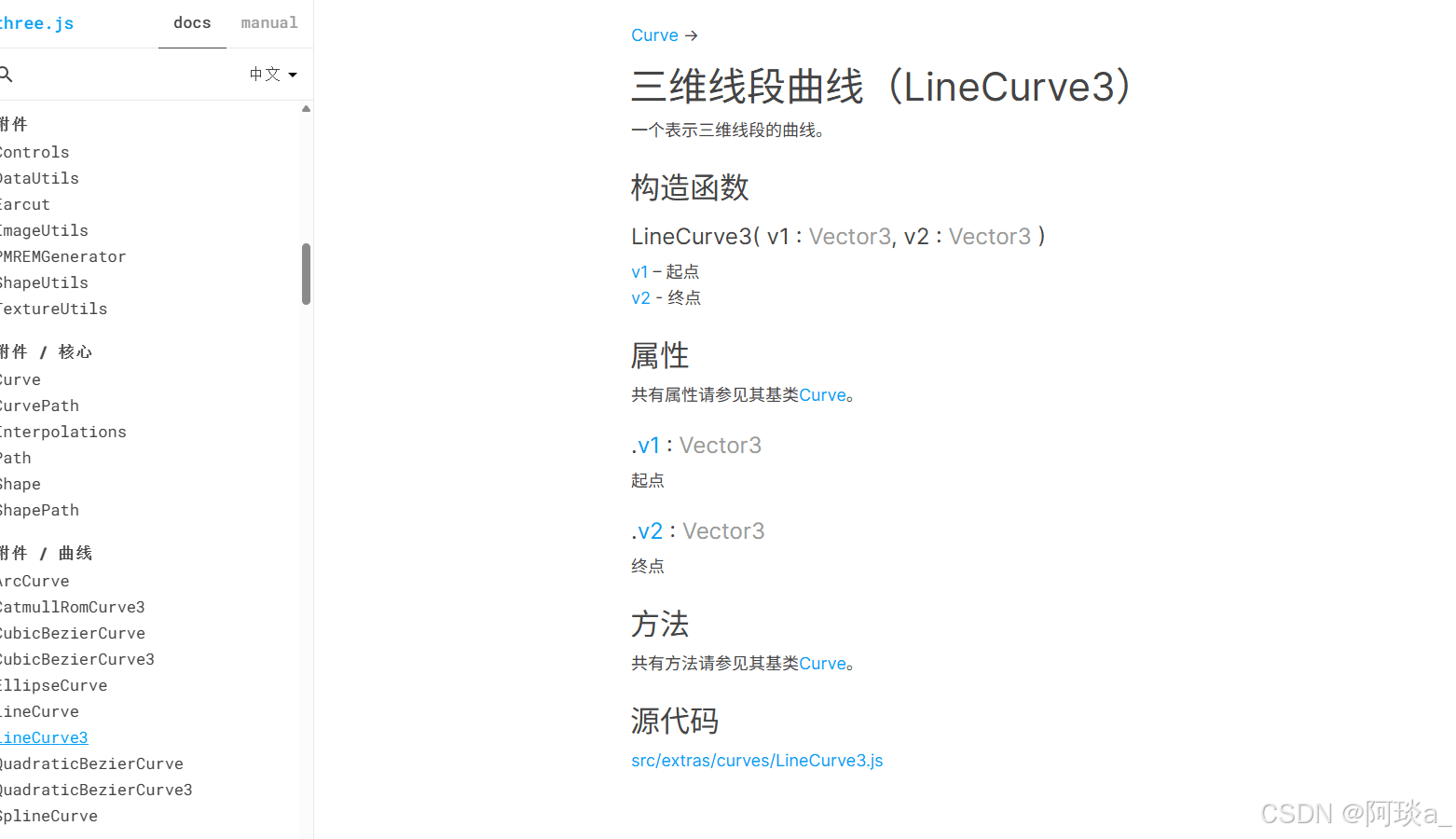

于是我换一个曲线API，使用LineCurve3去实现管线。

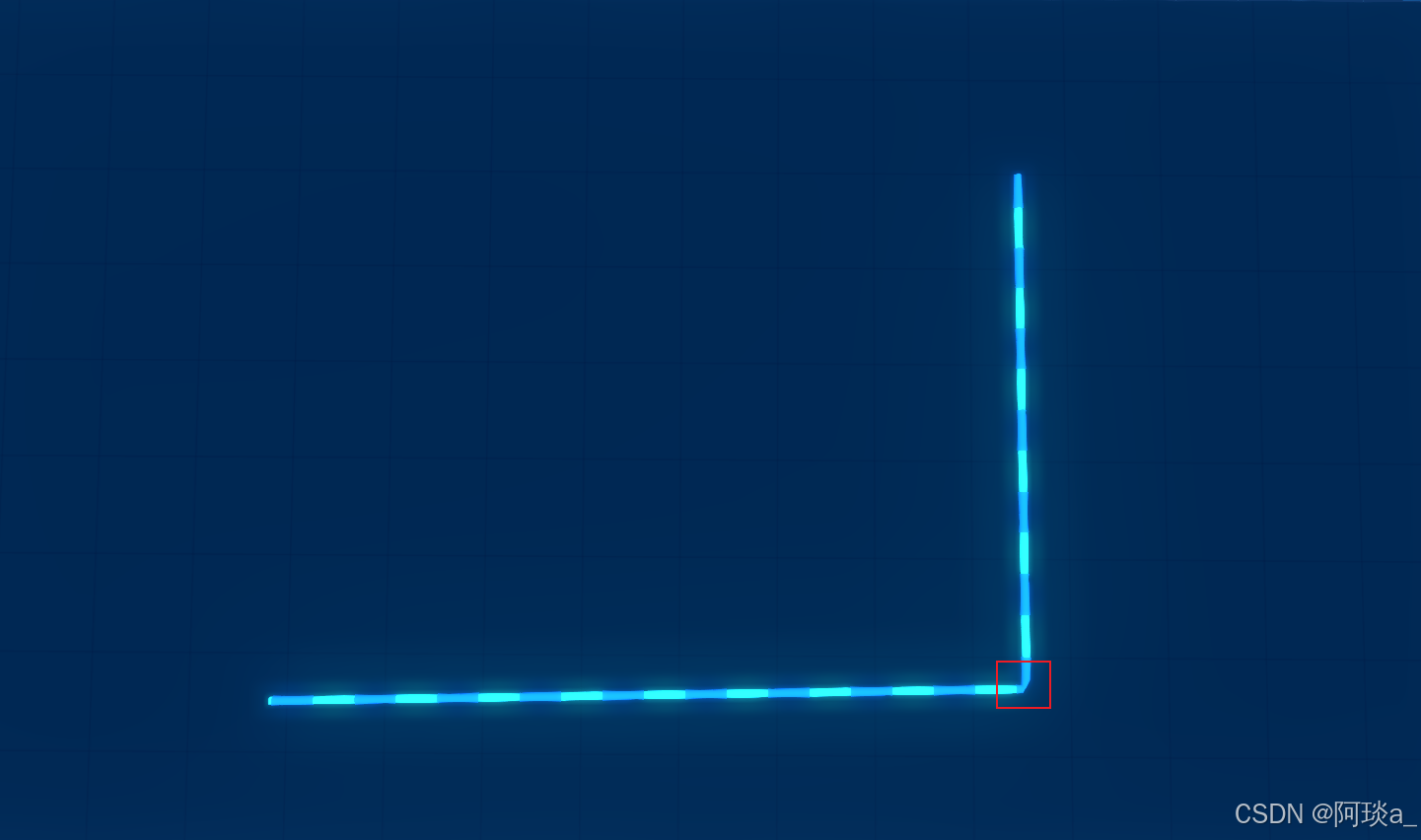

效果如下，管线画出来了，但是拐角又不是很好看。解决办法就是把拐角的点设置多一些，就看起来比较圆滑了。

拐角点设置多后的效果

代码如下

/**
 * 绘制管线
 * @param THREE
 * @param scene
 * @param points
 */
function createPipeLine(THREE, scene ,points) {
  const cps = points.map(item=>{
    return new THREE.Vector3(...item)
  })
  console.log(cps,'cpscps')
  const curve = new THREE.CurvePath();
  for (let i = 0; i < cps.length - 1; i++) {
    // 每两个点之间形成一条三维直线
    const lineCurve = new THREE.LineCurve3(cps[i], cps[i + 1]);
    // curvePath有一个curves属性，里面存放组成该三维路径的各个子路径
    curve.curves.push(lineCurve);
  }

  let geometry = new THREE.TubeGeometry(curve, 100, 10, 32)
  const material = new THREE.MeshLambertMaterial({
    color: '#19bbd5',
    side: THREE.DoubleSide,
  })

  let length = curve.getLength()
  let uniforms = {
    totalLength: { value: length },
    stripeOffset: { value: 0 },        // 条纹偏移量
    stripeWidth: { value: 100 },       // 条纹宽度 (归一化值)
    stripeSpacing: { value: 100 },     // 条纹间距 (归一化值)
    stripeColor: { value: new THREE.Color('#096be3') }, // 条纹颜色
    speedFactor: { value: 50 },
  };

  material.onBeforeCompile = shader => {
    shader.uniforms.totalLength = uniforms.totalLength;
    shader.uniforms.stripeOffset = uniforms.stripeOffset;
    shader.uniforms.stripeWidth = uniforms.stripeWidth;
    shader.uniforms.stripeSpacing = uniforms.stripeSpacing;
    shader.uniforms.stripeColor = uniforms.stripeColor;

    shader.fragmentShader = `
        uniform float totalLength;
        uniform float stripeOffset;
        uniform float stripeWidth;
        uniform float stripeSpacing;
        uniform vec3 stripeColor;

        ${shader.fragmentShader}
        `.replace(
        `#include <color_fragment>`,
        `#include <color_fragment>

        // 计算条纹模式
        float pattern = mod((vUv.x - stripeOffset) * totalLength / (stripeWidth + stripeSpacing), 1.0);
        float isStripe = step(pattern, stripeWidth / (stripeWidth + stripeSpacing));

        // 平滑边缘
        float edge = fwidth(vUv.x) * 2.0;
        float smoothFactor = smoothstep(0.0, edge, abs(pattern - 0.5 * stripeWidth));

        // 混合颜色
        diffuseColor.rgb = mix(diffuseColor.rgb, stripeColor, isStripe * smoothFactor);
      `
    )
  }

  material.defines = { 'USE_UV': "" }
  let mesh = new THREE.Mesh(geometry, material);
  scene.add(mesh);

  let clock = new THREE.Clock()
  function animation() {
    const delta = clock.getDelta();

    // 计算归一化的流动速度 (速度系数 / 管线长度)
    const normalizedSpeed = uniforms.speedFactor.value / uniforms.totalLength.value*10;

    // 更新条纹偏移量
    uniforms.stripeOffset.value += delta * normalizedSpeed;

    // 重置偏移量以保持循环
    uniforms.stripeOffset.value = uniforms.stripeOffset.value % 1.0;

    requestAnimationFrame(animation)
  }
  animation()
}

const points = [[-1137,70,2850],[654, 70, 2850], [664, 70, 2840], [674, 70, 2830],[684,70,2820],[694,70,2810],[684,70,1550]]

createPipeLine(THREE,scene,points)

上面的方案能实现流动的管线，但是拐角的点位很难处理，还是打算再换一种方案。

最终方案：直线使用LineCurve3+拐角曲线CatmullRomCurve3组合使用。

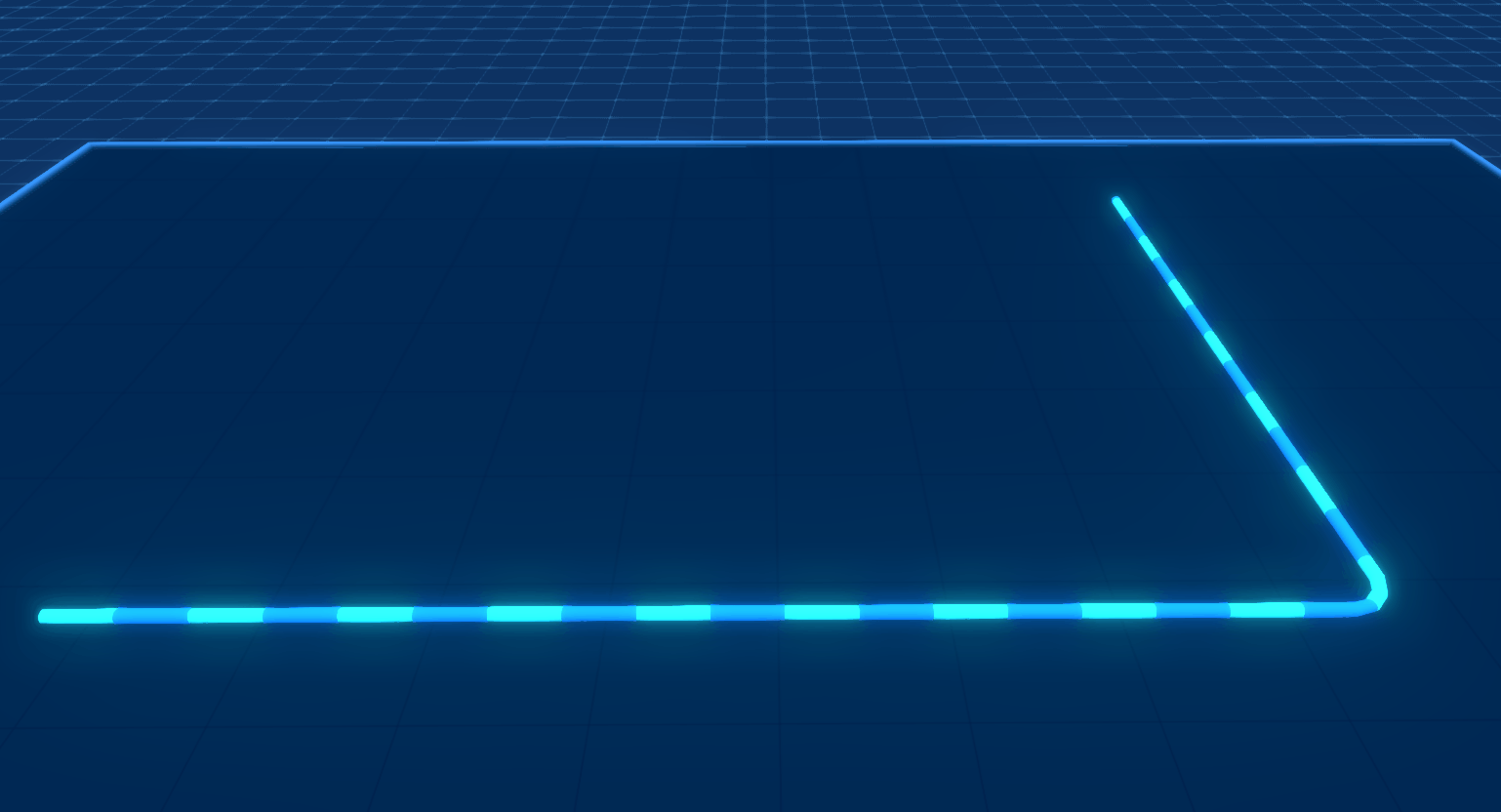

效果如下

源代码

/**
 * 绘制管线
 * @param THREE
 * @param scene
 * @param points
 */
function createPipeLine(THREE, scene ,points) {
  if(points.length<=1){
    return false
  }
  const curvePath = new THREE.CurvePath();
  let prevPoint = null; // 用于记录上一个点

  // 遍历点数组
  for (let i = 0; i < points.length; i++) {
    const current = points[i];

    // 处理普通点（一维数组）
    if (Array.isArray(current) && current.length === 3 && typeof current[0] === 'number') {
      const point = new THREE.Vector3(...current);

      if (prevPoint === null) {
        // 第一个点，只记录不创建曲线
        prevPoint = point;
      } else {
        // 创建直线连接到当前点
        curvePath.add(new THREE.LineCurve3(prevPoint, point));
        prevPoint = point;
      }
    }
    // 处理拐角点（二维数组）
    else if (Array.isArray(current) && current.length >= 3) {
      // 将拐角点数组转换为Vector3
      const curvePoints = current.map(p => new THREE.Vector3(...p));

      // 确保与上一个点连接
      if (prevPoint !== null) {
        // 检查拐角曲线的起点是否与上一个点相同
        if (!prevPoint.equals(curvePoints[0])) {
          // 如果不相同，添加一条连接线
          curvePath.add(new THREE.LineCurve3(prevPoint, curvePoints[0]));
        }
      }

      // 创建CatmullRom曲线
      const cornerCurve = new THREE.CatmullRomCurve3(curvePoints);
      curvePath.add(cornerCurve);

      // 更新上一个点为拐角曲线的最后一个点
      prevPoint = curvePoints[curvePoints.length - 1];
    } else {
      console.warn('无效的点格式:', current);
    }
  }

// 创建管道几何体
  const segments = Math.max(100, Math.floor(curvePath.getLength() / 20));
  const geometry = new THREE.TubeGeometry(
      curvePath,
      segments, // 动态计算分段数
      10,      // 管道半径
      16,      // 径向分段数
      false    // 是否闭合
  );
  const material = new THREE.MeshLambertMaterial({
    color: '#19bbd5',
    side: THREE.DoubleSide,
  })

  let length = curvePath.getLength()
  let uniforms = {
    totalLength: { value: length },
    stripeOffset: { value: 0 },        // 条纹偏移量
    stripeWidth: { value: 100 },       // 条纹宽度 (归一化值)
    stripeSpacing: { value: 100 },     // 条纹间距 (归一化值)
    stripeColor: { value: new THREE.Color('#096be3') }, // 条纹颜色
    speedFactor: { value: 50 },
  };

  material.onBeforeCompile = shader => {
    shader.uniforms.totalLength = uniforms.totalLength;
    shader.uniforms.stripeOffset = uniforms.stripeOffset;
    shader.uniforms.stripeWidth = uniforms.stripeWidth;
    shader.uniforms.stripeSpacing = uniforms.stripeSpacing;
    shader.uniforms.stripeColor = uniforms.stripeColor;

    shader.fragmentShader = `
        uniform float totalLength;
        uniform float stripeOffset;
        uniform float stripeWidth;
        uniform float stripeSpacing;
        uniform vec3 stripeColor;

        ${shader.fragmentShader}
        `.replace(
        `#include <color_fragment>`,
        `#include <color_fragment>

        // 计算条纹模式
        float pattern = mod((vUv.x - stripeOffset) * totalLength / (stripeWidth + stripeSpacing), 1.0);
        float isStripe = step(pattern, stripeWidth / (stripeWidth + stripeSpacing));

        // 平滑边缘
        float edge = fwidth(vUv.x) * 2.0;
        float smoothFactor = smoothstep(0.0, edge, abs(pattern - 0.5 * stripeWidth));

        // 混合颜色
        diffuseColor.rgb = mix(diffuseColor.rgb, stripeColor, isStripe * smoothFactor);
      `
    )
  }

  material.defines = { 'USE_UV': "" }
  let mesh = new THREE.Mesh(geometry, material);
  scene.add(mesh);

  let clock = new THREE.Clock()
  function animation() {
    const delta = clock.getDelta();

    // 计算归一化的流动速度 (速度系数 / 管线长度)
    const normalizedSpeed = uniforms.speedFactor.value / uniforms.totalLength.value*10;

    // 更新条纹偏移量
    uniforms.stripeOffset.value += delta * normalizedSpeed;

    // 重置偏移量以保持循环
    uniforms.stripeOffset.value = uniforms.stripeOffset.value % 1.0;

    requestAnimationFrame(animation)
  }
  animation()
}

const points = [
        [-1137,70,2850],
        [440,70,2850],
        [[470,70,2838],[480,70,2825],[490,70,2812]],//拐角点二维数组且至少三个点
        [500,70,2800],
        [500,70,1850]
    ]

createPipeLine(THREE,scene,points)

总结
