MySQL8 主从同步容器化部署

作者：痕迹-运维

本章主要讲解通过Docker容器化部署的方式实现MySQL的主从运行模式,默认双节点都安装了Docker、docker-compose,需要的朋友们下面随着小编来一起学习学习吧

一、引言

本章主要讲解通过Docker容器化部署的方式实现MySQL的主从运行模式（一主一从）。默认双节点都安装了Docker、docker-compose。

详解

1、示例环境

主节点从节点主从架构
192.168.25.130192.168.25.131主从同步；异步模式

2、主节点安装MySQL

1）创建目录

>> mkdir -p /opt/software/mysql8/{conf,logs,init,secrets} /data/mysql8/{data,backup}
>> cd /opt/software/mysql8

2）创建docker-compose.yml文件

>> vim docker-compose.yml  # 内容如下，复制粘贴即可
---
# 定义密钥
secrets:
  passwd_root:
    file: ./secrets/passwd_root.txt
  passwd_sync:
    file: ./secrets/passwd_sync.txt
services:
  mysql8:
    container_name: mysql-master
    image: mysql:8.0.45
    user: root
    restart: unless-stopped
    privileged: true
    ports:
      - 30096:3306
    volumes:
      - /data/mysql8/data:/var/lib/mysql  # 数据目录挂载
      - ./conf/my.cnf:/etc/my.cnf:ro # 配置文件只读挂载（不允许容器内对其写操作）
      - ./logs:/var/log/mysql
      - ./init/:/docker-entrypoint-initdb.d/:ro
      - /etc/localtime:/etc/localtime
    secrets:  # 挂载secrets; 默认挂载至容器内的 /run/secrets/ 路径
      - passwd_root
      - passwd_sync
    environment:
      TZ: Asia/Shanghai
      MYSQL_ROOT_PASSWORD_FILE: "/run/secrets/passwd_root"
      MYSQL_USER_PASSWORD_FILE: "/run/secrets/passwd_sync"
    healthcheck:
      test: ["CMD-SHELL", "MYSQL_PWD=\"$$(cat /run/secrets/passwd_root)\" mysql -h 127.0.0.1 -uroot --protocol=TCP -e 'SELECT 1' >/dev/null 2>&1 || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 5
      start_period: 60s
...

3）创建配置文件

>> vim ./conf/my.cnf  # 内容如下，复制粘贴即可
[client]
default-character-set = utf8mb4
socket = /var/lib/mysql/mysql.sock
[mysql]
default-character-set = utf8mb4
[mysqld]
server-id = 1
user = mysql
autocommit = 1
datadir = /var/lib/mysql
socket = /var/lib/mysql/mysql.sock
pid-file = /var/log/mysql/mysqld.pid
log-error = /var/log/mysql/mysqld.log
symbolic-links = 0
character-set-server=utf8mb4
# binlog
log-bin = master-bin
# 指定哪些库表不进行同步
replicate-wild-ignore-table = information_schema.%
# 字段变化增量值
auto_increment_increment = 2
# 初始字段ID
auto_increment_offset = 1
# 忽略所有复制产生的错误
slave-skip-errors = all
binlog_cache_size=16M
binlog_format=ROW
binlog_row_image=FULL
max_binlog_cache_size=1GB
# 设置单个 binlog 文件的最大大小
max_binlog_size = 300M
# binlog日志保留时间，单位秒，30天
binlog_expire_logs_seconds=2592000
ft_min_word_len=4
connect_timeout=600
interactive_timeout=1800
wait_timeout=600
# 启用GTID
gtid_mode = ON
enforce_gtid_consistency = ON
group_concat_max_len = 102400
lower-case-table_names=1
character-set-server=utf8mb4
collation-server=utf8mb4_general_ci
default-storage-engine=innodb
# 密码认证插件
default_authentication_plugin=mysql_native_password
default-time-zone = '+08:00'
slow_query_log=1
#输出死锁
innodb_print_all_deadlocks=1
long_query_time=10
max_connections=4096
max_connect_errors=1024
max_allowed_packet=64M
back_log=512
interactive_timeout=3600
sort_buffer_size=2M
join_buffer_size=2M
read_buffer_size=2M
read_rnd_buffer_size=2M
thread_cache_size=256
table_open_cache=10000
max_heap_table_size=64M
tmp_table_size=64M
thread_stack=192KB
local_infile=0
skip-name-resolve
skip-external-locking
# innodb
innodb_buffer_pool_size=2048M
#ibdata1的数据设置应该和本地ibdata1大小的一致
innodb_data_file_path=ibdata1:1G;ibdata2:1G:autoextend
innodb_temp_data_file_path=ibtmp1:12M:autoextend:max:5G
innodb_read_io_threads=8
innodb_write_io_threads=8
innodb_file_per_table=1
#将InnoDB的日志刷新方式调整为O_DIRECT，可以减少数据在缓存和磁盘之间的复制
innodb_flush_method=O_DIRECT
#将InnoDB的日志刷新策略调整为每秒刷新，可以提高性能
innodb_flush_log_at_trx_commit=2
innodb_lock_wait_timeout=120
innodb_thread_concurrency=16
innodb_log_buffer_size=8M
#将InnoDB日志文件大小调整为256M，可以减少写入磁盘的次数，提高性能
innodb_log_file_size=256M
innodb_redo_log_capacity=268435456
innodb_buffer_pool_size=4G
innodb_log_files_in_group=3
innodb_max_dirty_pages_pct=90
innodb_open_files=10000
skip_replica_start
log_replica_updates
sql_mode="NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO"
relay-log=relay.log
relay-log-index=slave-relay.index
log_bin_trust_function_creators = 1

4）创建初始化需要的文件

# 创建密码文件
>> echo "super@ADMIN_2026" > ./secrets/passwd_root.txt  # root密码
>> echo "sync@ADMIN_2026" > ./secrets/passwd_sync.txt  # 主从同步用户密码
>> vim ./init/init.sh  # 可根据需要修改
#! /bin/bash

set -euo pipefail
SYNC_PASSWORD="$(cat "$MYSQL_USER_PASSWORD_FILE")"

# 执行指定SQL，可自定义；这里只用于创建用户
mysql -uroot -p"$MYSQL_ROOT_PASSWORD" << EOF
create user sync@'%' identified with mysql_native_password by "${SYNC_PASSWORD}";
grant replication slave on *.* to sync@'%';
flush privileges;
set global max_connect_errors=1000;
EOF

5）启动主节点MySQL

# 授权
>> chmod -R 755 /data/mysql8 /opt/software/mysql8; chmod +x ./init/*.sh; chmod 644 secrets/*

# 启动
>> docker-compose up -d
>> docker-compose logs -f  # 启动后，查看日志如下图

3、从节点安装MySQL

1）创建目录

>> mkdir -p /opt/software/mysql8/{conf,logs,init,secrets,scripts} /data/mysql8/data
>> cd /opt/software/mysql8

2）创建docker-compose.yml文件

>> vim docker-compose.yml  # 内容如下，复制粘贴即可

---
---
# 定义密钥
secrets:
  passwd_root:
    file: ./secrets/passwd_root.txt
services:
  mysql8:
    container_name: mysql-slave
    image: mysql:8.0.45
    user: root
    restart: unless-stopped
    privileged: true
    ports:
      - 30096:3306
    volumes:
      - /data/mysql8/data:/var/lib/mysql  # 数据目录挂载
      - ./conf/my.cnf:/etc/my.cnf
      - ./logs:/var/log/mysql
      - ./init/:/docker-entrypoint-initdb.d/:ro
      - /etc/localtime:/etc/localtime
    secrets:  # 挂载secrets; 默认挂载至容器内的 /run/secrets/ 路径
      - passwd_root
    environment:
      TZ: Asia/Shanghai
      MYSQL_ROOT_PASSWORD_FILE: "/run/secrets/passwd_root"
      MYSQL_MASTER_HOST: 192.168.25.130  # MySQL Master节点，根据实际情况修改
      MYSQL_MASTER_PORT: 30096  # MySQL Master节点监听端口
    healthcheck:
      test: ["CMD-SHELL", "MYSQL_PWD=\"$$(cat /run/secrets/passwd_root)\" mysql -h127.0.0.1 -uroot --protocol=TCP -e 'SELECT 1' >/dev/null 2>&1 || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 5
      start_period: 60s
...

3）创建配置文件

>> vim ./conf/my.cnf  # 内容如下，复制粘贴即可
[client]
default-character-set = utf8mb4
socket = /var/lib/mysql/mysql.sock
[mysql]
default-character-set = utf8mb4
[mysqld]
server-id = 2
user = mysql
autocommit = 1
datadir = /var/lib/mysql
socket = /var/lib/mysql/mysql.sock
pid-file = /var/log/mysql/mysqld.pid
log-error = /var/log/mysql/mysqld.log
symbolic-links = 0
character-set-server=utf8mb4
# binlog
log-bin = slave-bin
# 指定哪些库表不进行同步
replicate-wild-ignore-table = information_schema.%
# 字段变化增量值
auto_increment_increment = 2
# 初始字段ID
auto_increment_offset = 1
# 忽略所有复制产生的错误
slave-skip-errors = all
binlog_cache_size=16M
binlog_format=ROW
binlog_row_image=FULL
max_binlog_cache_size=1GB
# 设置单个 binlog 文件的最大大小
max_binlog_size = 300M
# binlog日志保留时间，单位秒，30天
binlog_expire_logs_seconds=2592000
ft_min_word_len=4
connect_timeout=600
interactive_timeout=1800
wait_timeout=600
# 启用GTID
gtid_mode = ON
enforce_gtid_consistency = ON
group_concat_max_len = 102400
lower-case-table_names=1
character-set-server=utf8mb4
collation-server=utf8mb4_general_ci
default-storage-engine=innodb
# 密码认证插件
default_authentication_plugin=mysql_native_password
default-time-zone = '+08:00'
slow_query_log=1
#输出死锁
innodb_print_all_deadlocks=1
long_query_time=10
max_connections=4096
max_connect_errors=1024
max_allowed_packet=64M
back_log=512
interactive_timeout=3600
sort_buffer_size=2M
join_buffer_size=2M
read_buffer_size=2M
read_rnd_buffer_size=2M
thread_cache_size=256
table_open_cache=10000
max_heap_table_size=64M
tmp_table_size=64M
thread_stack=192KB
local_infile=0
skip-name-resolve
skip-external-locking
# innodb
innodb_buffer_pool_size=2048M
#ibdata1的数据设置应该和本地ibdata1大小的一致
innodb_data_file_path=ibdata1:1G;ibdata2:1G:autoextend
innodb_temp_data_file_path=ibtmp1:12M:autoextend:max:5G
innodb_read_io_threads=8
innodb_write_io_threads=8
innodb_file_per_table=1
#将InnoDB的日志刷新方式调整为O_DIRECT，可以减少数据在缓存和磁盘之间的复制
innodb_flush_method=O_DIRECT
#将InnoDB的日志刷新策略调整为每秒刷新，可以提高性能
innodb_flush_log_at_trx_commit=2
innodb_lock_wait_timeout=120
innodb_thread_concurrency=16
innodb_log_buffer_size=8M
#将InnoDB日志文件大小调整为256M，可以减少写入磁盘的次数，提高性能
innodb_log_file_size=256M
innodb_redo_log_capacity=268435456
innodb_buffer_pool_size=4G
innodb_log_files_in_group=3
innodb_max_dirty_pages_pct=90
innodb_open_files=10000
skip_replica_start
log_replica_updates
sql_mode="NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO"
relay-log=relay.log
relay-log-index=slave-relay.index
log_bin_trust_function_creators = 1

4）创建初始化需要的文件

# 创建密码文件
>> echo "super@ADMIN_2026" > ./secrets/passwd_root.txt  # root密码，和主节点一致

>> vim ./init/backup.sh  # 可根据需要修改

#!/bin/bash
set -euo pipefail

# 备份主节点的数据
echo "开始备份主节点数据..."
sleep 5
/usr/bin/mysqldump -h${MYSQL_MASTER_HOST} -P${MYSQL_MASTER_PORT} -uroot -p"${MYSQL_ROOT_PASSWORD}" --all-databases --source-data=2 --single-transaction > /var/lib/mysql/backup.sql

# 导入备份数据
echo "正在导入备份数据..."
sleep 5
/usr/bin/mysql -uroot -p"${MYSQL_ROOT_PASSWORD}"  < /var/lib/mysql/backup.sql

5）启动从节点MySQL

# 授权
>> chmod -R 755 /data/mysql8 /opt/software/mysql8; chmod +x ./init/*.sh; chmod 644 secrets/*
>> docker-compose up -d  # 若要重新执行，则需要先清空data目录

4、配置主从同步

# 创建主从同步SQL脚本
>> cd /opt/software/mysql8
>> vim scripts/replica.sql  # 内容如下，根据实际情况调整

STOP REPLICA;
RESET REPLICA;
CHANGE REPLICATION SOURCE TO SOURCE_HOST = '192.168.25.130',  SOURCE_PORT = 30096, SOURCE_AUTO_POSITION = 1, GET_SOURCE_PUBLIC_KEY = 1, SOURCE_SSL = 1, SOURCE_RETRY_COUNT = 60, SOURCE_CONNECTION_AUTO_FAILOVER = 1, SOURCE_CONNECT_RETRY = 30; START REPLICA USER = 'sync' PASSWORD = 'sync@ADMIN_2026';

# 执行
>> sleep 30; mysql -h192.168.25.131 -P30096 -uroot -p'super@ADMIN_2026' --socket=/data/mysql8/data/mysql.sock < ./scripts/replica.sql

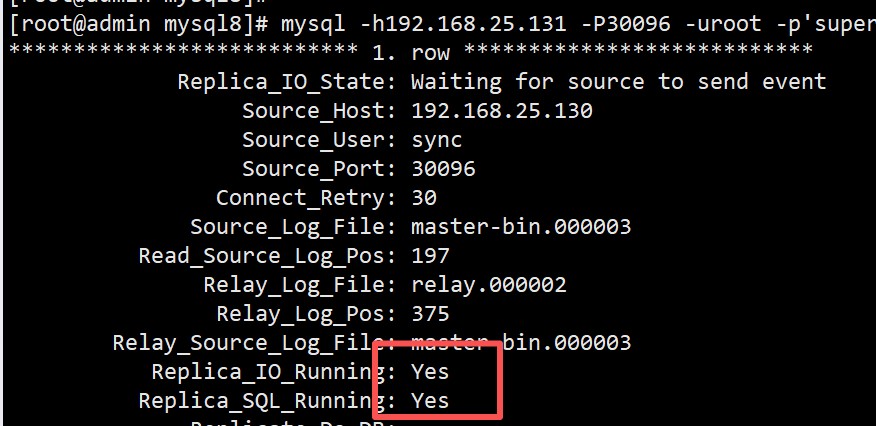

# 验证同步状态
>> mysql -h192.168.25.131 -P30096 -uroot -p'super@ADMIN_2026' --socket=/data/mysql8/data/mysql.sock -e "show replica status\G"

到此，主从同步安装配置完毕,更多相关MySQL8 主从同步部署内容请搜索脚本之家以前的文章或继续浏览下面的相关文章希望大家以后多多支持脚本之家！
